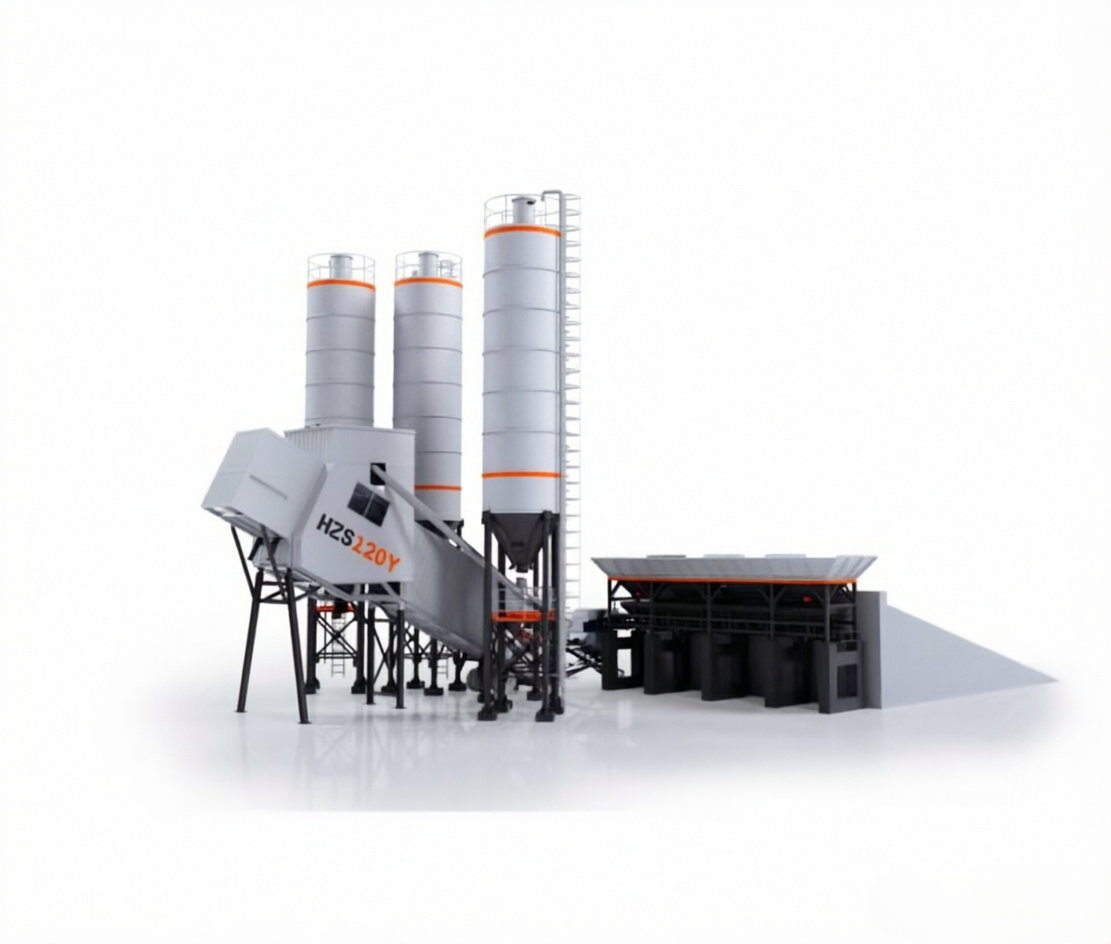

HZSY Series Modular Mobile Concrete Batching Plant

The HZSY Series Modular Mobile Concrete Batching Plant is a newly developed product, evolved from traditional stationary plants by leveraging our extensive manufacturing experience and addressing specific domestic and international market demands.
It integrates material storage, weighing, conveying, mixing, discharging, and a fully automatic control system into a single unit. Characterized by its compact structure, easy transferability, and rapid assembly/disassembly, it is the optimal choice for mobile construction projects such as highways, railways, bridges, ports, and hydropower stations.

Product Parameters

Parameter	Unit	HZS60Y	HZS90Y
Theoretical productivity	㎥/h	120	180
Model of mixer	/	JS2000	JS3000
Power of mixer	kW	2x37	2x55
Recycling period	S	60	60
Transport capacity of conveyor belt	L	700	1000
Max size of aggregate	mm	Φ80	Φ80
Capacity of powder silo	t	4x100	4x150
Batching capacity of he batching station	L	3200	4800
Capacity of aggregate silo	㎥	4x20	4x25
Material discharging height	m	4.2	4.2
Installed power	kW	190	240
Maximum capacity of screw conveyor	t/h	80	80
Aggregate weighing range/accuracy	kg	2000±2%	3000±2%
Cement weighing range/accuracy	kg	1200±1%	1800±1%
Coa powder dosing range/accuracy	kg	600±1%	800±1%
Water dosing range/accuracy	kg	600±1%	800±1%
Addtive dosing range/accuracy	kg	30±1%	50±1%

Product Details

Product Overview　

It integrates material storage, weighing, conveying, mixing, discharging, and a fully automatic control system into a single unit. Characterized by its compact structure, easy transferability, and rapid assembly/disassembly, it is the optimal choice for mobile construction projects such as highways, railways, bridges, ports, and hydropower stations.

Product Characteristics
1. Robust Construction: The main frame and legs are constructed from heavy-duty, large-scale H-beam steel. This ensures exceptional durability with a service life exceeding 10 years.

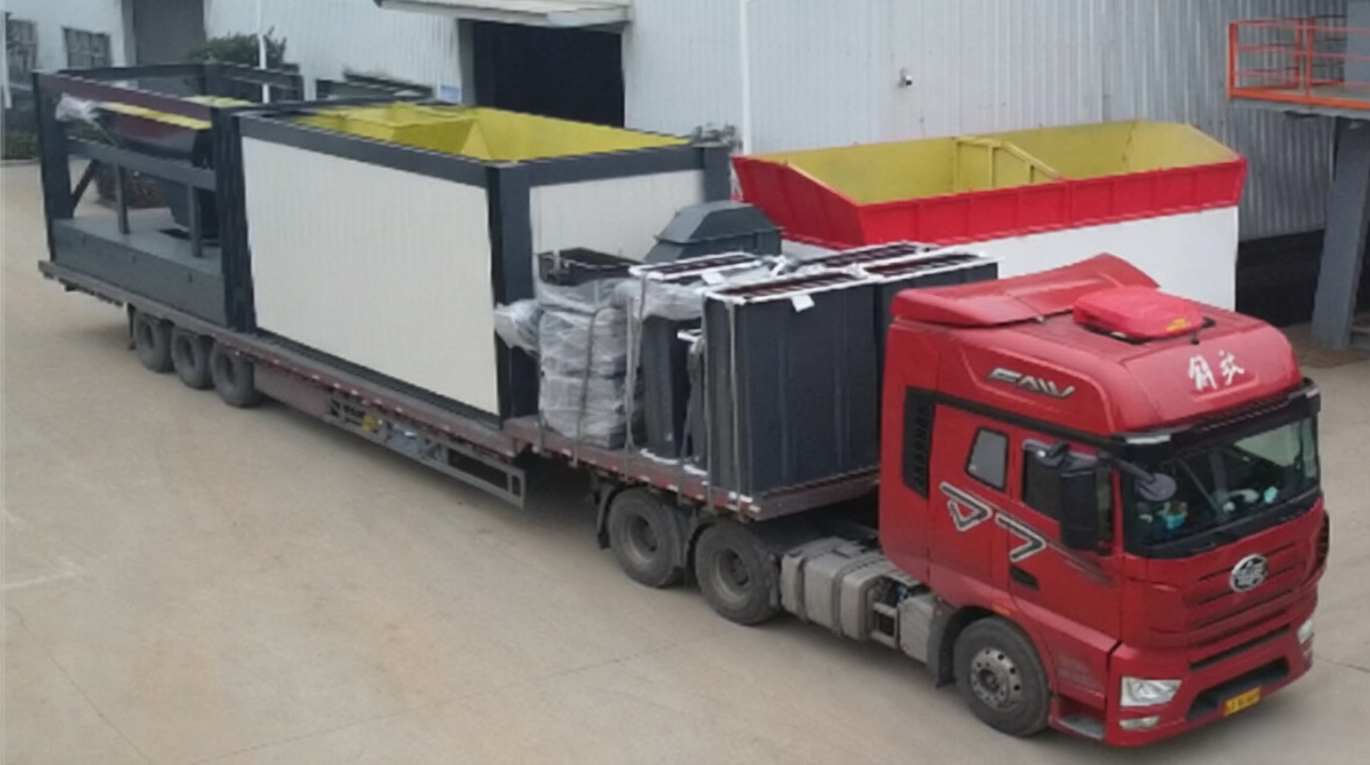

2. Easy Relocation: With the exception of the cement silos and batching machine, the entire main tower can be towed by a single tractor unit. All water, electrical, and pneumatic lines are pre-installed, featuring quick-connect interfaces for immediate external connection.

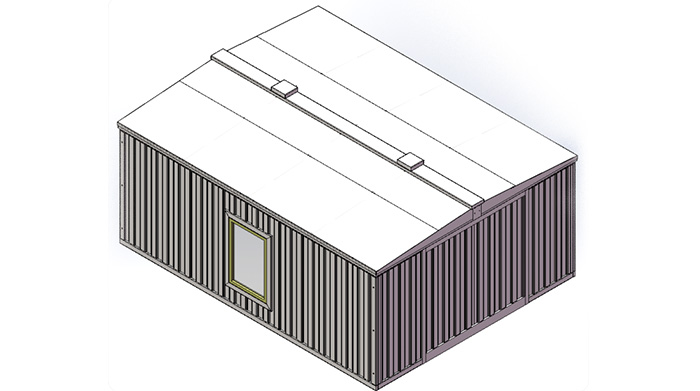

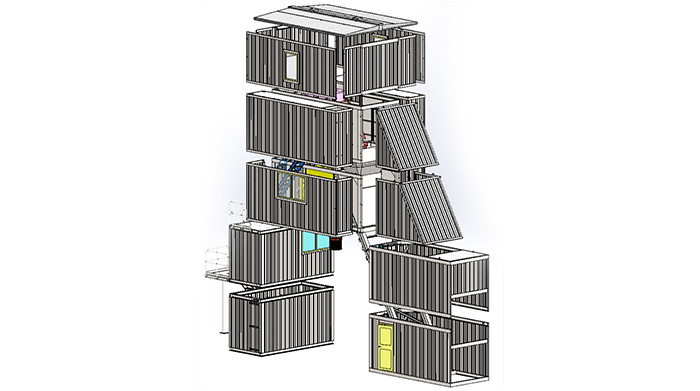

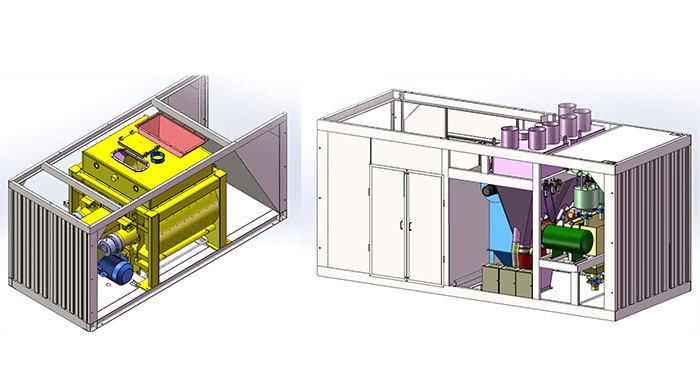

3. Integrated Design: The main tower and inclined belt conveyor are fully integrated into a single unit, enclosed in a container-style housing. The result is a compact structure that is both aesthetically pleasing and functional.
4. Rapid Assembly & Disassembly: Setup is incredibly fast: the entire station (excluding cement silos) takes only 2 days to install, while relocation and re-assembly require just 1 day.
