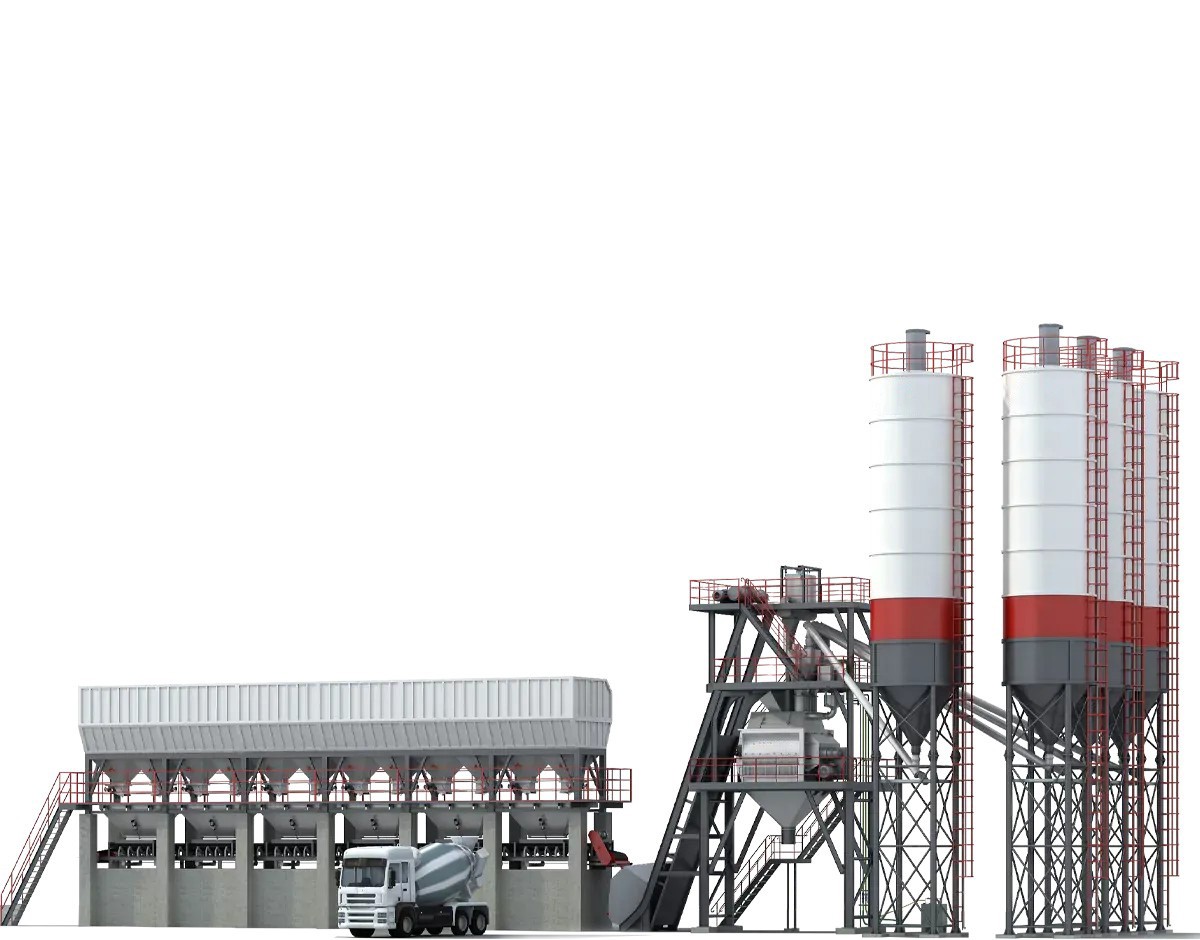

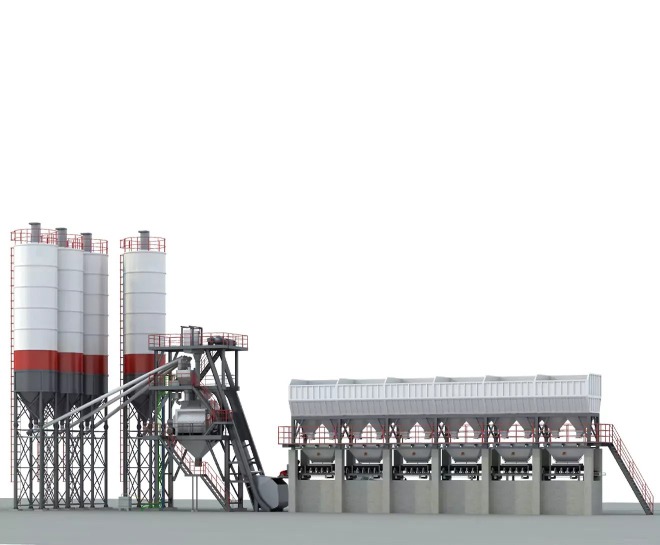

HZS Series Bucket Type Concrete Batching Plant

KLSFA's HZS Series Bucket Type Concrete Batching Plant has many advantages such as simple design, convenient installation, and intensive land use. It is widely used in medium-sized building construction, road and bridge projects, and concrete product prefabrication plants, and is favored by the majority of construction units.

Product Parameters

Parameter	Unit	HZS50T	HZS75T	HZS100T	HZS150T
Theoretical productivity	m³/h	50	60	80	120
Mixer	/	JS1000	JS1500	JS2000	JS3000
Discharge volume	L	1000	1500	2000	3000
Mixer power	kW	22*2	30*2	37*2	55*2
Total power	kW	100	120	155	195

Product Details

Product Overview　

Product Characteristics

1. The equipment occupies a small area and the production is smooth.

2. Modular design, easy installation and relocation.

3. The mixing efficiency of the double spiral mixer is increased by 15%, and the mixing is efficient.

4. Simple design, easy installation, and intensive land use.

Introduction To Original Function Modules
1. Mixer Double spiral type mixer, greatly reducing production cycle, high efficiency and energy saving. The gap between the mixer blade and the liner is within 5mm, and the aggregate gradation is not damaged. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Feeding system Unique design of hopper and track, which can conveniently and efficiently hold and dump aggregates. Save floor space and have strong site adaptability.
3. Mixer anti-splash discharge system The tank truck does not splash or leak when receiving materials, and there is no concrete waste. The unloading time is shortened, and the turnover efficiency of the mixing plant is greatly improved.
