HZS Series Belt Concrete Batching Plant

The HZS Series Concrete Batching Plant is a new type of mixing plant independently developed by Runtianzhike based on the advantages and using experience of various abroad similar products . It uses a twin-horizontal shaft mixer equipped with an automatic control system composed of industrial control microcomputers and programmable controllers. This system can mix concrete with various ratios. The station has advantages such as reasonable structural design, safe and reliable operation, fast speed, and accurate calculation. It is an ideal production equipment for the usage of large and medium-sized construction projects, hydro-power highways, ports, bridges, airports, large prefabrication plants, and commercial concrete production plants.

Product Parameters

Parameter	Unit	HZS60	HZS90	HZS120	HZS180	HZS240	HZS270
Theoretical productivity	m³/h	60	90	120	180	240	270
Mixer model	/	JS1000	JS1500	JS2000	JS3000	JS4000	JS4500
Mixer power	kW	2x22	2x30	2x37	2x55	2x75	2x75
Recycling period	S	60	60	60	60	60	60
Maximum aggregate, particle size	mm	≤80	≤80	≤80	≤80	≤80	≤80
Capacity of powder silo	t	2x100	4x100	4x100	4x150	4x200	4x300
Batching station model	L	1600	2400	3200	4800	6400	6400
Belt conveyor capacity	t/h	300	500	700	1000	1200	1200
Capacity of aggregate silo	m³	3x10	4x15	4x20	4x25	4x30	4x30
Material discharging height	m	4.2	4.2	4.2	4.2	4.2	4.2
Installed power	kW	120	150	190	240	310	310
Maximum capacity of screw conveyor	t/h	40	40	80	80	110	110
Aggregate weighing range/accuracy	kg	1500±2%	2000±2%	2000±2%	3000±2%	4000±2%	4000±2%
Cement weighing range/accuracy	kg	600±1%	800±1%	1200±1%	1800±1%	2400±1%	2400±1%
Coal powder dosing range/accuracy	kg	300±1%	400±1%	600±1%	800±1%	1000±1%	1000±1%
Water dosing range/accuracy	kg	400±1%	500±1%	600±1%	800±1%	1000±1%	1000±1%
Addtive dosing range/accuracy	kg	30±1%	30±1%	30±1%	50±1%	50±1%	50±1%

Product Details

Product Overview

Product Characteristics
1. The materials used throughout the station are solid, and the main building legs and beams are made of large-sized H-shaped steel, which is sturdy and durable, with a service life of more than 10 years.
2. Modular design concept, smart & convenient; Waterway，circuit and gas circuit reserve quick connector can be seamless connected, to elevate installation efficiency, reduce installation difficulty.
3. Centralized production control system keeps operation away from noise and dust environment enhance the image of the mixing station; Dual-control for dual-machine and single person for dual-control can both be realized reducing the production and management cost of about 8,800 usd/year.
4. High configuration, using well-known domestic & foreign brands of motors, reducers, electrical, and butterfly valve components.Ensuring the stability and durability of equipment operation, detailed configuration can be found in the configuration table.

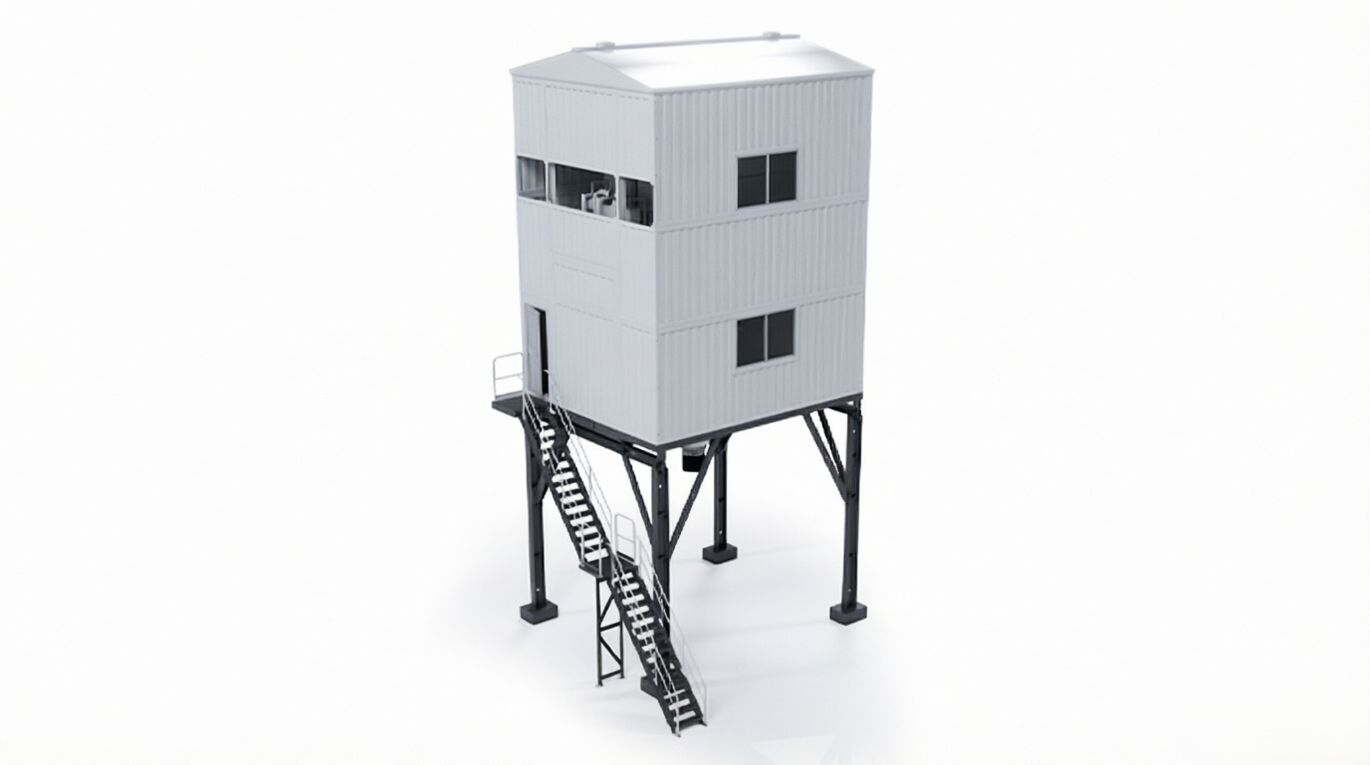

5. Optical container type structure, with modular design, the main building can be free from site packing, to achieve more convenient & fast installation.
6. The high-speed railway station equipment adopts frame type weighing of cement + pulverized fuel ash + mineral powder to reduce the impact of building vibration on the dosing; Optional dual-screw conveyor and discharge butterfly valve automatic control, associated with pneumatic self-balancing technology to prevent the scale body from scale jumping or floating.
7. Easy maintenance and operation, intelligent design in multiple locations, automatic lubrication, automatic alarm, reducing the difficulty of maintenance; During the production process, there is a system with fully automatic batching, automatic operation, and real-time data monitoring, making it easy to operate while ensuring accuracy.
