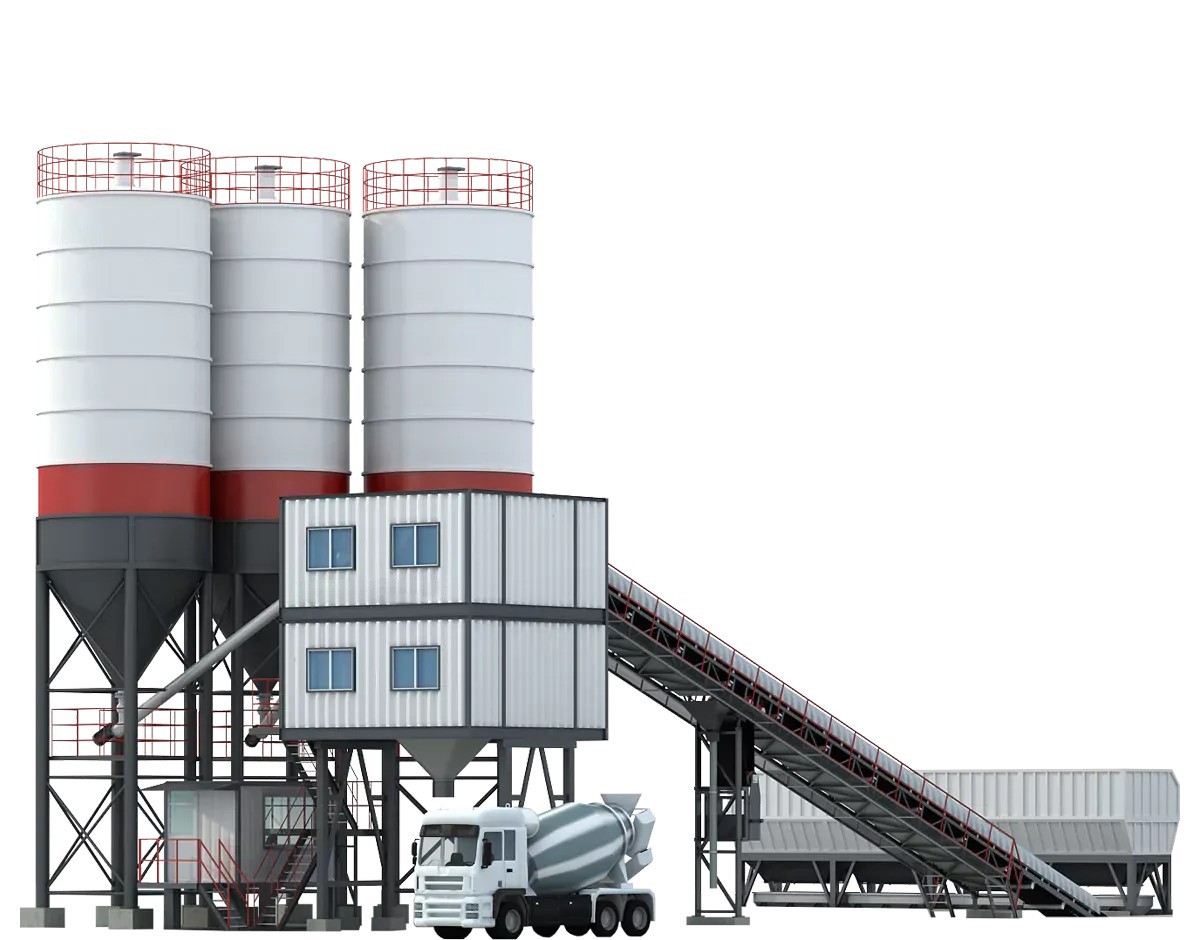

HZS Series Containerized Concrete Batching Plant

The main mixing building adopts a container-type modular design. The water circuit, gas circuit, electric circuit and outer sealing plate are integrated in the main building. Other components also adopt modular design, such as batching station, aggregate conveying belt etc., which has the characteristics of small footprint, quick installation and convenient transportation.

Product Parameters

Parameter	Unit	HZS60J	HZS90J	HZS120J	HZS180J
Theoretical productivity	m³/h	60	90	120	180
Mixer	/	JS1000	JS1500	JS2000	JS3000
Discharge volume	L	1000	1500	2000	3000
Mixer power	kW	22*2	30*2	37*2	55*2
Total power	kW	110	140	160	215

Product Details

Product Overview　

Product Characteristics

1. Modular design, compact structure, small footprint, easy installation and relocation.

2. Double spiral mixer improves concrete production efficiency.

3. High flexibility, can be combined and expanded according to needs, to adapt to different application scenarios.

4. Automated and intelligent control, low dust, low noise, low emissions, green and environmentally friendly.

Introduction To Original Function Modules
1. Mixer Advanced mixing mechanism and its core patented technology, energy saving and consumption reduction. Dual flow movement of materials, strong mixing, efficient mixing. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Mixing device Continuous spiral blades, high output, producing high performance concrete. Continuous vortex mixing, strong shear effect, uniform mixing. Efficient response to large-scale engineering production needs, shortening cycle time.
3. Additive weighing system Additives are weighed separately to meet the mixing requirements of high-strength concrete of different processes. Corrosion-resistant pipelines to ensure that the pipelines are corrosion-resistant and leak-free.
4. Powder weighing system Large angle weighing bucket, faster and smoother unloading, no residue. Anti-pull weighing (supporting weighing) system to avoid abnormal loss of powder.
5. Integrated aggregate transfer hopper with dust collector Efficient temporary storage to increase production capacity. Advanced dust removal technology, energy-saving and efficient. Recycled powder can be reused to save costs.
