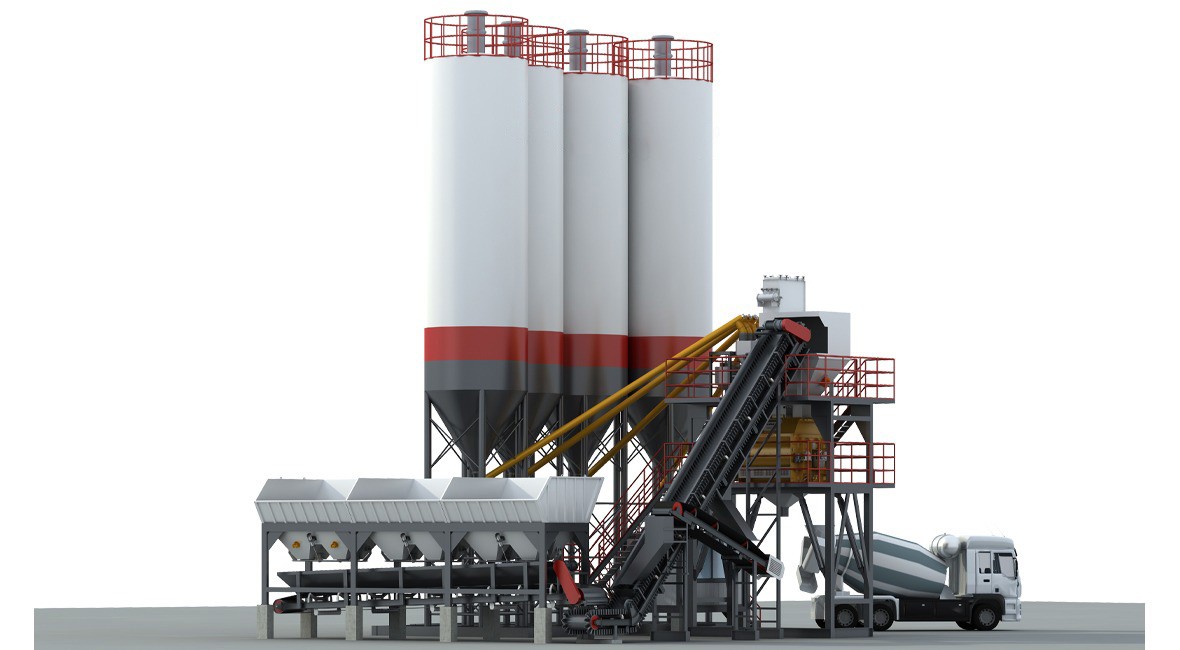

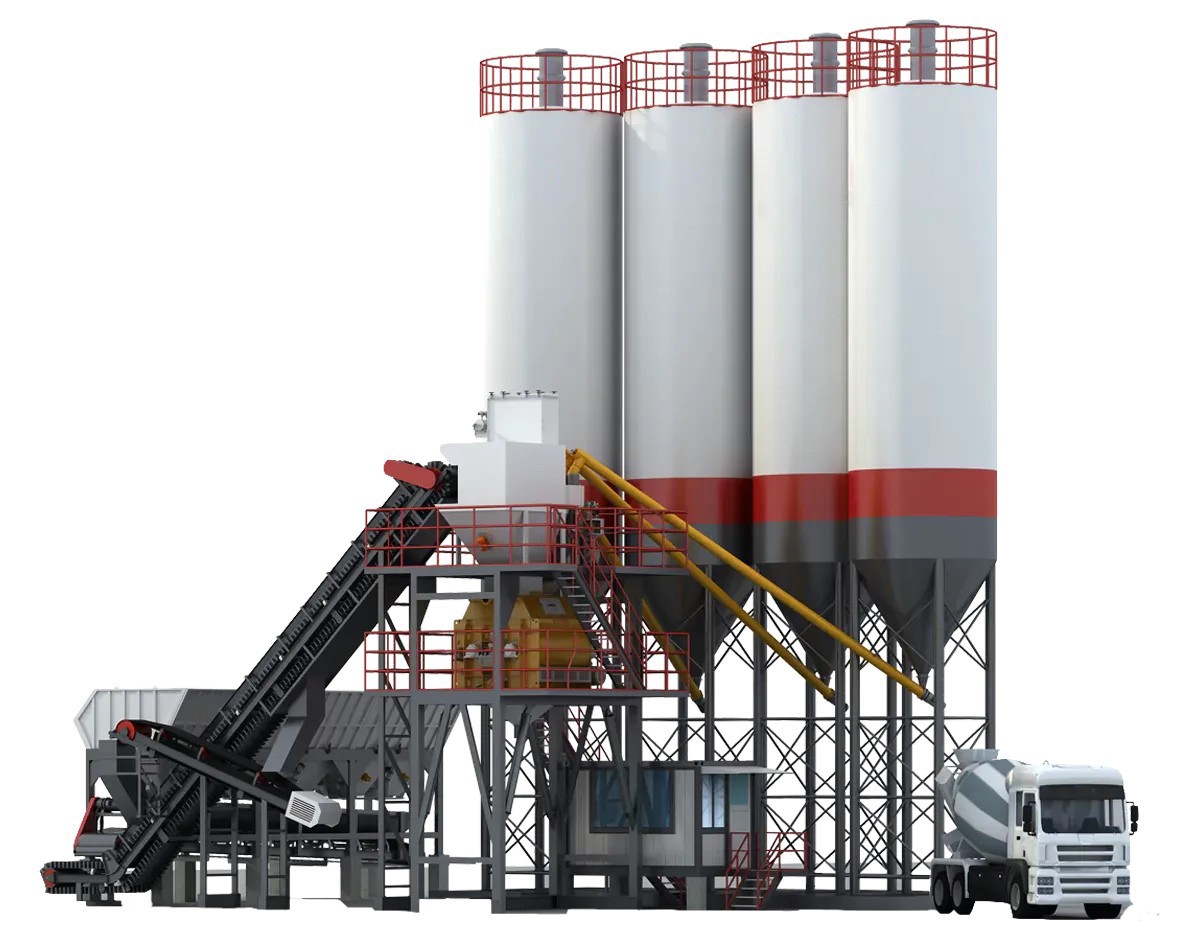

HZS Series Modular Concrete Batching Plant

The HZS Series Modular Concrete Batching Plant developed by KLSFA is easy to install, can be put into production quickly, and has the advantages of energy saving, stability, environmental protection, and intelligence, and is very popular in the market.

Product Parameters

Parameter	Unit	HZS60M	HZS90M	HZS120M	HZS140M	HZS150M	HZS180M	HZS210M
Theoretical productivity	m³/h	60	90	120	140	150	180	210
Mixer	/	JS1000	JS1500	JS2000	JS2350	JS2500	JS3000	JS3500
Discharge volume	L	1000	1500	2000	2350	2500	3000	3500
Mixer power	kW	22*2	30*2	37*2	45*2	45*2	55*2	65*2
Total power	kW	110	140	160	180	190	215	235

Product Details

Product Overview　

Product Characteristics

1. Modular design, quick installation and relocation.

2. Small equipment footprint and strong site adaptability.

3. Tailor-made for overseas markets.

4. Energy-saving, stable, environmentally friendly and intelligent.

Introduction To Original Function Modules
1. Mixer Advanced mixing mechanism and its core patented technology, energy saving and consumption reduction. Dual flow movement of materials, strong mixing, efficient mixing. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Mixing device Continuous spiral blades, high output, producing high performance concrete. Continuous vortex mixing, strong shear effect, uniform mixing. Efficient response to large-scale engineering production needs, shortening cycle time.
3. Additive weighing system Additives are weighed separately to meet the mixing requirements of high-strength concrete of different processes. Corrosion-resistant pipelines to ensure that the pipelines are corrosion-resistant and leak-free.
4. Powder weighing system Large angle weighing bucket, faster and smoother unloading, no residue. Anti-pull weighing (supporting weighing) system to avoid abnormal loss of powder.
5. Integrated aggregate transfer hopper withdust collector Efficient temporary storage to increase production capacity. Advanced dust removal technology, energy-saving and efficient. Recycled powder can be reused to save costs
