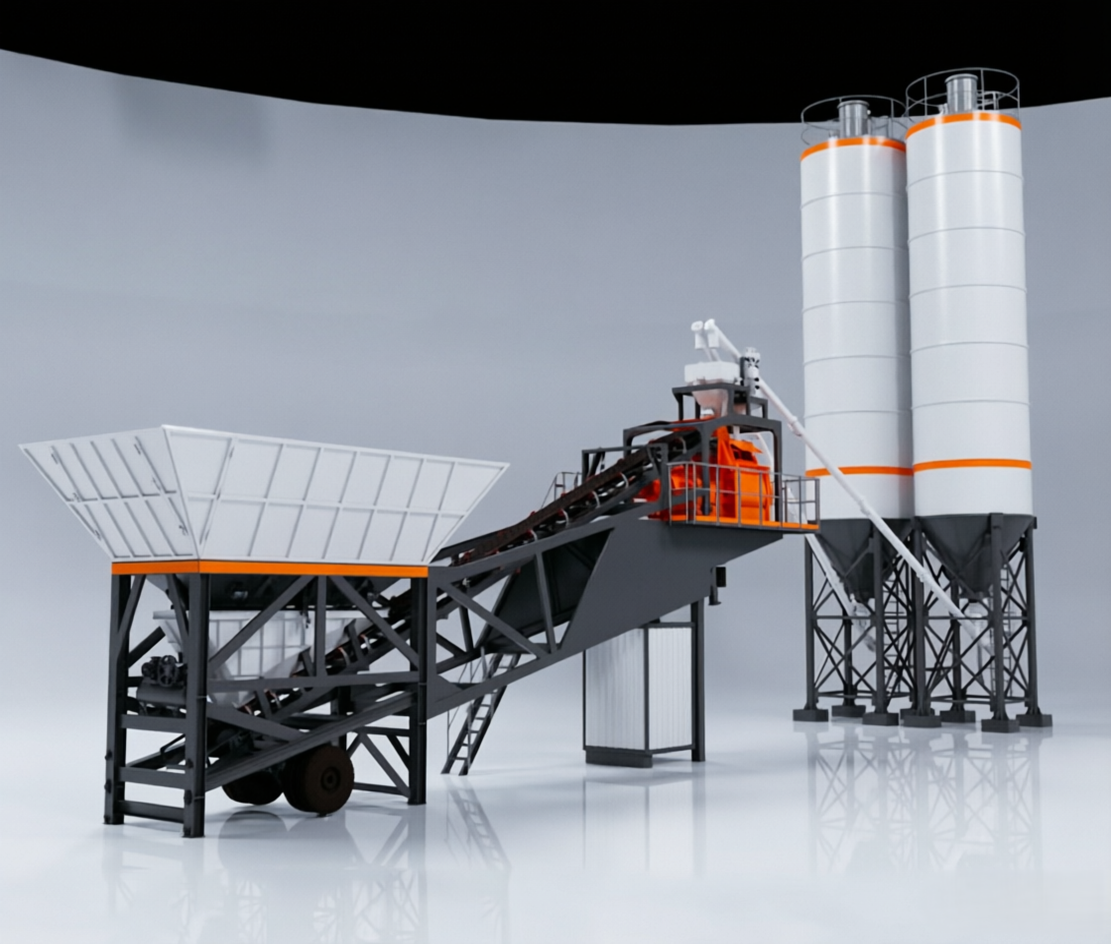

KLSFA Mobile Concrete Batching Plant is a brand-new product developed based on our traditional stationary models, leveraging our extensive manufacturing experience and tailored to meet specific domestic and international demands.
It integrates material storage, weighing, conveying, mixing, discharging, and a fully automatic control system into a single trailer unit. Characterized by its compact structure, easy transfer between sites, and rapid assembly/disassembly, it is the optimal equipment choice for mobile construction projects such as highways, railways, bridges, ports, and hydropower stations.
Product Parameters
| Parameter | Unit | HZS45Y | HZS60Y | HZS90Y |
| Theoretical productivity | ㎥/h | 45 | 60 | 90 |
| Model of mixer | / | JS750 | JS1000 | JS1500 |
| Power of mixer | kW | 2x15 | 2x18.5 | 2x30 |
| Recycling period | S | 60 | 60 | 60 |
| Nominal Capacity of the Mixer Host | L | 750 | 1000 | 1500 |
| Max size of aggregate | mm | Φ80 | Φ80 | Φ80 |
| Capacity of powder silo | t | 2x100 | 2x100 | 2x100 |
| Batching capacity of he batching station | L | 1600 | 1600 | 2400 |
| Capacity of aggregate silo | ㎥ | 4x9 | 4x9 | 4x9 |
| Material discharging height | m | 4 | 4 | 4 |
| Installed power | kW | 100 | 120 | 150 |
| Maximum capacity of screw conveyor | t/h | 40 | 40 | 40 |
| Aggregate weighing range/accuracy | kg | 1500±2% | 1500±2% | 2000±2% |
| Cement weighing range/accuracy | kg | 600±1% | 600±1% | 800±1% |
| Coa powder dosing range/accuracy | kg | 300±1% | 300±1% | 400±1% |
| Water dosing range/accuracy | kg | 400±1% | 400±1% | 500±1% |
| Addtive dosing range/accuracy | kg | 30±1% | 30±1% | 30±1% |
Product Details
| Product Overview |
KLSFA Mobile Concrete Batching Plant is a brand-new product developed based on our traditional stationary models, leveraging our extensive manufacturing experience and tailored to meet specific domestic and international demands. It integrates material storage, weighing, conveying, mixing, discharging, and a fully automatic control system into a single trailer unit. Characterized by its compact structure, easy transfer between sites, and rapid assembly/disassembly, it is the optimal equipment choice for mobile construction projects such as highways, railways, bridges, ports, and hydropower stations. |
| Product Characteristics | |

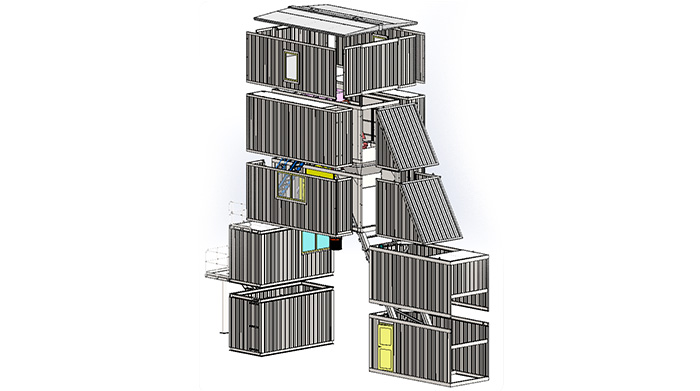

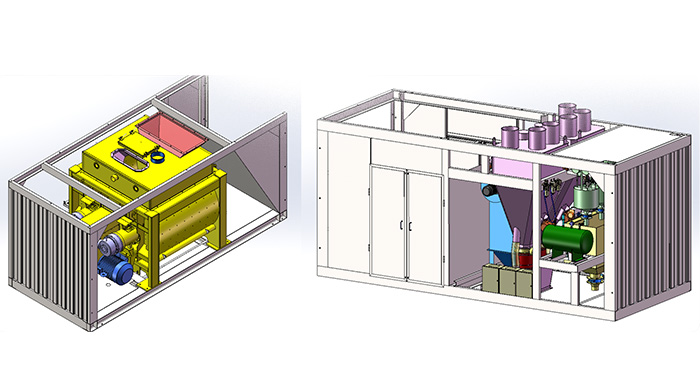

| 1. Integrated Design: The main tower, inclined belt conveyor, batching machine, and control room are seamlessly integrated into a single unit, offering a sleek and robust appearance. |  |

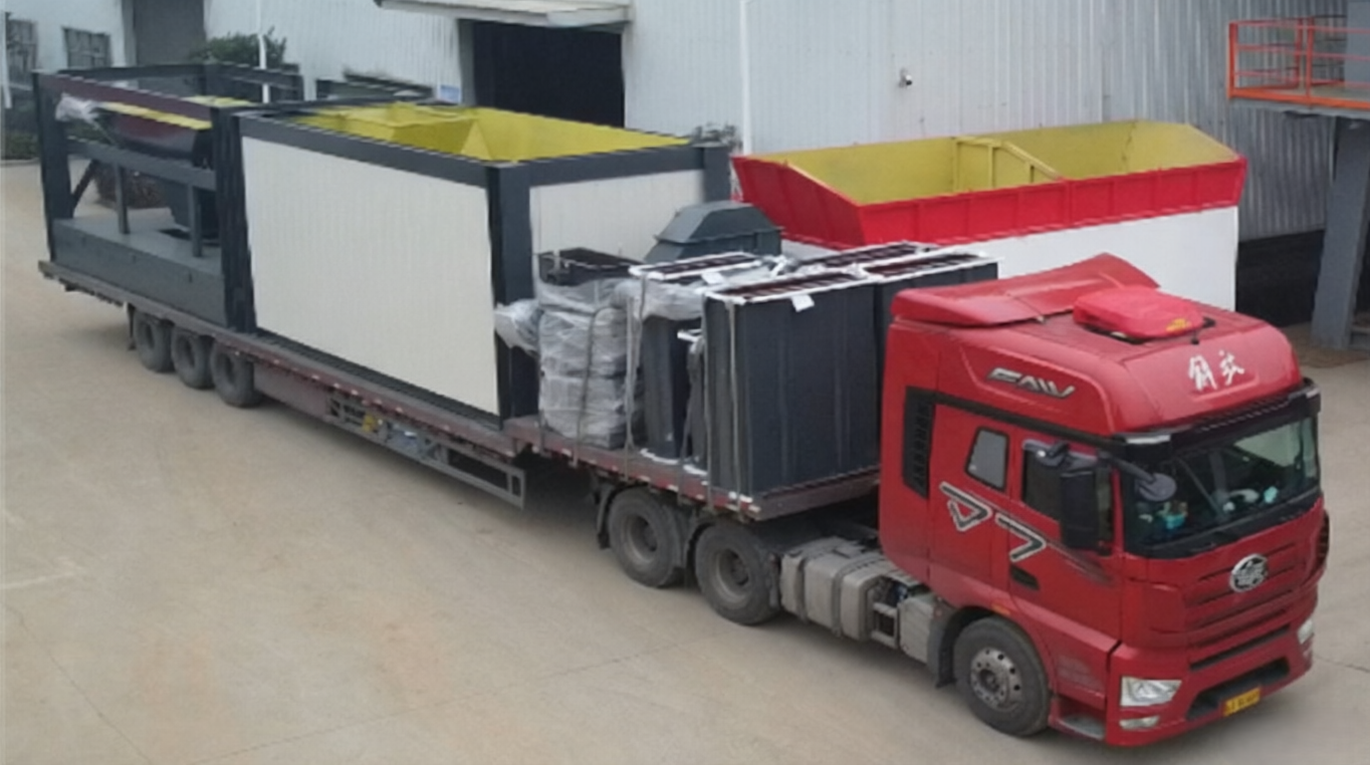

2. Easy Relocation: With the exception of the cement silo, the entire plant can be towed by a single vehicle. All water, electrical, and pneumatic connections are pre-installed, featuring quick-connect couplings for easy hook-up to external sources. |  |
3. Rapid Assembly & Disassembly: Apart from the cement silo, the initial installation of the whole station takes only 2 days, while relocation and re-assembly require just 1 day. |  |
