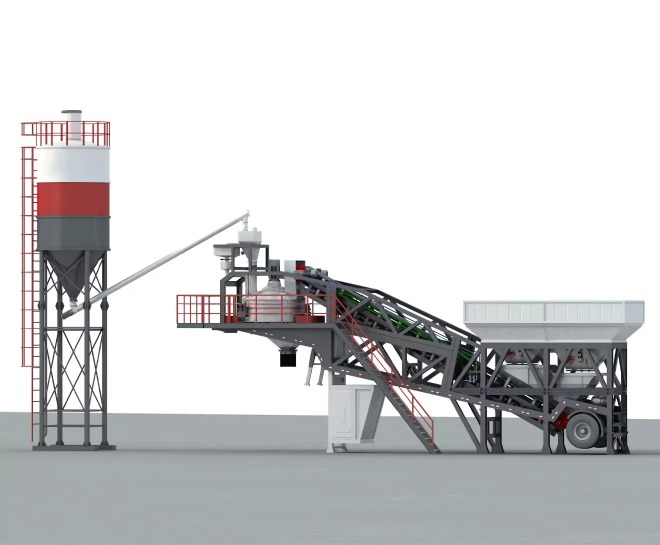

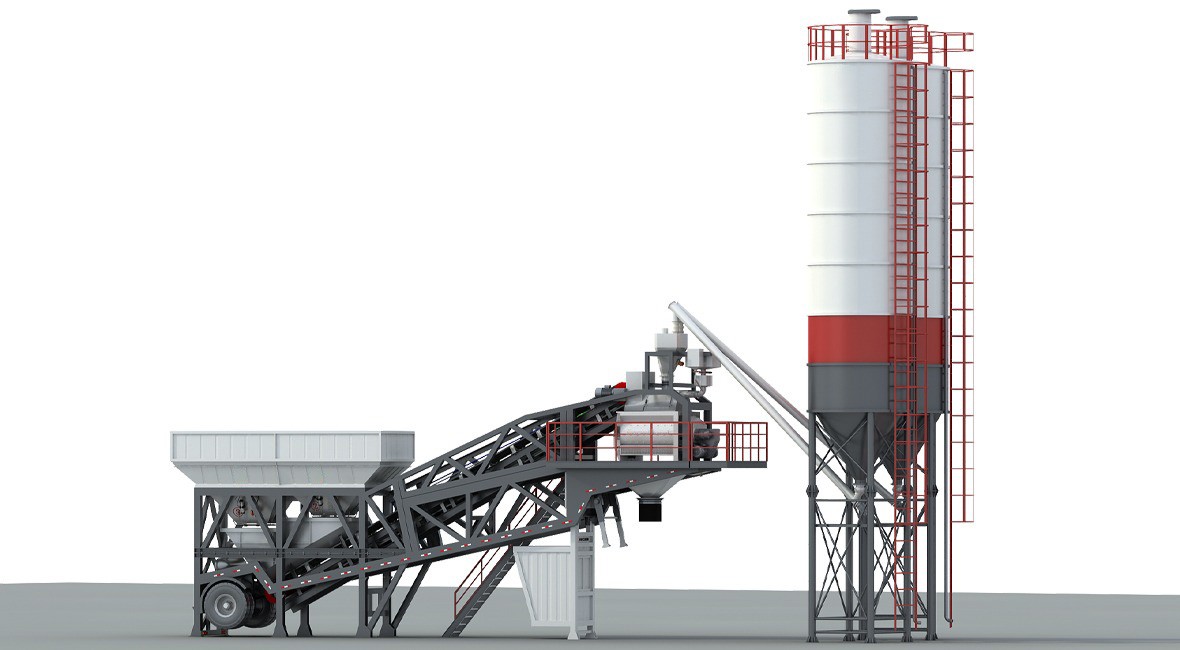

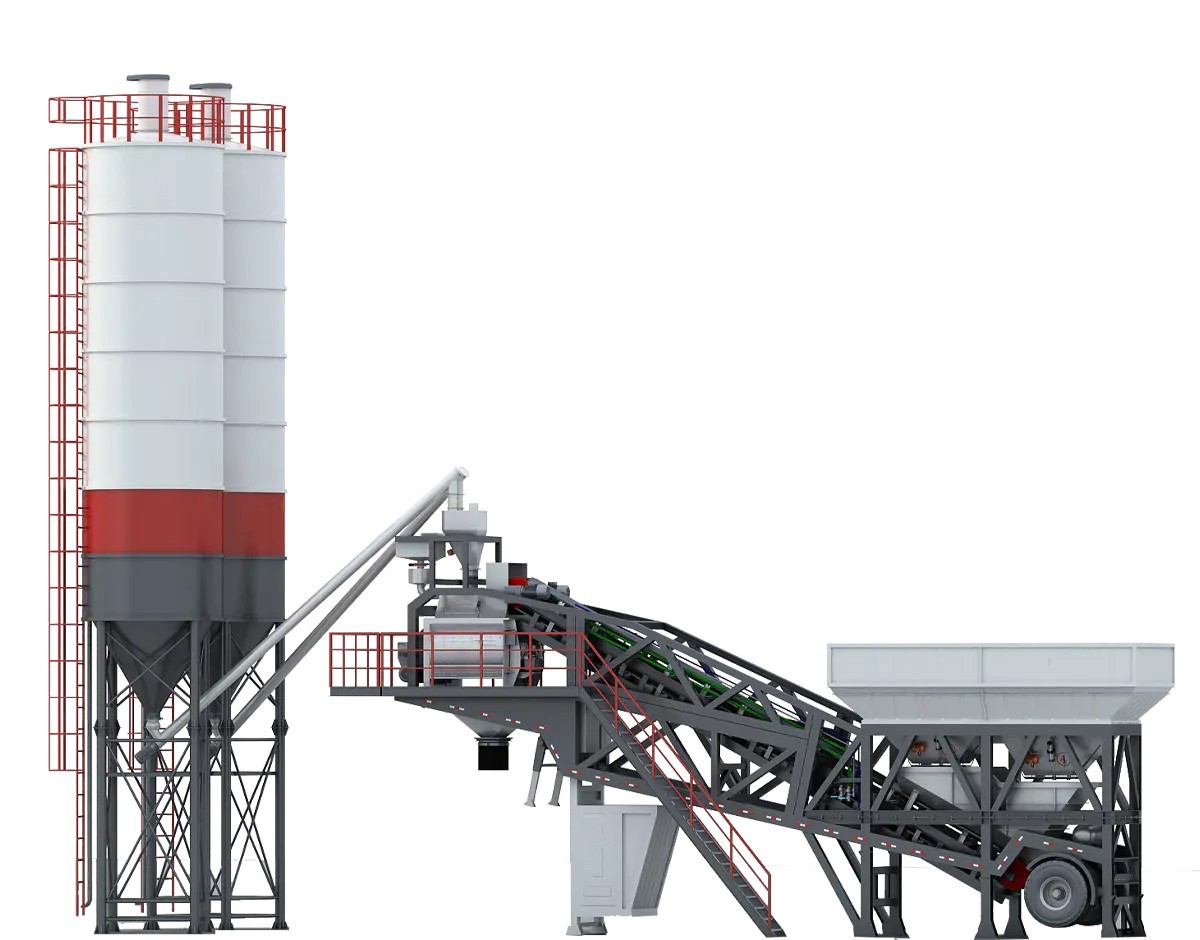

HZNY Series Integrated Mobile Concrete Batching Plant

KLSFA integrated mobile concrete mixing plant equipment adopts an overall trailer design. Water, air, circuit, etc. all use quick connectors. The mechanical structure uses a bolt-type fast installation. It can be pulled and moved, and can be used as soon as it stops. It can go on the highway and is easy to move. It has three working modes: fully automatic, semi-automatic, and manual, making production and control more convenient.

Product Parameters

Parameter	Unit	HZNY50R	HZNY75R
Mixer	/	JN1000	JN1500
Discharge volume	L	1000	1500
Mixer power	kW	55	75
Total power	kW	90	120

Product Details

Product Overview　

Product Characteristics

1. The main components are highly integrated into one vehicle, which is easy to install and can be quickly towed and moved.

2. It occupies a small area and is easy to hoist.

3. Accurate weighing and efficient mixing.

4. The overall towing design uses quick connectors for water/air/circuit, etc.

Introduction To Original Function Modules
1. Mixer The double spiral type mixer greatly reduces the production cycle and is highly efficient and energy-saving. The gap between the mixer blades and the liner is within 5mm, and the aggregate gradation is not damaged. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Planetary mixer (optional) Counter-current planetary bidirectional mixing, with a more complex mixing trajectory. The bidirectional hyperboloid design of the mixing blades makes mixing fast and labor-saving. Low noise, high torque, superior and reliable performance, high transmission efficiency.
3. Compact structure The overall trailer design is convenient for transportation. Water, air, circuit, etc. all use quick connectors. The mechanical structure uses a bolt-type for fast installation.
4. Production Control Fully automatic, semi-automatic and manual working modes are available. Production control is more convenient.
