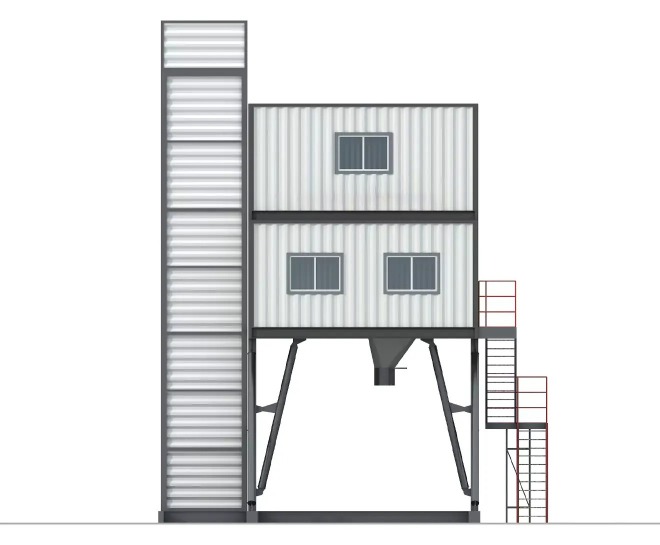

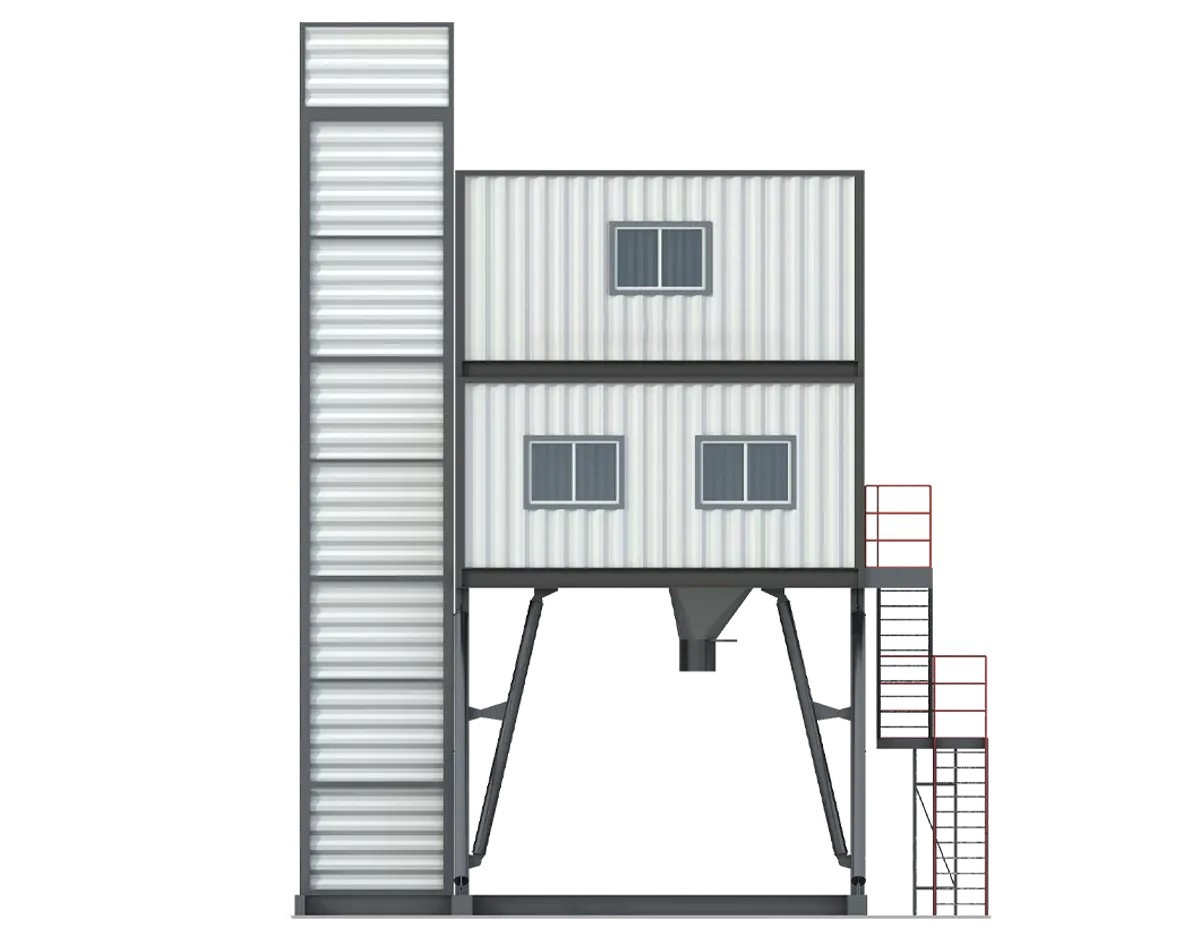

UHPC Series Special Planetary Concrete Batching Plant

KLSFA's UHPC ultra-high performance concrete mixing plant uses a dedicated vertical shaft planetary mixer for uniform mixing. The ultra-high performance concrete produced can bring lower deadweight, lower carbon emissions and longer service life, providing strong support for bridge and engineering construction.

Product Parameters

Parameter	Unit	HZN50FB	HZN75FB	HZN100FB	HZN150FB
Mixer	/	JN1000	JN1500	JN2000	JN3000
Discharge volume	L	1000	1500	2000	3000
Mixer power	kW	55	75	90	132
Total power	kW	120	155	175	237

Product Details

Product Overview　

Product Characteristics

1. Compact structure, small footprint, strong site adaptability.

2. Tailor-made for ultra-high performance concrete working conditions.

3. Meet the needs of various high-standard construction projects.

4. Low noise, low dust, low emissions, green and environmentally friendly.

Introduction To Original Function Modules

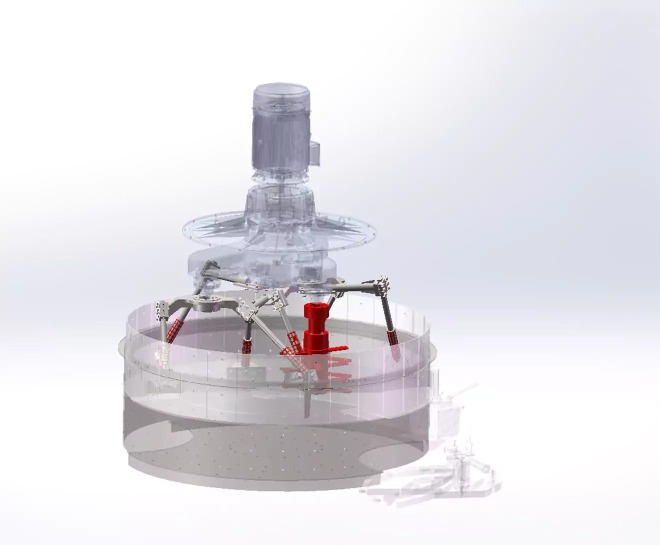

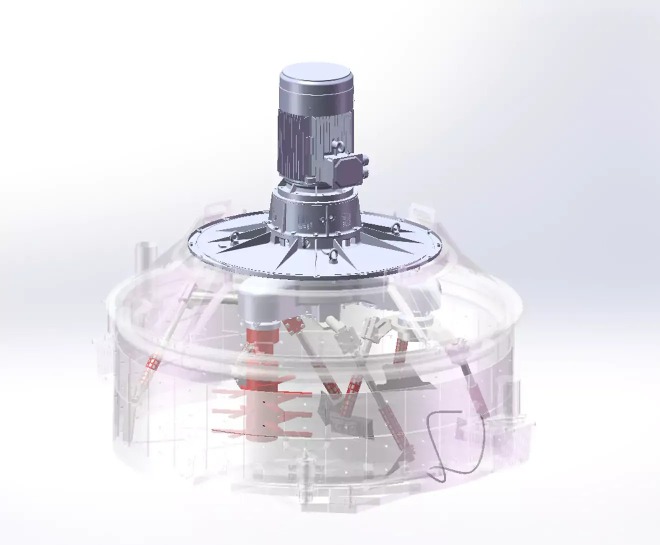

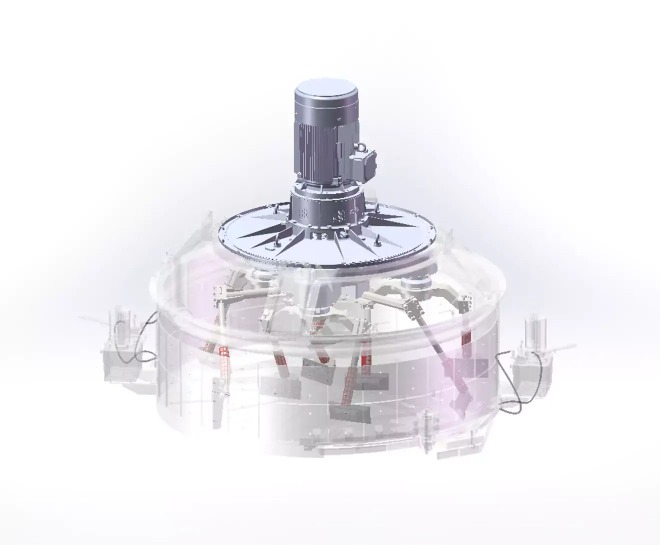

1. Mixing blade Countercurrent planetary bidirectional mixing, with a more complex mixing trajectory. The bidirectional hyperboloid design of the mixing blades makes mixing fast and labor-saving. Low noise, high torque, superior and reliable performance, high transmission efficiency.
2. Overall frame The overall frame is welded with "tooling", rigid and non-deformed. Continuous vortex mixing, strong shearing effect, uniform mixing. Vertical hydraulic station, standard hydraulic double door, alternating production, improved efficiency.
3. Mixing arm 8mm+8mm wear-resistant overlay welding plate to extend the life of the liner. The mixing arm is made of high-quality alloy steel forgings with good toughness and excellent fatigue resistance.
4. Modular design Easy to install, can be quickly relocated, and can also be customized for fixed site customers. Premixed mixing solution, just add according to the proportion, mix evenly, and you can use it.
