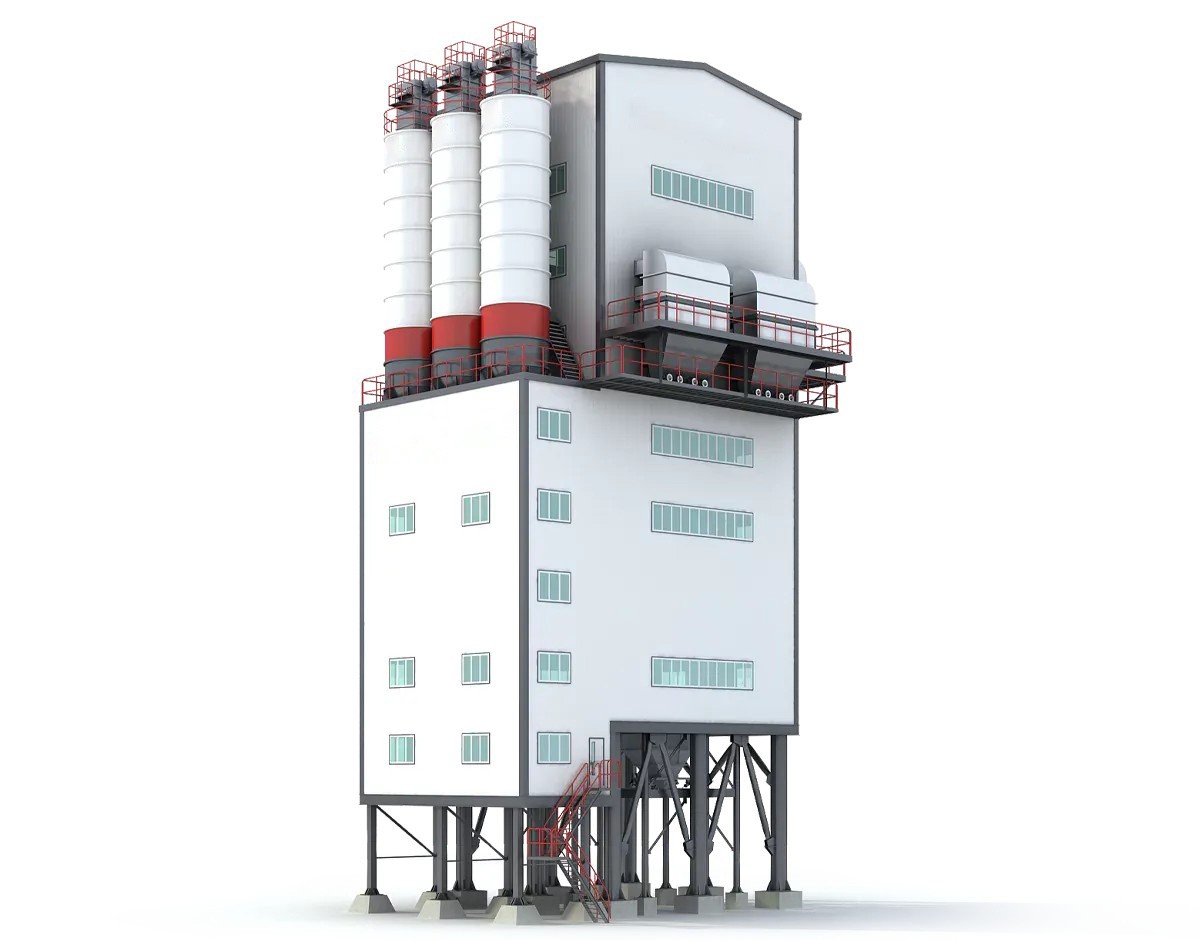

HL-2S Series Special Concrete Batching Plant for Hydraulic Engineering

The HL-2S Series Special Concrete Batching Plant for Hydraulic Engineering developed by KLSFA is equipped with temperature control equipment such as aggregate silo cooling fan and flake ice adding device. It mainly serves the construction of large-scale roller compacted concrete for hydraulic engineering projects and can meet the high-strength and large-capacity roller compacted concrete pouring needs of large-scale hydraulic engineering and hydro-power projects.

Product Parameters

Parameter	Unit	HL240-2S3000L	HL280-2S4000L	HL320-2S4500L	HL360-2S6000L
Theoretical productivity of normal concrete without ice	m³/h	120	160	240	320
Theoretical productivity of three-graded roller compacted concrete	m³/h	1500	2000	3000	4000
Theoretical productivity of pre-cooled concrete	m³/h	140	180	260	340
Special mixer for hydraulic engineering	/	±0.3	±0.3	±0.3	±0.3
Mixer power	kW	±0.2	±0.2	±0.2	±0.2

Product Details

Product Overview　

Product Characteristics

1. High production efficiency.

2. Accurate weighing and efficient mixing.

3. Controllable temperature of finished product.

4. Tailor-made for hydraulic working conditions.

Introduction To Original Function Modules

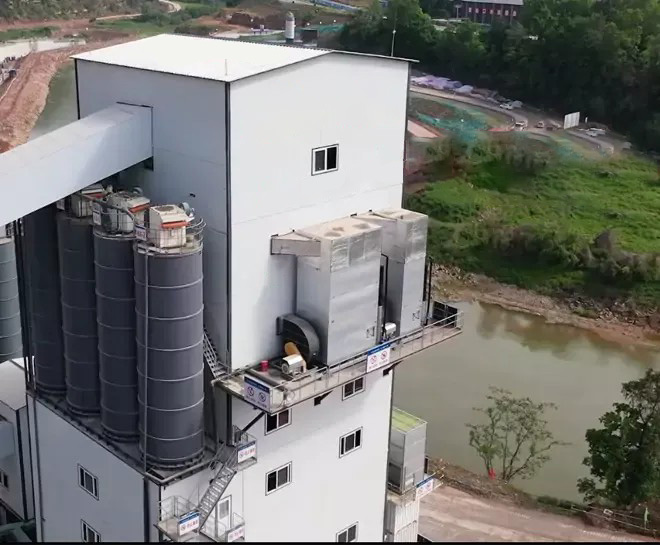

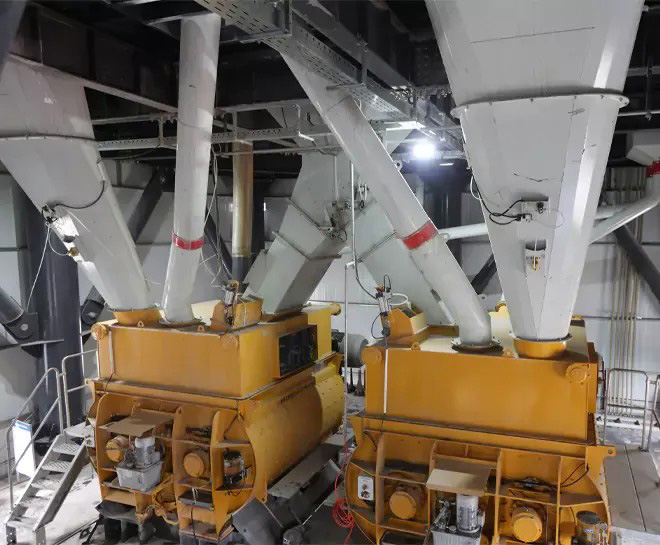

1. One building with double mixer structure Two sets of mixer can be produced at the same time, specially designed for hydraulic working conditions.
2. Secondary air cooling of aggregate bins in batching plant Meet the design requirements for producing temperature-controlled concrete and ensure that the outlet temperature of the roller compacted concrete is ≤14°C.

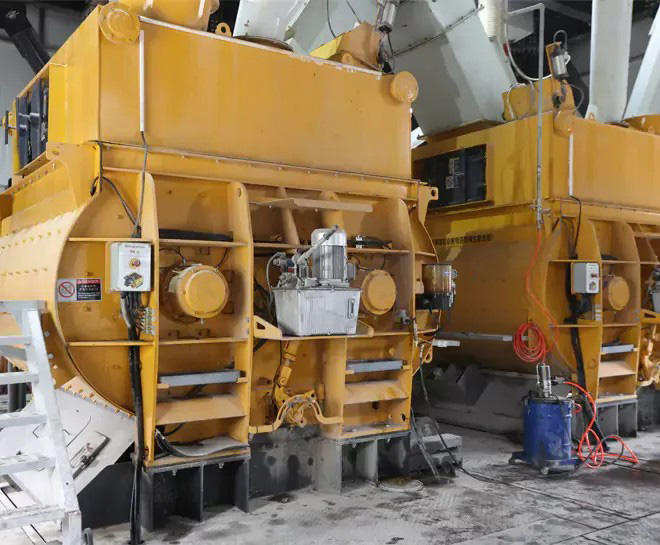

3. Special mixer for hydraulic engineering Material anti-stick shaft design, maximum aggregate particle size can reach 150mm. It can bear 4~12% more load than conventional mixer with higher wear resistance and strength. It is specially developed for hydraulic engineering to ensure 24-hour continuous and stable production of equipment.
