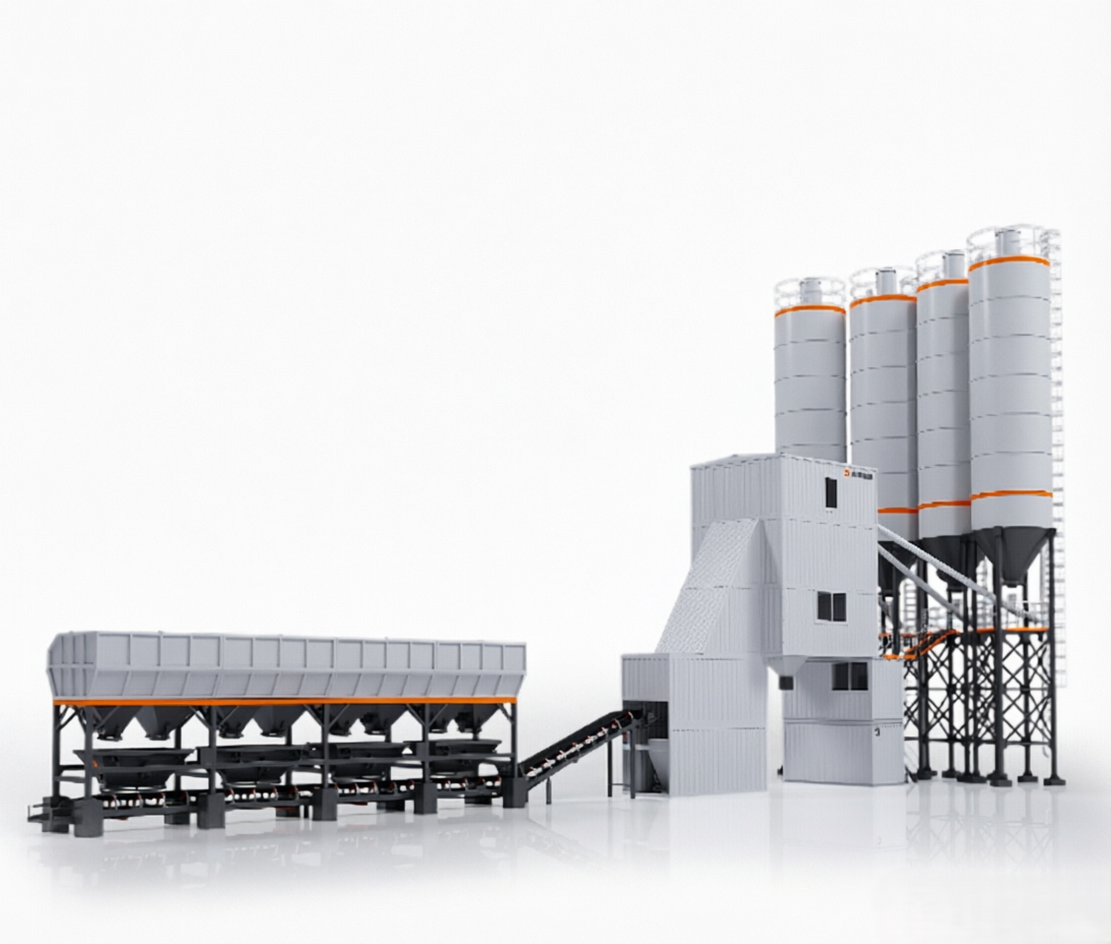

HZS Series Bucket-Lifting Type Container Concrete Batching Plant

KLSFA Bucket-lifting Container Concrete Batching Plant is a brand new product created based on the modular design concept of the existing product. In addition to the characteristics of the original bucket-lifting type batching plant, it also has the characteristics of fast installation & relocation, high-end and atmospheric appearance, and is wisely used in the construction of highways, railways, municipal, and urban projects.

Product Parameters

Parameter	Unit	HZS60TX	HZS90TX	HZS120TX	HZS180TX
Theoretical productivity	㎥/h	60	90	120	180
Model of mixer	/	JS1000	JS1500	JS2000	JS3000
Power of mixer	kW	2x22	2x30	2x37	2x55
Recycling period	S	60	60	60	60
Mixer	L	1000	1500	2000	3000
Max size of aggregate	mm	≤80	≤80	≤80	≤80
Capacity of powder silo	t	2x100	3x100	4x100	4x150
Batching capacity of he batching station	L	1600	2400	3200	4800
Capacity of aggregate silo	㎥	3x10	4x15	4x20	4x25
Material discharging height	m	4.2	4.2	4.2	4.2
Installed power	kW	120	150	190	240
Maximum capacity of screw conveyor	t/h	40	40	80	80
Aggregate weighing range/accuracy	kg	1500±2%	2000±2%	2000±2%	3000±2%
Cement weighing range/accuracy	kg	600±1%	800±1%	1200±1%	1800±1%
Coa powder dosing range/accuracy	kg	300±1%	400±1%	600±1%	800±1%
Water dosing range/accuracy	kg	400±1%	500±1%	600±1%	800±1%
Addtive dosing range/accuracy	kg	30±1%	30±1%	30±1%	50±1%

Product Details

Product Overview　

Product Characteristics
1. Quick installation and relocation: The components are installed using a “block building” method; The disassembly and assembly time of the entire main building does not exceed half a day, which greatly improving installation efficiency and creating higher economic benefits.
2. Integrated design: Each system module is reasonably distributed within each container and standardized production.
3. Compact structure: Used in conjunction with a bucket, it occupies a small area and has high and utilization efficiency.
4. Green and environmentally friendly: The integrated internal design greatly reduces the impact of dust, vibration, and noise on the surrounding environment, making it more environmentally friendly.
5. Safe and stable: It adopts steel plate pressure welding packaging without the need for external sealing, and there is no need for external high-altitude operations.

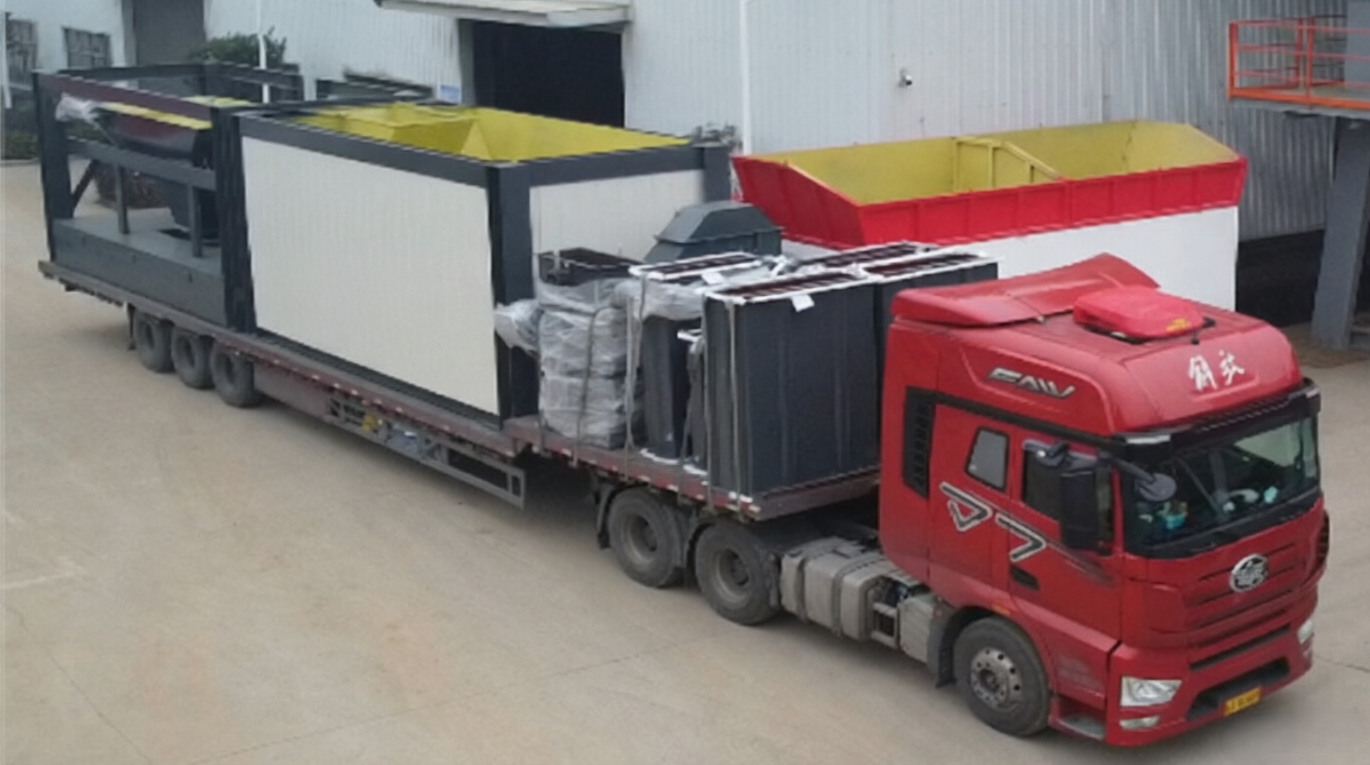

6. High transportation efficiency: There is no increase in transportation vehicles due to the use of frame structures, which is the same as the vehicles required for traditional mixing plants.
