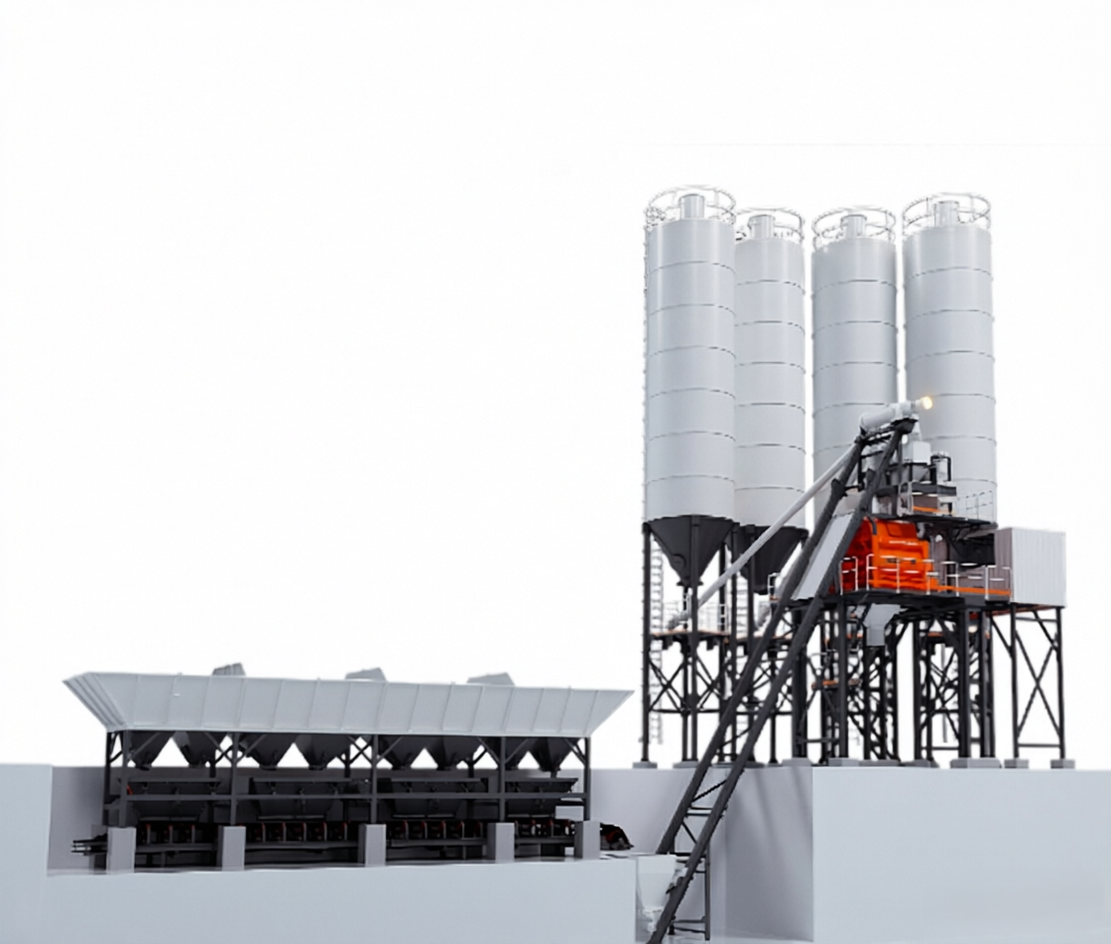

HZS Series Bucket-Lifting Type Concrete Batching Plant

KLSFA Bucket-lifting Type Concrete Batching Plant has significant features such as integrated design, environmental protection and energy conservation, safety and reliable, to achieve precise dosing, and stable performance. It is widely used in the construction of highways, railways, municipal, and urban projects.

Product Parameters

Parameter	Unit	HZS60T	HZS90T	HZS120T	HZS180T
Theoretical productivity	㎥/h	60	90	120	180
Model of mixer	/	JS1000	JS1500	JS2000	JS3000
Power of mixer	kW	2x22	2x30	2x37	2x55
Recycling period	S	60	60	60	60
Mixer	L	1000	1500	2000	3000
Max size of aggregate	mm	≤80	≤80	≤80	≤80
Capacity of powder silo	t	2x100	3x100	4x100	4x150
Batching capacity of he batching station	L	1600	2400	3200	4800
Capacity of aggregate silo	㎥	3x10	4x15	4x20	4x25
Material discharging height	m	4.2	4.2	4.2	4.2
Installed power	kW	120	150	190	240
Maximum capacity of screw conveyor	t/h	40	40	80	80
Aggregate weighing range/accuracy	kg	1500±2%	2000±2%	2000±2%	3000±2%
Cement weighing range/accuracy	kg	600±1%	800±1%	1200±1%	1800±1%
Coa powder dosing range/accuracy	kg	300±1%	400±1%	600±1%	800±1%
Water dosing range/accuracy	kg	400±1%	500±1%	600±1%	800±1%
Addtive dosing range/accuracy	kg	30±1%	30±1%	30±1%	50±1%

Product Details

Product Overview　

Product Characteristics
1. Compact structure, efficient production: Modular structure design, small area covering, flexible placement as per actual site condition, multi-directional discharging, each optimized components are with equal efficiency with belt conveyors transportation.
2. The optimized design of the lifting bucket has a large volume, smooth feeding, and a forward center of gravity, making it more stable; Using dynamic lifting points for material loading, ensuring smooth lifting without bias load; Loose rope protection limit, no reverse rotation, safe and worry free; The lifting motor adopts high-power electromagnetic braking motor, which is stable and reliable.
3. Wear parts are reliable & durable: tempered H-type steel rails avoids rail deformation. The lifting bucket is protected by intelligent devices such as sensors and travel switches during operation, making it safe and reliable. The double wear-resistant pulley and double steel wire rope design extends the service life of vulnerable parts such as the pulley and steel wire rope to over 50,000 m³ bucket never drops.
4. Accurate dosing, the powder scale body adopts an octagonal design, with good rigidity and smooth unloading; Independent and free scale frame, with pneumatic self balancing technology to prevent the occurrence of supporting and pulling scales. All materials are measured with coarse and fine precision, with high accuracy; Each weighing hopper has an adaptive intelligent weighing function, which makes it more accurate to use; The scale bucket has a large capacity and is suitable for more proportioning requirements.
