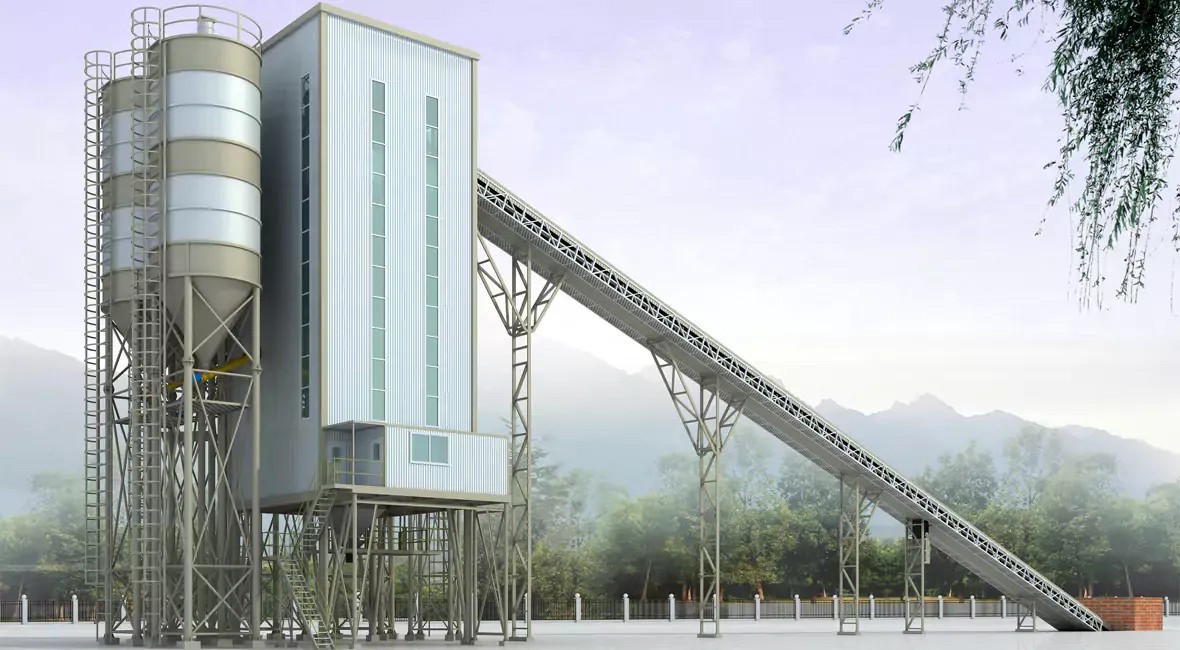

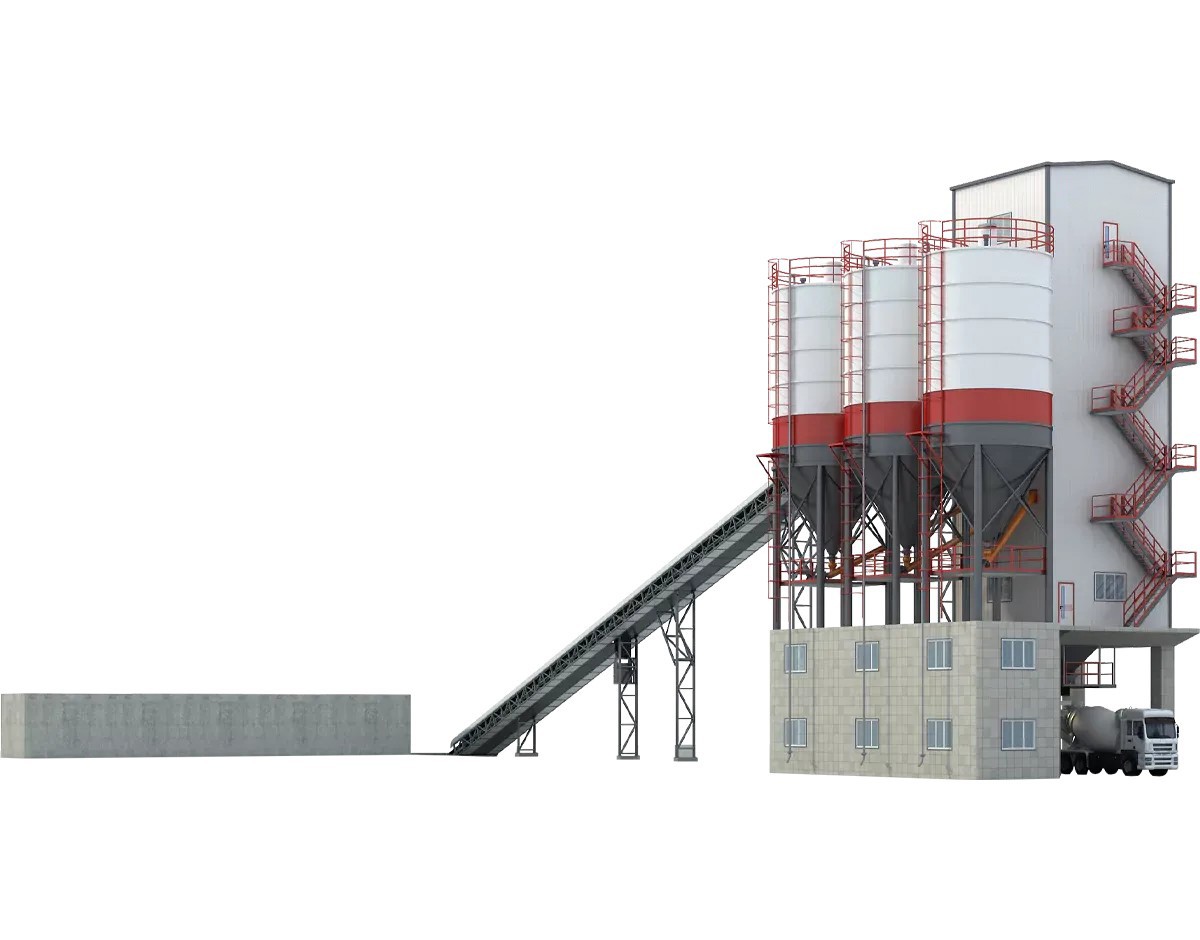

HLS(N) Commercial Concrete Batching Plant

KLSFA series commercial concrete mixing plant is mainly composed of five systems including mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities. It has the advantages of environmental protection, energy saving, high efficiency, stability and safety.

Product Parameters

Parameter (HLS series)	Unit	HLS180	HLS240	HLS270	HLS300	HLS360	HLS420
Theoretical productivity	㎥/h	180	240	270	300	360	420
Mixer	/	JS3000	JS4000	JS4500	JS5000	JS6000	JS7000
Discharge volume	L	3000	4000	4500	5000	6000	7000
Mixer power	kW	55*2	75*2	75*2	90*2	65*4	75*4
Total power	kW	290	325	325	355	435	475

Parameter (HLN series)	Unit	HLN90	HLN120	HLN180
Mixer	/	JN1500	JN2000	JN3000
Discharge volume	L	1500	2000	3000
Mixer power	kW	75	90	132
Total power	kW	255	270	310

Product Details

Product Overview　

Product Characteristics

1. It can quickly and evenly mix various raw materials with high production efficiency.

2. It has flexible configuration and large expansion space to meet the needs of different working conditionsy.

3. It has a simple and elegant appearance design, flexible configuration and large expansion space.

4. It has low dust, low noise, low emissions and is green and environmentally friendly.

Introduction To Original Function Modules
1. Mixer (HLS series) Advanced mixing mechanism and its core patented technology, energy saving and consumption reduction. Dual flow movement of materials, strong mixing, efficient mixing. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Mixing device Continuous spiral blades, high output, producing high performance concrete. Continuous vortex mixing, strong shear effect, uniform mixing. Efficient response to large-scale engineering production needs, shortening cycle time.

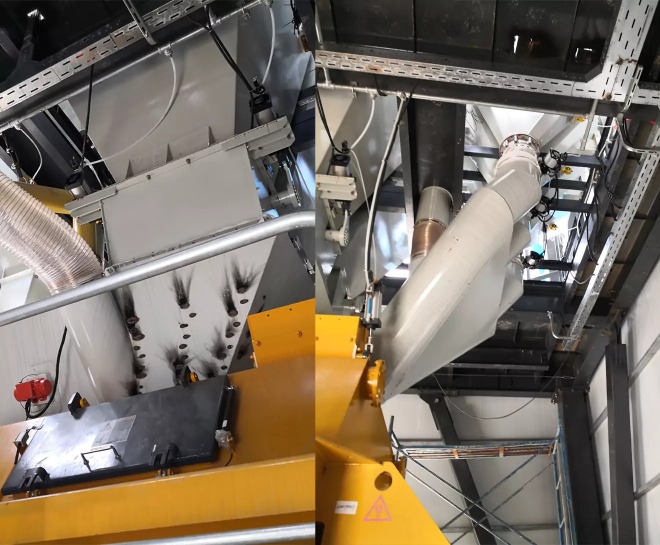

3. Aggregate and powder guiding chute The visual PVC soft curtain is fully sealed to prevent dust from spilling out. Pulse dust removal system, efficient dust removal, low carbon and energy saving.

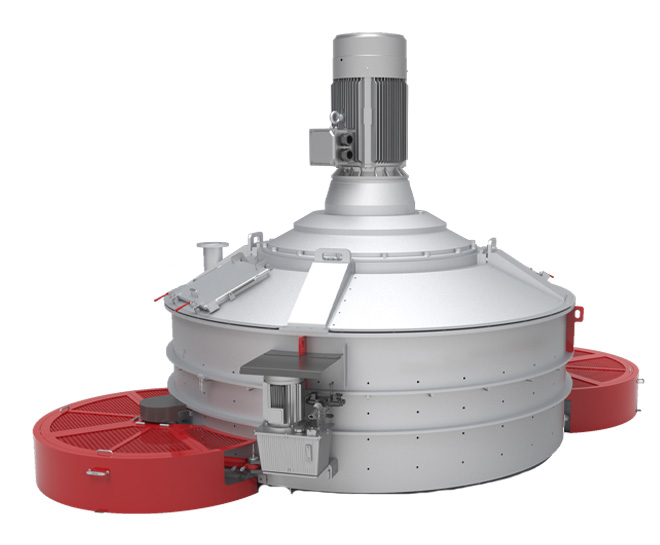

4. Vertical shaft planetary mixer (HLN series) Countercurrent planetary bidirectional mixing, with a more complex mixing trajectory. The bidirectional hyperboloid design of the mixing blades makes mixing fast and labor-saving. Low noise, high torque, superior and reliable performance, high transmission efficiency.
