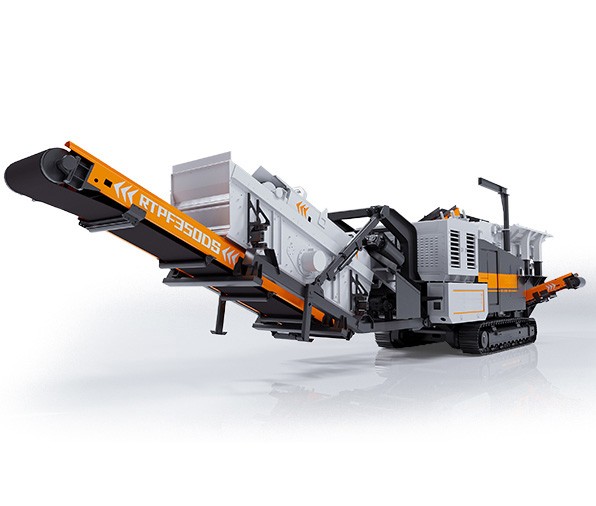

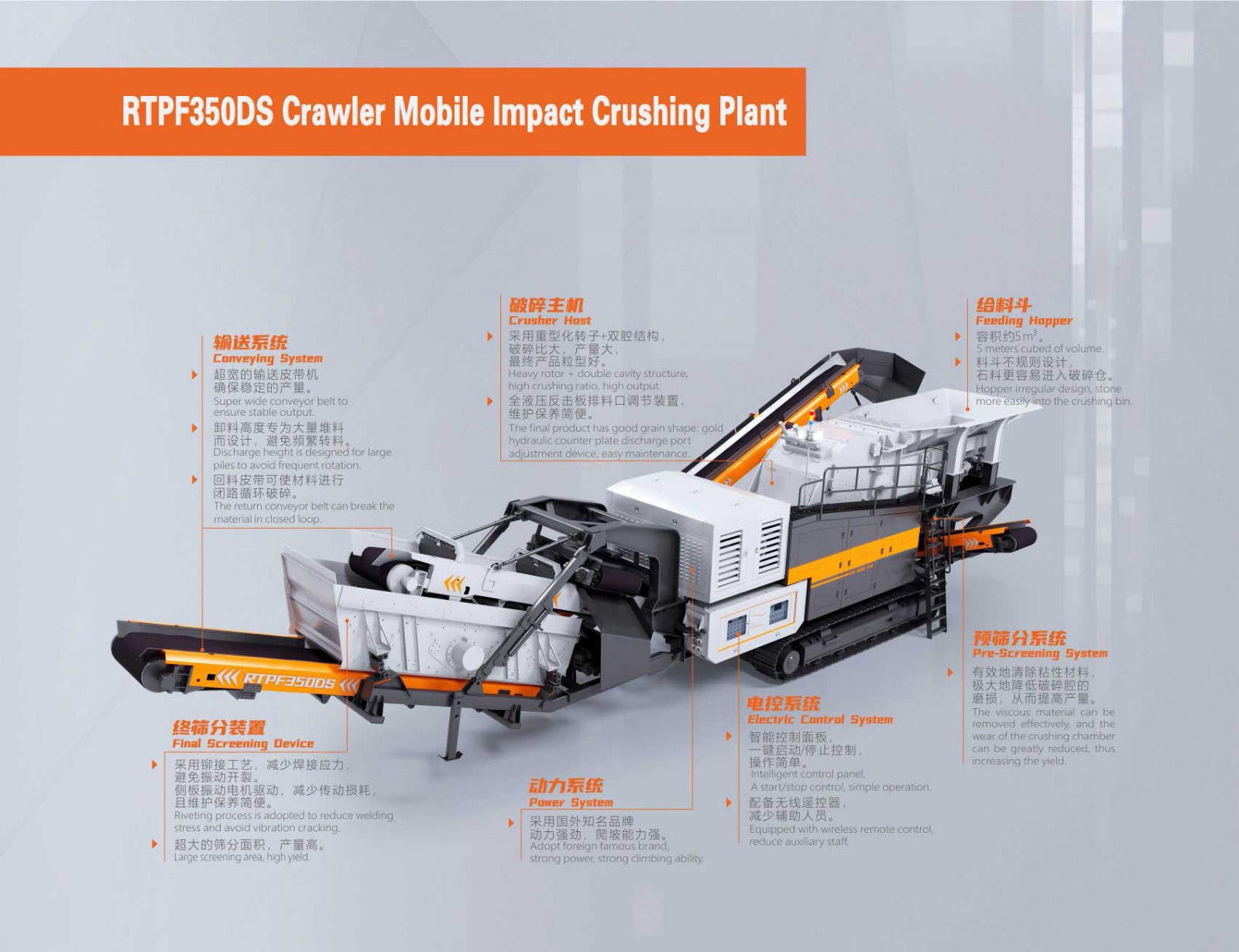

RTPF350DS Crawler Mobile lmpact Crushing Plant

KLSFA Crawler Mobile Counter Crushing Plant has a compact and integrated design, with a small construction area. The crushing mainframe adopts new manufacturing technology and unique structural design, which results in a higher crushing ratio and stronger crushing capacity. The processed products are cuboid-shaped, with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, making it suitable for complex and varied construction environments.

EMAIL

Product Parameters






ParameterUnitRTPF350DS
Maximum Feeding Sizemm600
Feeding Heightmm3800
Hopper Volume5
Vibrating Feeder Sizemm4000x1250
Engine PowerkW103
Processing Capacityt/h150-250
Total Power in Working ConditionkW310
Tlotal Machine Weight Including Iron Removert60
Working Sizem18.3x5.4x4.8
Transport Sizem18.3x3.2x3.8
Main Driving Mode/External Power Supply
Traveling Control Mode/Hydraulic Drive
Traveling Speedkm/h0.8-1.0


Product Details
