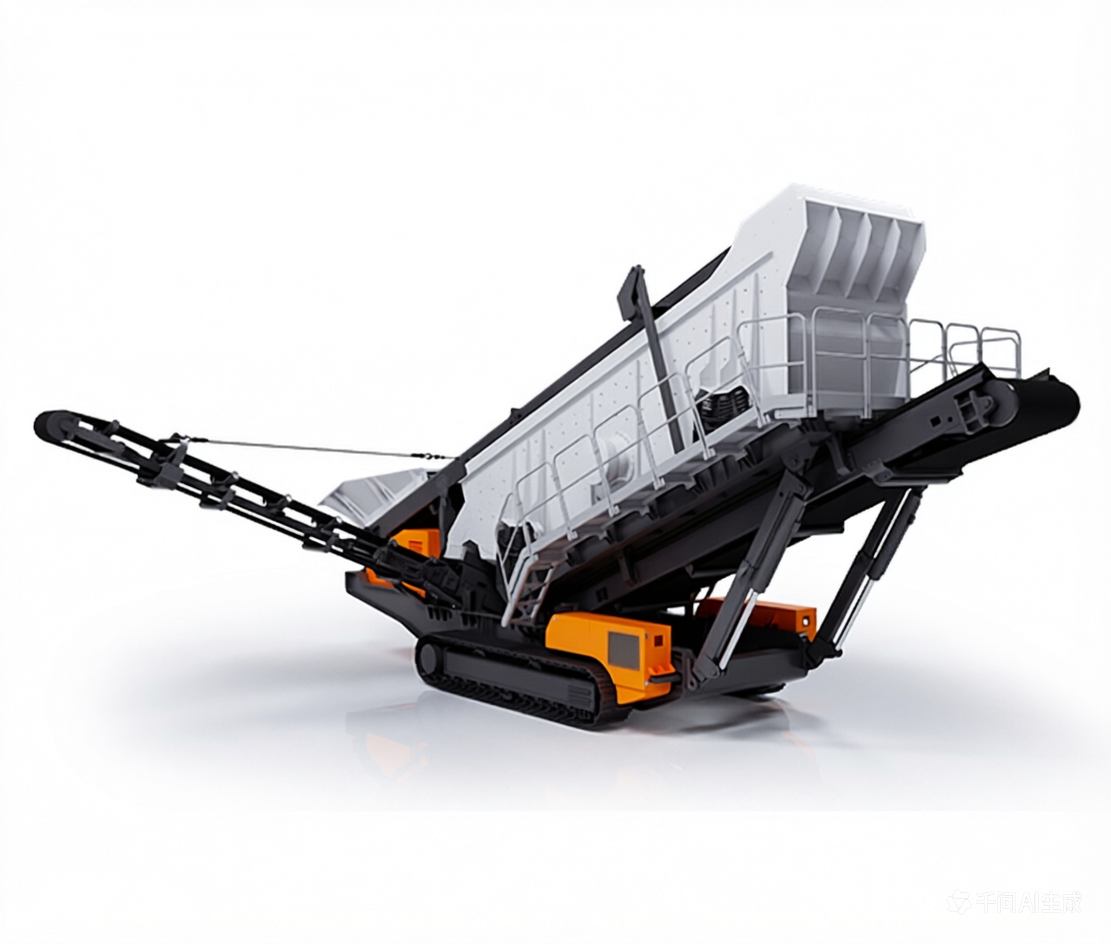

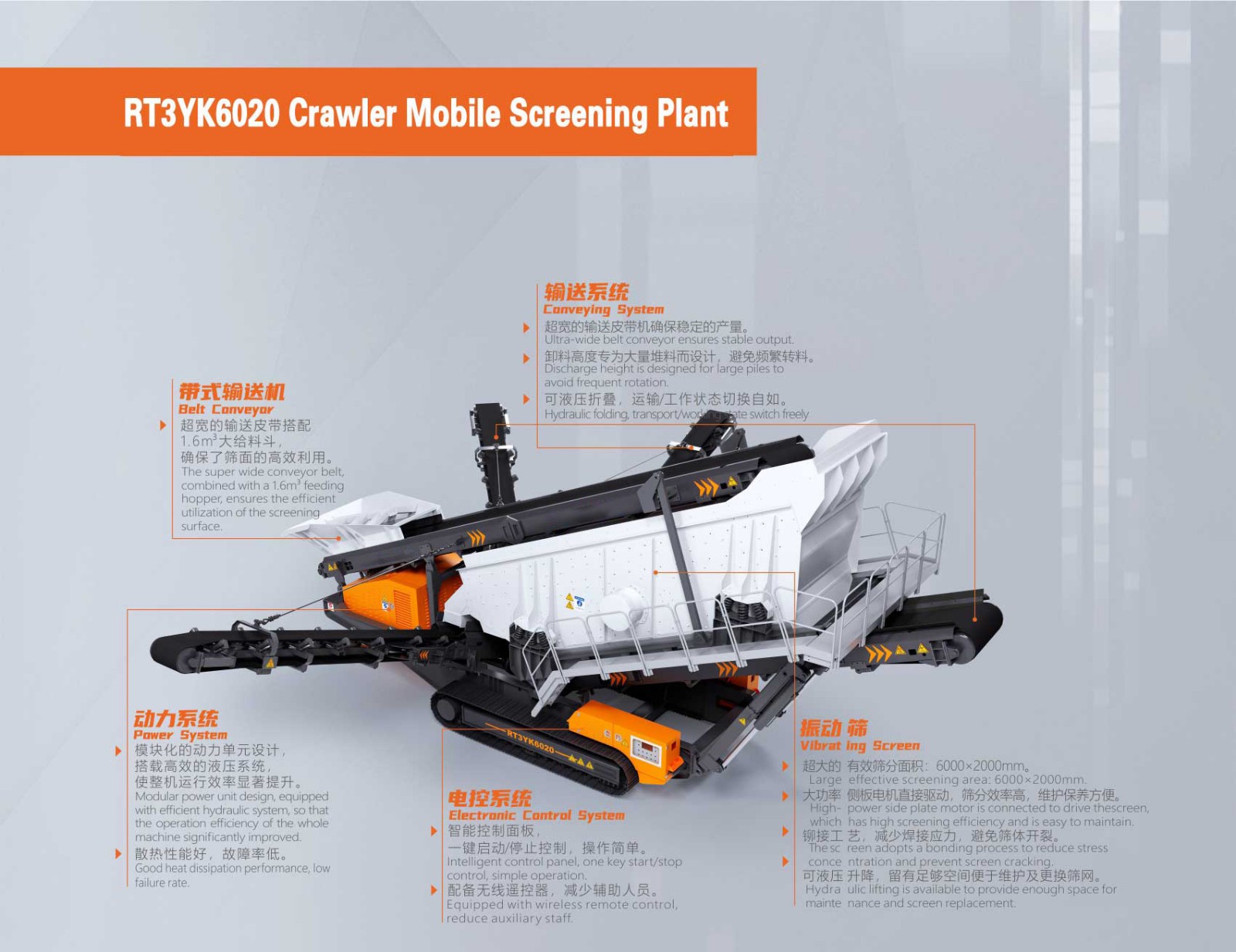

KLSFA Mobile Screening Plant is a highly efficient screening equipment that uses a crawler drive walking mode. It has advanced technology, complete functions, strong power and convenient transportation, making it suitable for complex and ever-changing construction environments.Because of its unique optimized dynamic design and intelligent process control system, it has a strong, durable, stable and reliable high efficiency screening capacity.
Product Parameters
| Parameter | Unit | RT3YK6020 |
| Feeding Equipment - Maximum Feeding Size | mm | 150 |
| Feeding Equipment - Feeding Height | mm | 2400 |
| Feeding Equipment - Hopper Volume | ㎥ | 3 |
| Feeding Equipment - Feeding Capacity | t/h | 300 |
| Feeding Belt - Belt Width | mm | B1000 |
| Screener - Screen Size | mm | 6000x2000 |
| Screener - Number of Screen Layers | / | 3 |
| Coarse Materia Conveyor Belt - Belt Width | mm | B500 |
| Coarse Materia Conveyor Belt - Unloading Height | mm | 3700 |
| Medium Materia Conveyor Belt - Belt Width | mm | B500 |
| Medium Materia Conveyor Belt - Unloading Height | mm | 3700 |
| Fine Materia Conveyor Belt - Belt Width | mm | B500 |
| Fine Materia Conveyor Belt - Unloading Height | mm | 3700 |
| Finished Product Conveyor Belt - Belt Width | mm | B1000 |
| Finished Product Conveyor Belt - Unloading Height | mm | 4000 |
| Entire Machine - Engine Power | kW | 90 |
| Entire Machine - Equipment Weight | t | 35 |
| Entire Machine - Processing Capacity | t/h | 300 |
| Entire Machine - Working Size | m | 13.0x13.2x5.6 |
| Entire Machine - Transportation Dimension | m | 14.5x3.2x3.8 |
