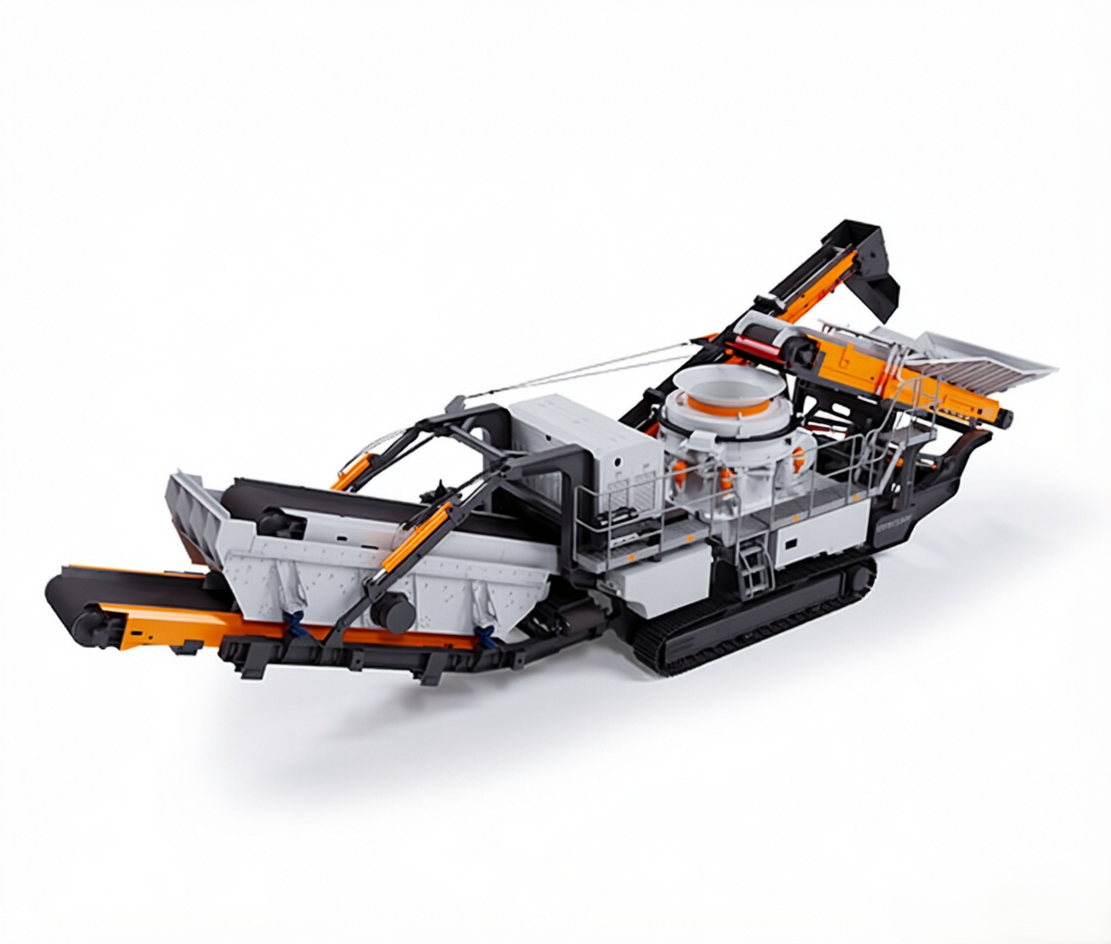

KLSFA Crawler Mobile Cone Crushing Plant is equipped with the world's most widely used and sold multi-cylinder hydraulic cone crusher which integrates the latest research achievements in crushing technology, hydraulic technology, computer technology and manufacturing technology. Different chamber shapes can be selected according to the material processing needs. The equipment is widely used in the production of sand and gravel aggregate and for environmental protection crushing.
Product Parameters
| Parameter | Unit | RT300CE |
| Feeder - Maximum Feeding Capacity | t/h | 430 |
| Feeder - Hopper Volume | ㎥ | 5-5.6 |
| Feeder - Feeding Height | mm | 3000-4000 |
| Crushing Host - Maximum Feeding Size | mm | 150 |
| Crushing Host - Output Particle Size Scope | mm | 22-51 |
| Crushing Host - Crusher Weight | t | 18.7 |
| Crushing Host - Crusher Power | kW | 250 |
| Main Belt - Discharge Height | mm | 3670 |
| Main Belt - Belt Width | mm | 1200 |
| Finished Product Belt - Discharge Height | mm | 3650 |
| Finished Product Belt - Belt Width | mm | 1000 |
| Material Return Belt - Belt Width | mm | 650 |
| Transition Belt - Belt Width | mm | 500 |
| Entire Machine - Engine Power | kW | 103 |
| Entire Machine - Entire Machine Power | kW | 318 |
| Entire Machine - Entire Machine Weight | t | 57 |
| Entire Machine - Processing Capacity | t/h | 200 |
| Entire Machine - Working Dimension | m | 19.5x4x4.5 |
| Entire Machine - Transportation Dimensions | m | 20.1x3.7x3.8 |
