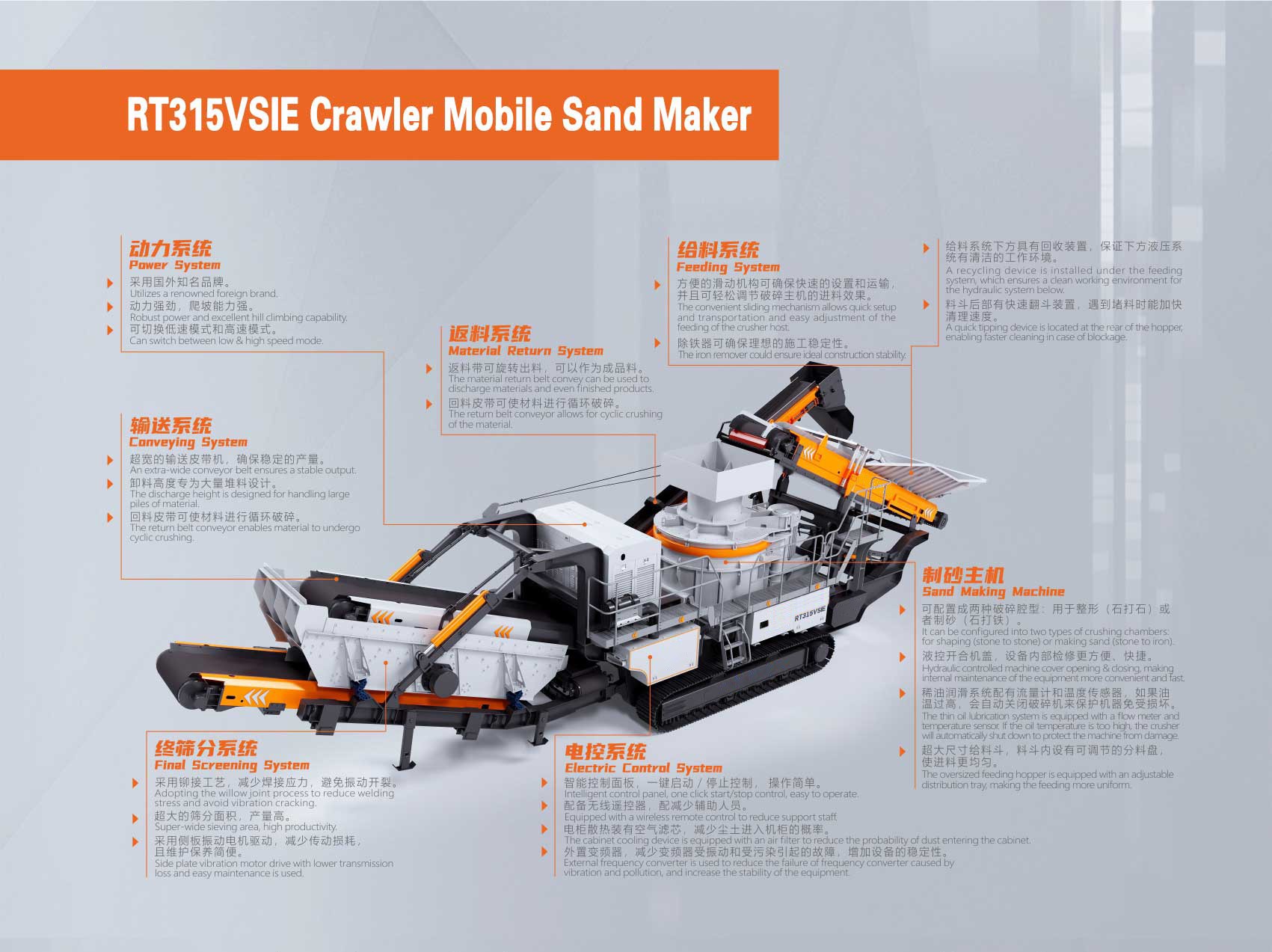

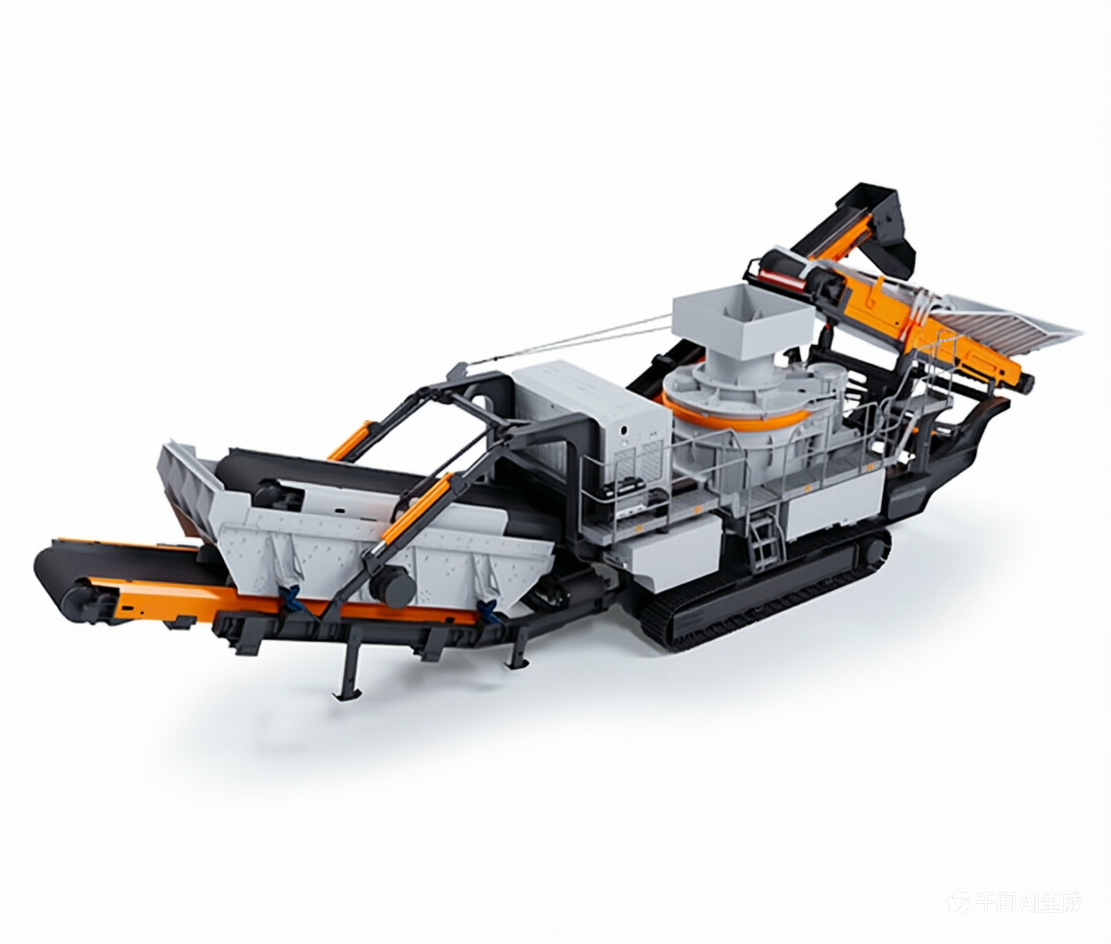

KLSFA Crawler Mobile Sand Maker adopts the most widely used and best-selling sand making machine in the world. This equipment integrates numerous latest research achievements such as crushing technology, hydraulic technology, computer technology, and manufacturing technology. You can choose to shape or sand according to the material processing needs. The products are widely used in building materials, chemicals, highways, mining, highways, high-speed railways, high-rise buildings, etc.
Product Parameters
| Parameter | Unit | RT315VSIE |
| Feeding Equipment - Feeding Capacity | t/h | 500 |
| Feeding Conveyor - Belt Width | mm | 1000 |
| Feeding Conveyor - Feeding Height | mm | 2950 |
| Pre-sieving - Length x Width | mm | 2000x1200 |
| Crusher - Vertical Shaft Impact Crusher | / | SK2400 |
| Crusher - Feeding Particle Size | mm | 40 |
| Crusher - Discharge Particle Size | mm | 0-4.75 |
| Crusher - Crusher Power | kW | 315 |
| Main conveyor - Belt Width | mm | 1000 |
| The End Product Conveyor - Belt Width | mm | 1000 |
| The End Product Conveyor - Stacking Height | mm | 2500 |
| Return Sieve - Length x Width | mm | 4500x1600 |
| Transmission Conveyor - Length x Width | mm | 4500x1600 |
| Return Conveyor - Belt Width | mm | 550 |
| Entire Machine - Total Power | kW | 364.5 |
| Entire Machine - Entire Machine Weight | t | 55 |
| Entire Machine - Processing Capacity | t/h | 60-80 |
| Entire Machine - Entire Machine Traveling Speed | km/h | 0.8-1.2 |
| Entire Machine - Transportation Dimensions | m | 20x3.9x3.8 |
