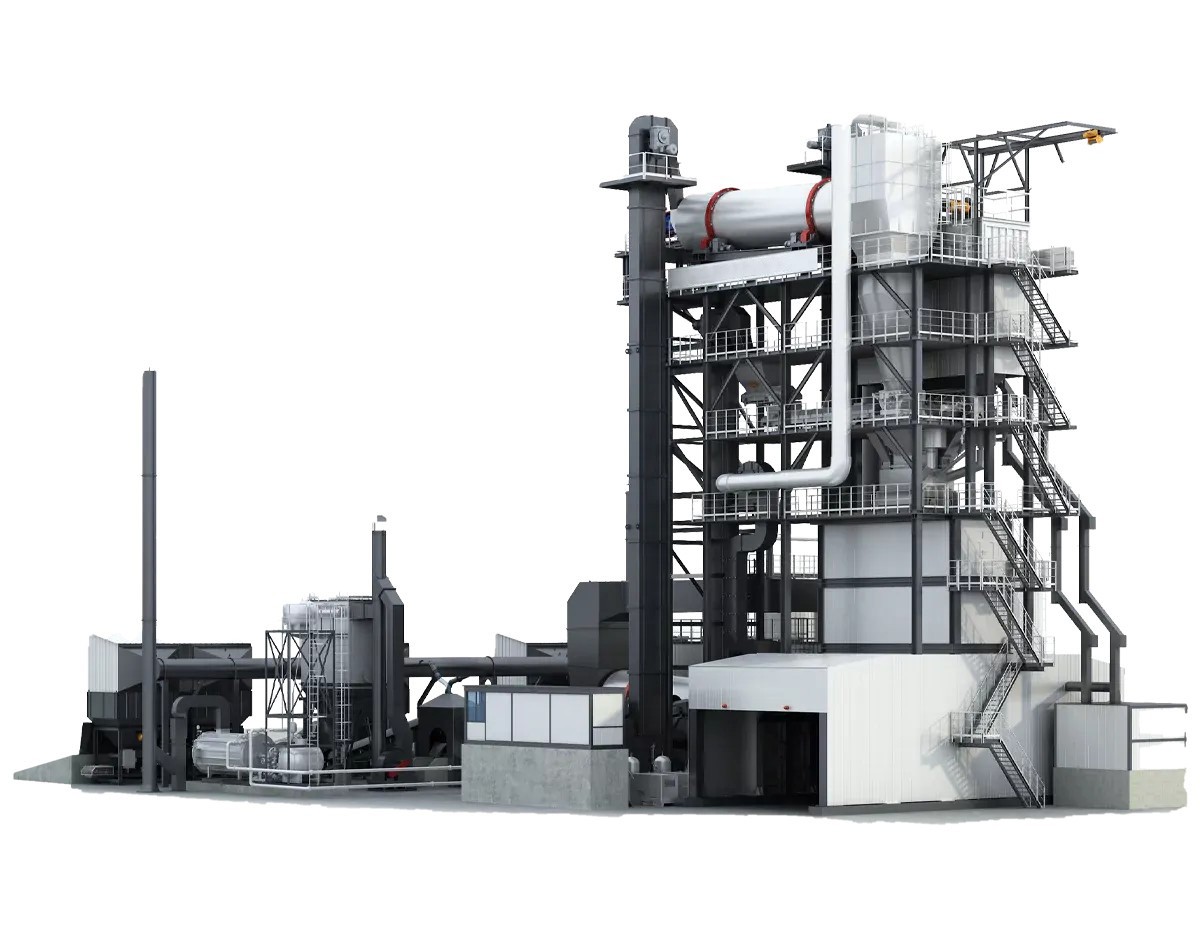

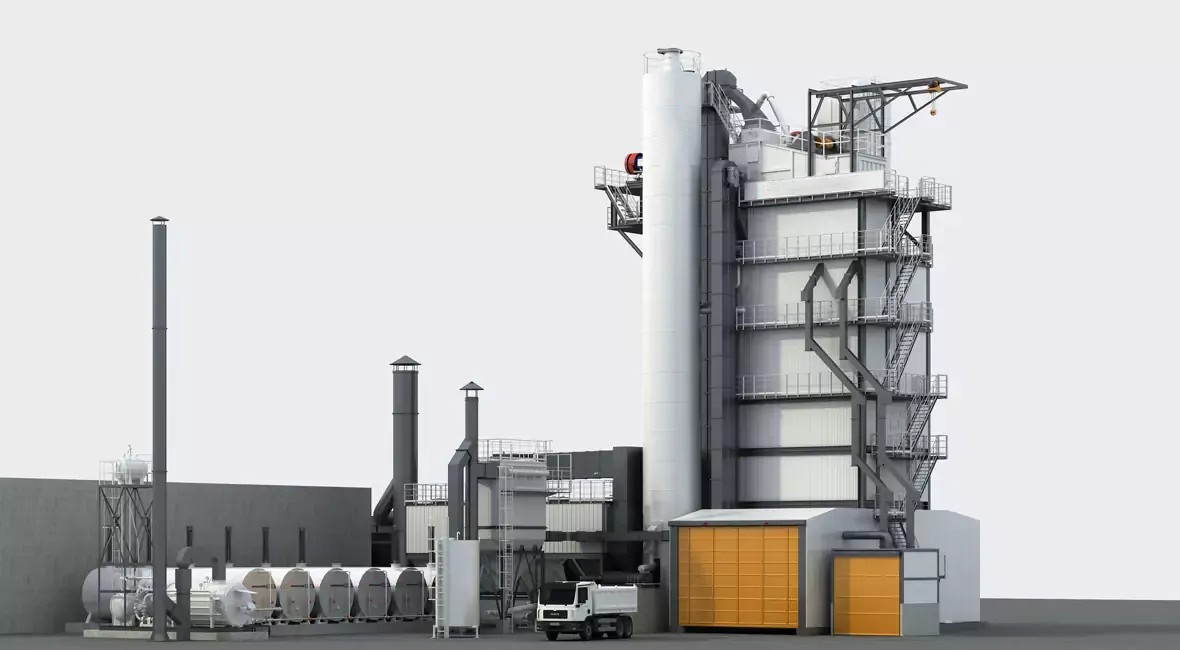

LBGZ Series Integrated (Virgin+Hot Recycling) Asphalt Batching Plant

LBGZ Series Integrated (Virgin+Hot Recycling) Asphalt Batching Plant

The LBGZ Series Integrated Asphalt Batching Plant is a new type of asphalt mixing that uses hot mixing and regeneration as the main part. The equipment has an advanced structure and can achieve superior asphalt concrete regeneration functions. The equipment has been improved on the basis of the traditional conventional primary + regenerated attached tower structure to achieve an integrated design of primary and regenerated. Compared with the traditional structure, this new structure can easily carry more admixtures, such as: regeneration cold additive production, anti-rutting agent, wood fiber, Butonite asphalt, colored asphalt and other production functions, realizing one machine of multi-function, it is a good choice for urban commercial asphalt.

Product Parameters

Parameter	Unit	LBGZ2000	LBGZ3000	LBGZ4000	LBGZ5000
Quantity*capacity (cold feeders)	m³	5*10	5*15	6*15	6*15
Quantity*capacity(recycling cold feeders)	m³	2*9	2*9	2*9	2*9
Drying drum dimensions: diameter*length	m	2.25*9	2.5*10	2.8*11	2.9*12.5
Recycling drying drum dimensions: diameter*length	m	1.7*8	2.2*10	2.5*11	2.5*14
Maximum drying capacity at 5% moisture	t/h	160	240	320	400
Maximum recycling drying capacity at 3% moisture	t/h	80	130	160	200
Fuel	/	Light oil/heavy oil/natural gas (optional)
Filter	/	Gravity dust removal+bag filter dust removal
Mixer capacity	t	3	4	5	6.5
Mixing method	/	Horizontal twin shaft forced mixing
Hot mix storage silo	m³	14+14	22+22	27+27	30+30
Control system	/	Cloud interconnection, dual-computer synchronous control system
Rated capacity	t/h	160	240	320	400

Product Details

Product Overview　

Product Characteristics

1. The overall design of native regeneration, the mixer is enlarged and the output is hight.

2. No regeneration chute, low equipment height, reducing maintenance.

3. Overall design, large safe space for maintenance.

4. The mixer is repositioned to realize regeneration and discharge without chute, and there is no trouble of material sticky to the chut.

Introduction To Original Function Modules

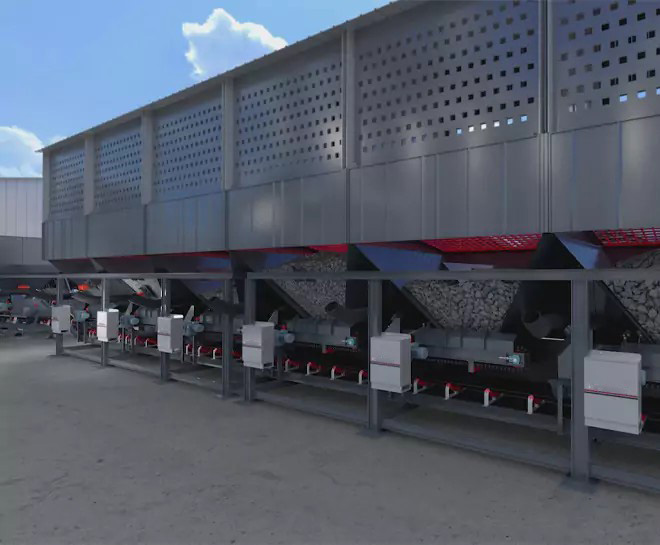

1. Cold aggregate silo The belt feeder can be frequency-controlled according to output settings and ratio requirements. The sand silo is equipped with internal vibration arch breaking and air cannon arch breaking devices, eliminating the need for manual digging. Configured with sound and light alarm function for material shortage.

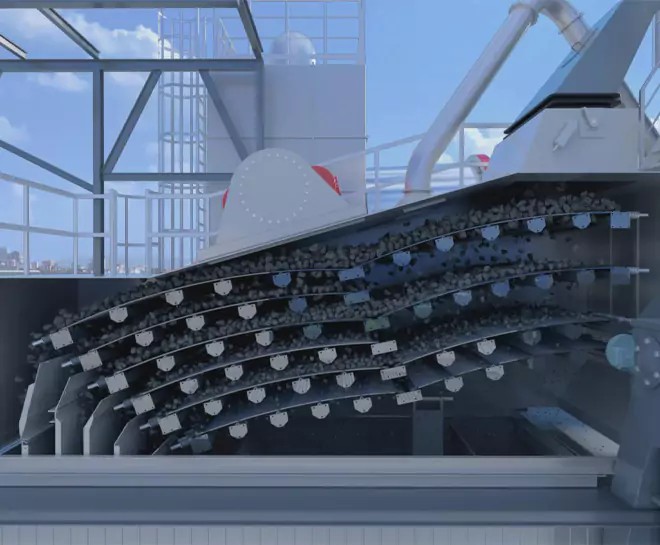

2. Vibrating screen The vibrating screen shell is covered with insulating rock wool for noise reduction and heat preservation. The vibration motor directly drives the screen body, with high transmission efficiency, maintenance-free and long life. Screening efficiency ≥95%, screen tension can be identified, easy tooperate.

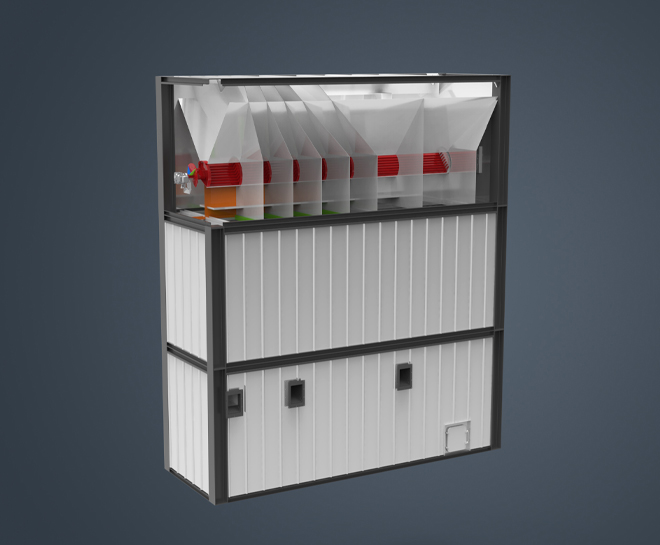

3. Hot aggregate bin Each bin is equipped with a continuous material level meter and a temperature sensor is installed in the sand bin. Configured with online sampling port, safe and convenient. The discharge door is a long and short double door with coarse and fine discharge functions.

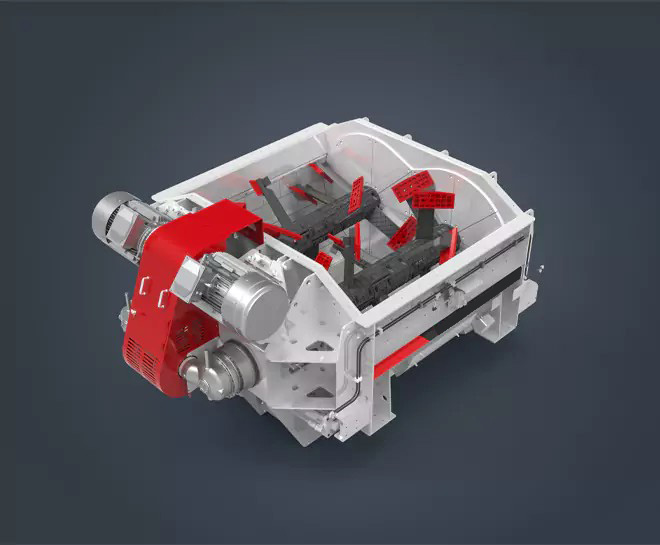

4. Mixer Using high-speed end flexible synchronous drive, three-dimensional mixing, high mixing effic. Wear-resistant blades and liners imported from Sweden, super highly wear-resistant. Interfaces reserved for adding thermal regeneration, wood fiber, foam asphalt, etc.

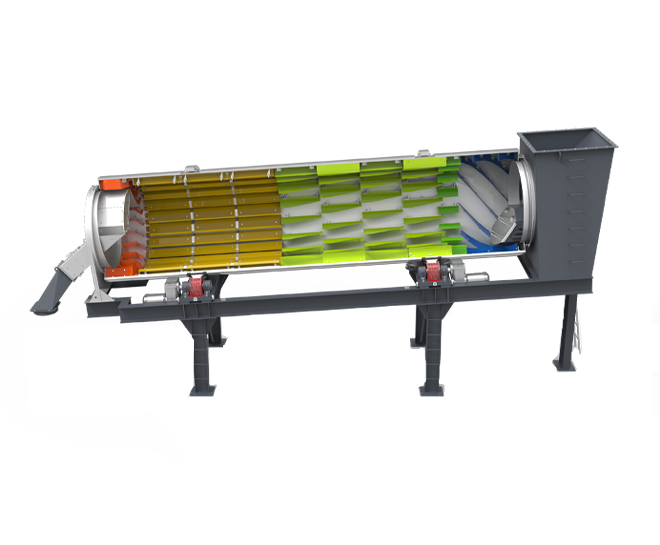

5. Drying drum Optimize the lifting blades to make the heating more uniform and improve the heat energy utilization rate. After strict calculation and laser positioning assembly, it is stable and reliable. The new drum with patented technology saves 10% energy than the original drying drum.

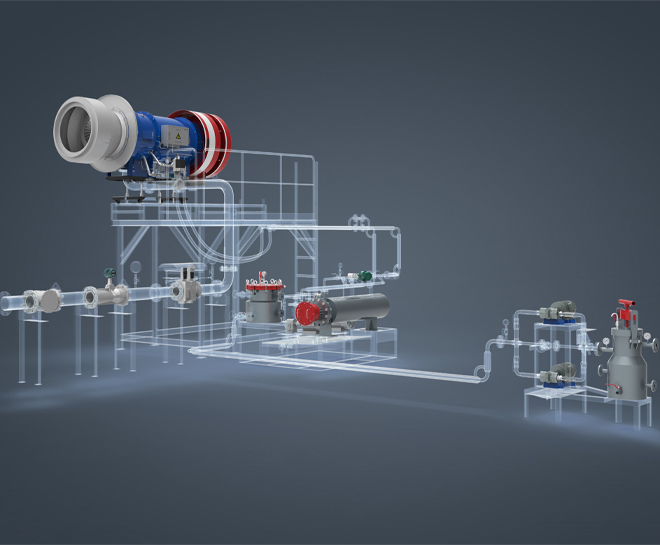

6. Intelligent CNC burner The system intelligently adapts to the combustion modes of different working conditions and oil products, making it worry-free and efficient. Patented technology for aggregate temperature measurement, one-button operation, self-adjusting parameters, easy operat. Intelligent control scheme, accurate temperature control, stable combustion and low emissions.
