LBYL Series Mobile Continuous Asphalt Batching Plant

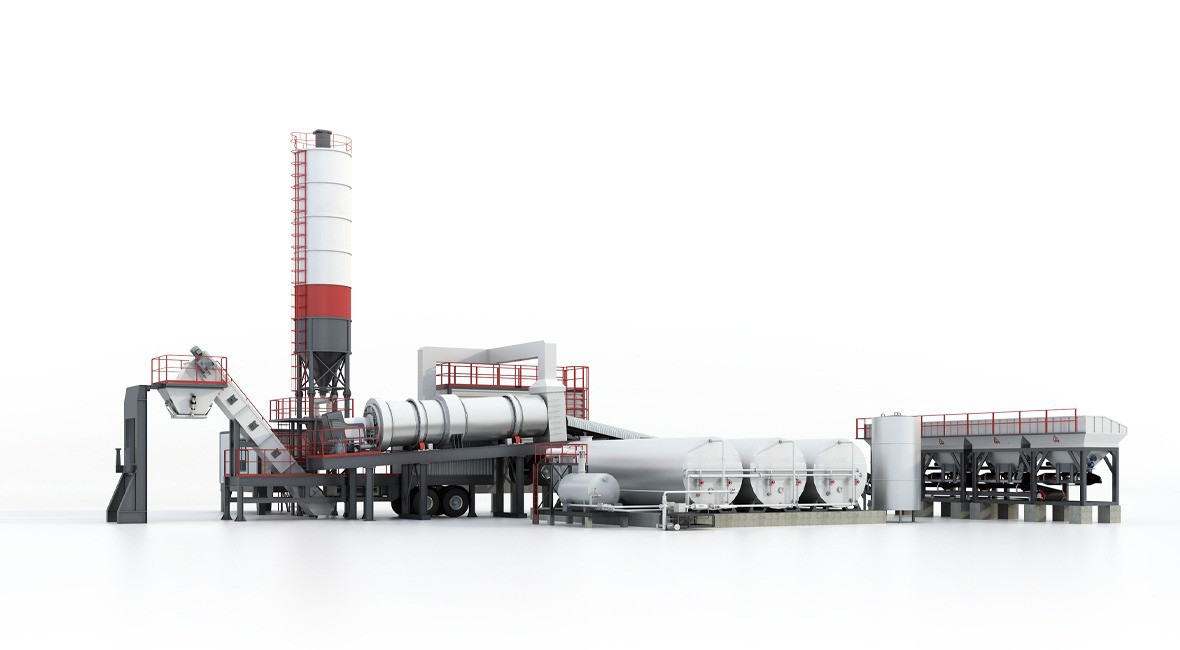

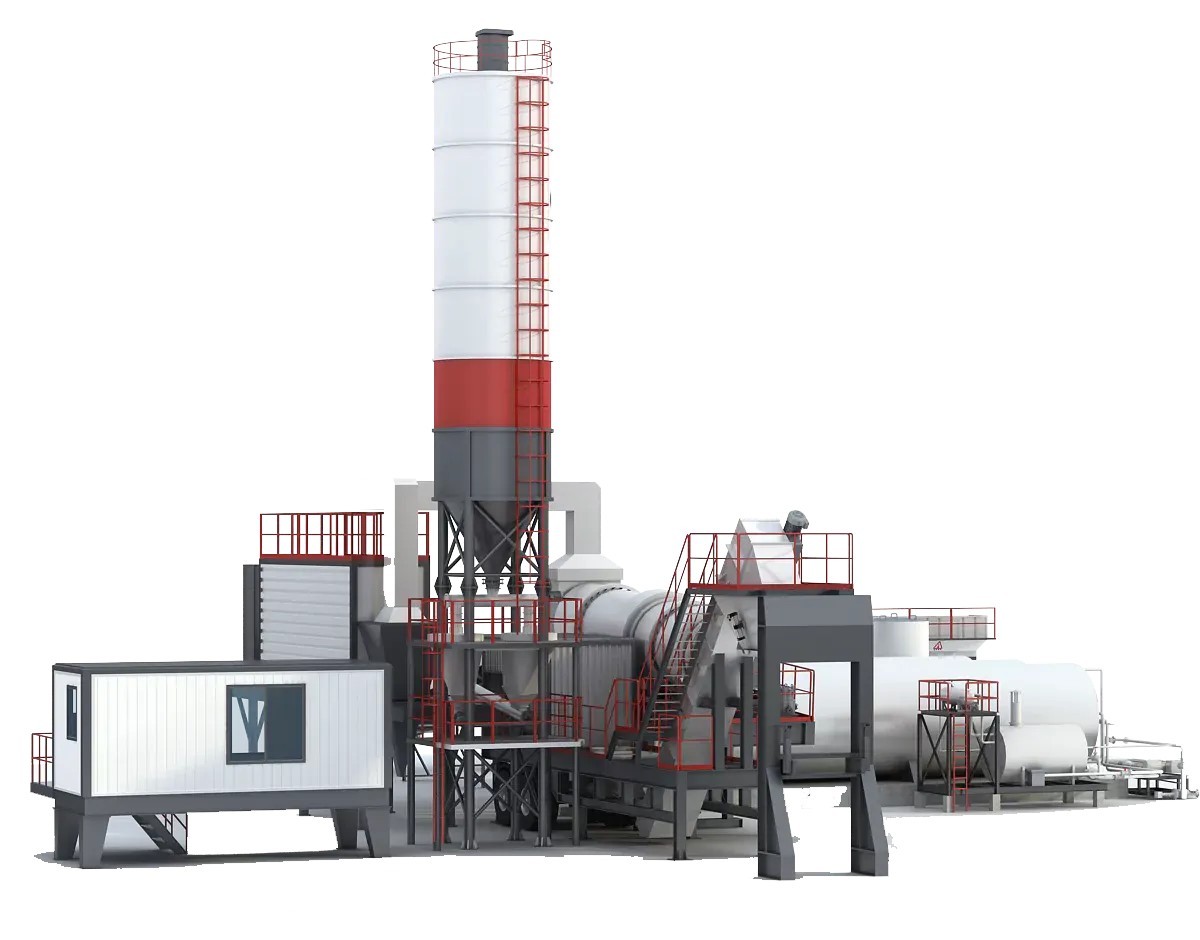

KLSFA LBYL Series Mobile Continuous Asphalt Batching Plant integrates the main functional components on a trailer, and other auxiliary functional modules are also designed to be mobile. It can be quickly installed and transferred. It has regular functions of intermittent asphalt mixing plant and can also be used to reduce fuel consumption and reduce pollutant emissions.

Product Parameters

Parameter	Unit	LBYL100
Quantity*capacity (cold feeders)	m³	410 510
Drying drum dimensions: diameter*length	m	1.8*7.5
Fuel	/	Light oil/heavy oil/natural gas (optional)
Filter	/	Gravity dust removal+bag filter dust removal
Scraper conveyor capacity	t/h	115
Buffer silo	m³	1
Discharge height	m	4
Rated capacity	t/h	100

Product Details

Product Overview　

Product Characteristics

1. The main components are highly integrated into one vehicle, making installation easy and fast towing and moving.

2. It occupies a small area, is low in height, and is very convenient for hoisting.

3. With recycling circuit, recycling materials can be achieved.

4. Continuous foam warm mixing is available.

Introduction To Original Function Modules

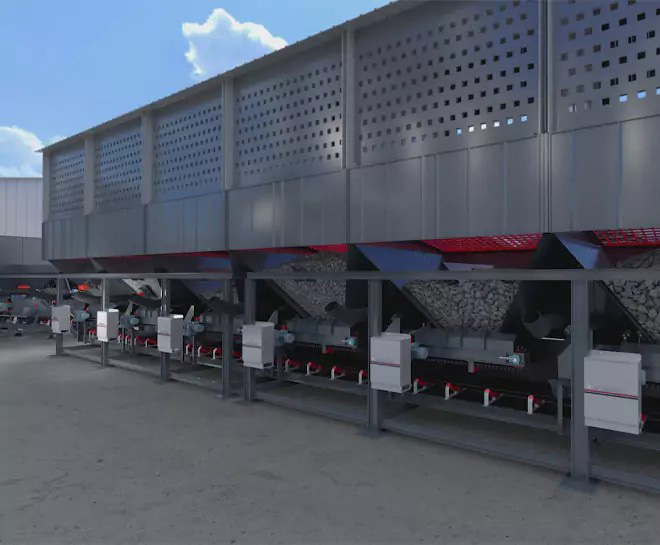

1. Cold material silo Large capacity cold material bin, no need for frequent loading by loader. Anti-arching structure for fine materials, smooth material feeding, ensuring continuous production of equipment.

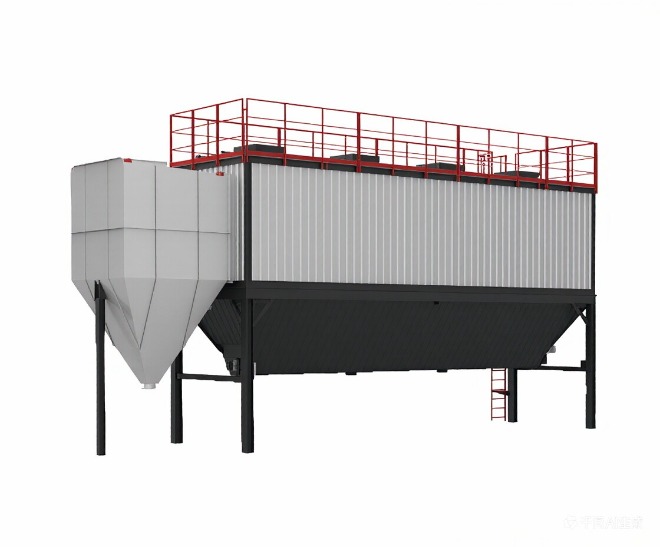

2. Dust removal system Step-by-step rotary backflush, intelligent control of cleaning frequency. The effective operating area can be as high as 98%, and the emission is in accordance with European standards (<20mg/Nm³).

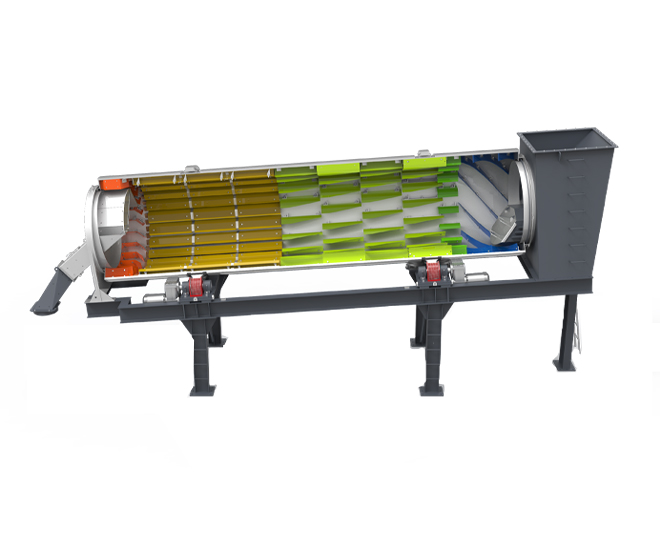

3. Drying drum Optimize the lifting blades to make the heating more uniform and the heat energy utilization rate is high. After strict calculation and laser positioning assembly, it is stable andreliable. Patented technology saves 10% energy than the original drying drum.

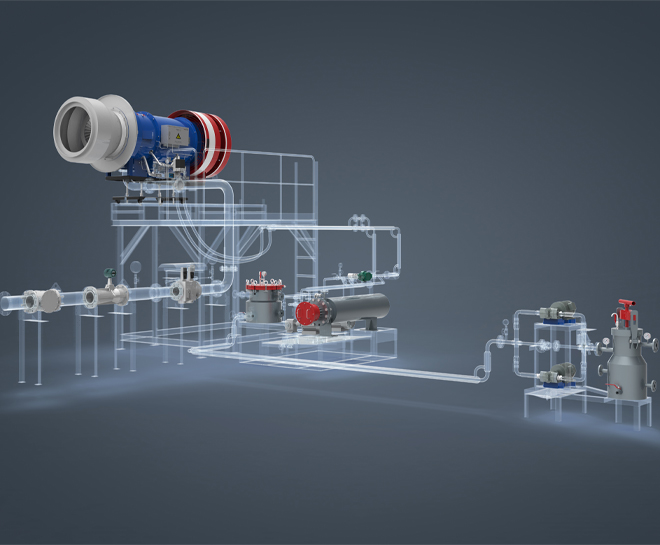

4. Intelligent CNC burner The system intelligently adapts to the combustion modes of different working conditions and oil products, making it worry-free and efficient. Patented technology for aggregate temperature measurement, one-button operation, self-adjusting parameters, easy operation. Intelligent control scheme, accurate temperature control, stable combustion and low emissions.
