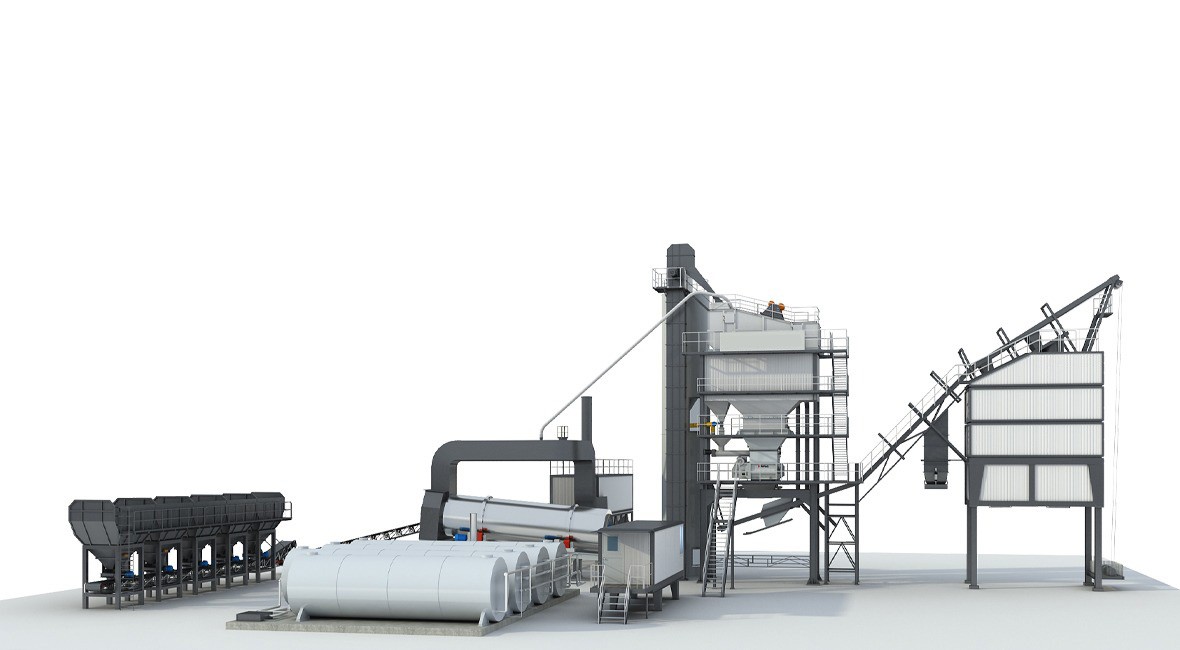

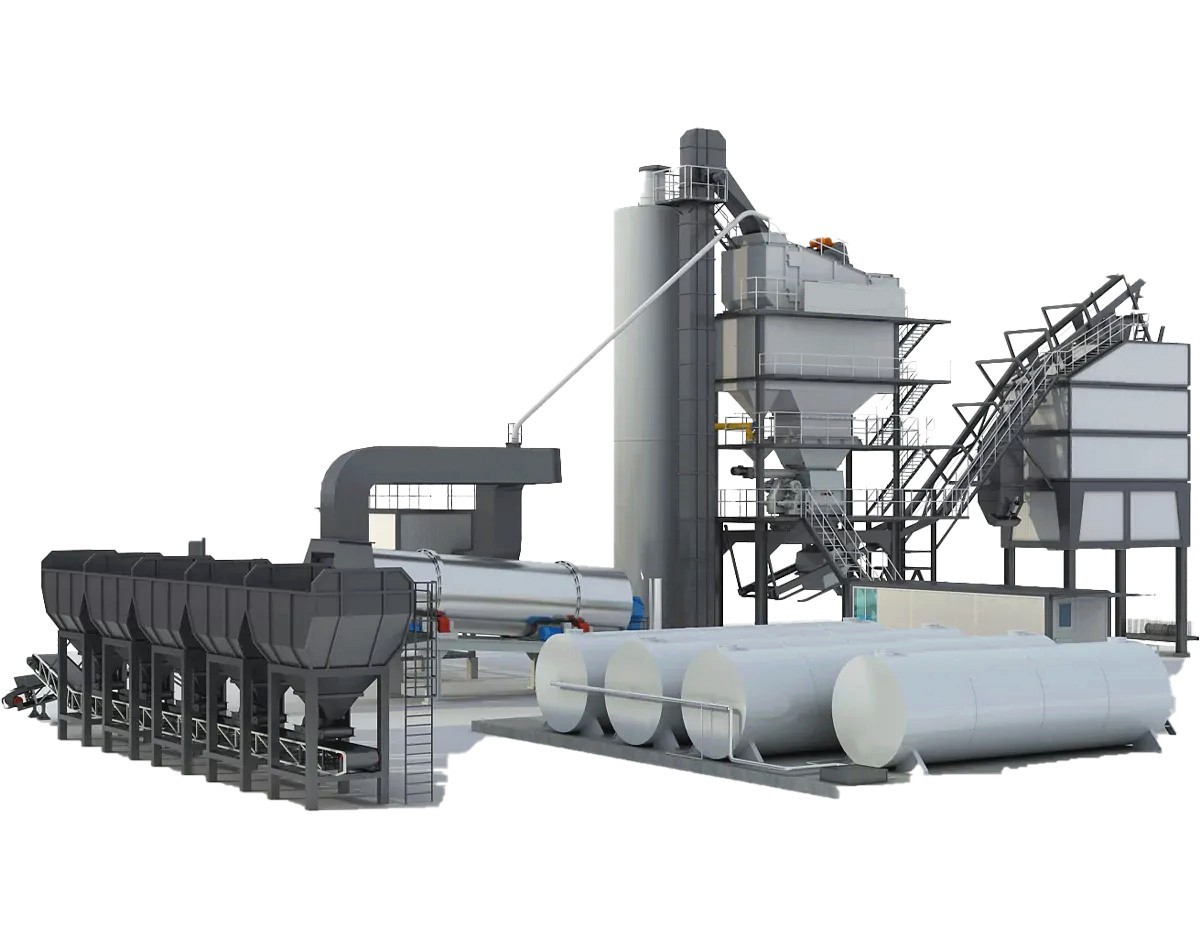

LB Series Side-mounted Asphalt Batching Plant

The LB Series Side-mounted Asphalt Batching Plant is a traditional structure equipment. The finished product warehouse is located side by side with the equipment. At the same time, the finished product warehouse has a large capacity, and the finished materials are transported by a hoist driven by a track trolley, which is suitable for working conditions that require large-capacity storage. The equipment performance is relatively stable and the height is low.

Product Parameters

Parameter	Unit	LB1500	LB2000	LB3000	LB4000	LB5000
Quantity*capacity (cold feeders)	m³	4*9	5*9	5*15	6*15	6*15
Drying drum dimensions: diameter*length	m	1.8*7.5	2*9.5	2.5*10	2.8*11	2.9*12.5
Maximum drying capacity at 5% moisture	t/h	120	160	240	320	400
Fuel	/	Light oil/heavy oil/natural gas (optional)
Filter	/	Gravity dust removal+bag filter dust removal
Mixer capacity	t	1.5	2	3	4	5
Mixing method	/	Horizontal twin-shaft forced mixing
Hot mix storage silo	m³	50	49+34	77+62
Control system	/	Cloud interconnection, dual-machine dual-control system
Rated capacity	t/h	120	160	240	320	400

Product Details

Product Overview　

Product Characteristics

1. Modular design, easy to install and relocate.

2. The equipment is low in height and easy to hoist and maintain.

3. The finished product warehouse has a large capacity and can be expanded according to customer needs.

4. Suitable for working conditions that require large-capacity storage.

Introduction To Original Function Modules
1. Cold aggregate silo The belt feeder can be frequency-controlled according to output settings and ratio requirements. The sand silo is equipped with internal vibration arch breaking and air cannon arch breaking devices, eliminating the need for manual digging. Configured with sound and light alarm function for material shortage.
2. Vibrating screen The vibrating screen shell is covered with insulating rock wool for noise reduction and heat preservation. The vibration motor directly drives the screen body, with high transmission efficiency, maintenance-free and long life. Screening efficiency >95%, screen tension can be identified, easy to operat.
3. Hot aggregate bin Each bin is equipped with a continuous material level meter and a temperature sensor is installed in the sand bin. Configured with online sampling port, safe and convenient. The discharge door is a long and short double door with coarse and fine discharge functions.
4. Mixer Using high-speed end flexible synchronous drive, three-dimensional mixing, high mixing efficiency. Wear-resistant blades and liners imported from Sweden, super highly wear-resistant. Interfaces reserved for adding thermal regeneration, wood fiber, foam asphalt, etc.
5. Drying drum Optimize the lifting blades to make the heating more uniform and improve the heat energy utilization rate. After strict calculation and laser positioning assembly, it is stable and reliable. The new drum with patented technology saves 10% energy than the original drying drum.
6. Intelligent CNC burner The system intelligently adapts to the combustion modes of different working conditions and oil products, making it worry-free and efficient. Patented technology for aggregate temperature measurement, one-button operation, self-adjusting parameters, easy operation. Intelligent control scheme, accurate temperature control, stable combustion and low emissions.
