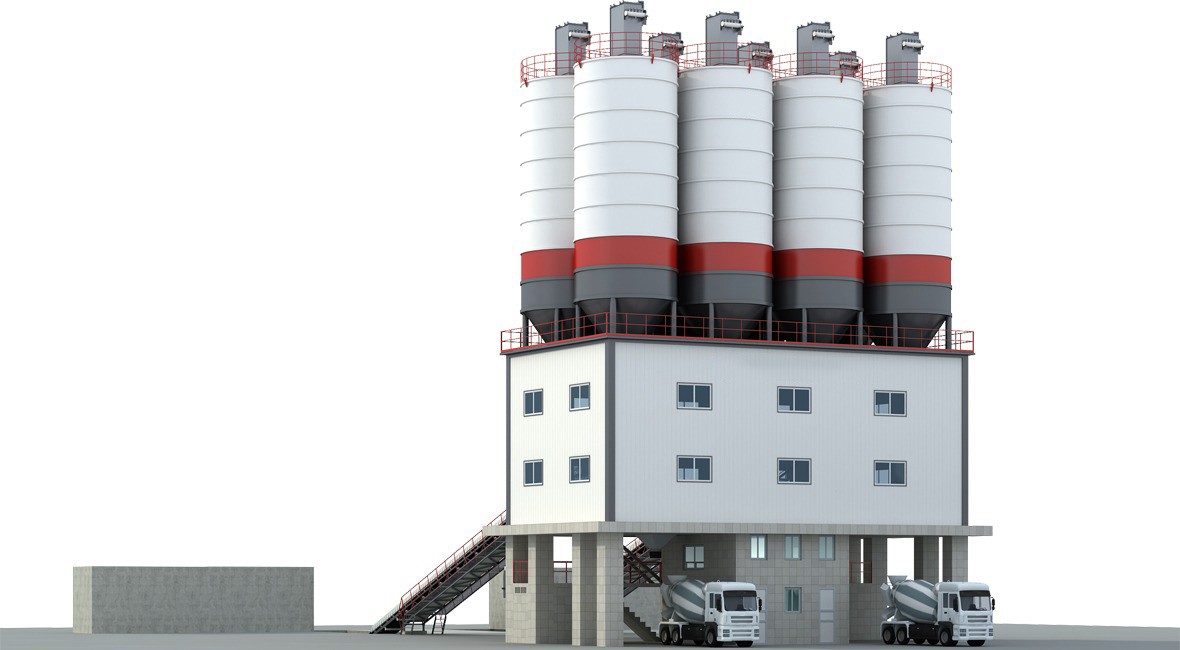

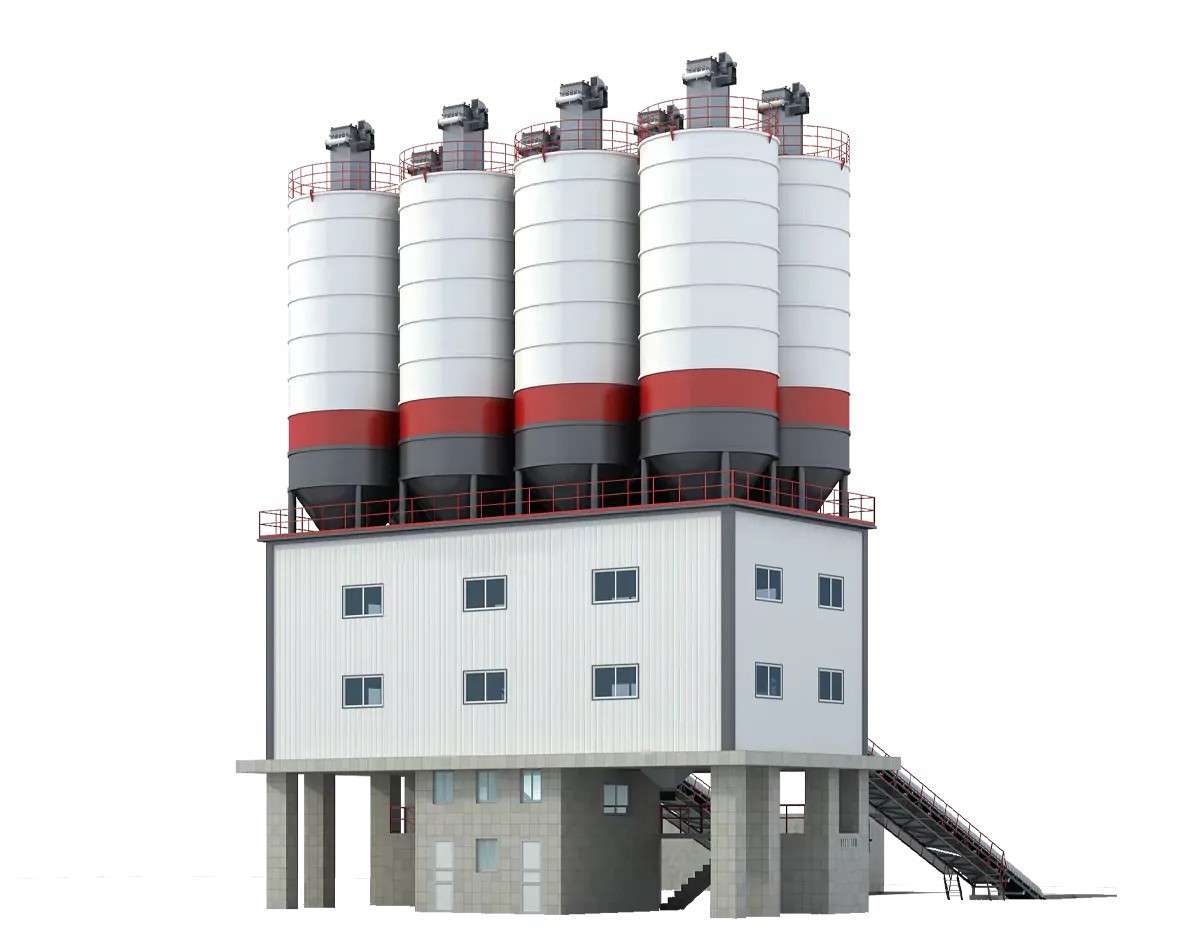

HZS Series Powder Silo Top-mounted Commercial Concrete Batching Plant

The HZS Series Powder Silo Top-mounted Commercial Concrete Batching Plant developed by KLSFA adopts a concrete structure design for the main building, integrating office and production areas. It has a large internal space and a small footprint. The overall package is beautiful and atmospheric, and has the advantages of energy saving, stability, environmental protection, and intelligence.

Product Parameters

Parameter	Unit	HZS180D	HZS240D	HZS270D	HZS300D	HZS360D
Theoretical productivity	㎥/h	180	240	270	300	360
Mixer	/	JS3000	JS4000	JS4500	JS5000	JS6000
Discharge volume	L	3000	4000	4500	5000	6000
Mixer power	kW	55*2	65*2	75*2	90*2	65*4
Total power	kW	230	265	310	340	420

Product Details

Product Overview　

Product Characteristics

1. The powder silo is placed on the top, with a compact structure and saving floor space.

2. Scientific structural design avoids material accumulation, pulling and dragging, and accurate weighing.

3. Low dust, low noise, low emission, green and environmentally friendly.

4. Dual computer synchronization, remote service, avoid downtime.

Introduction To Original Function Modules

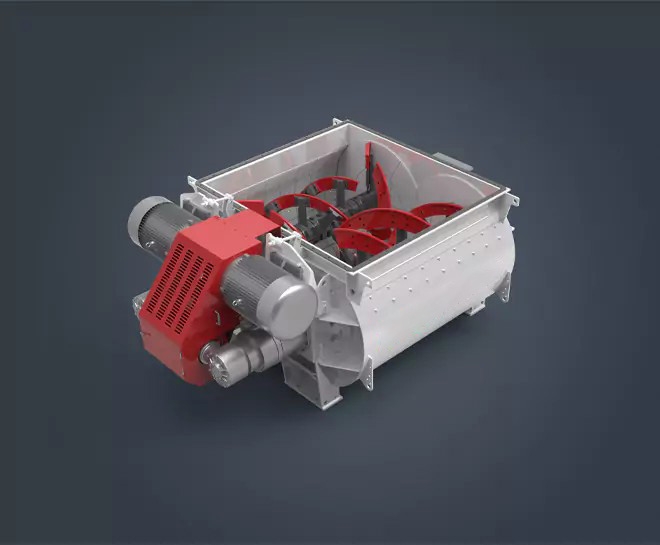

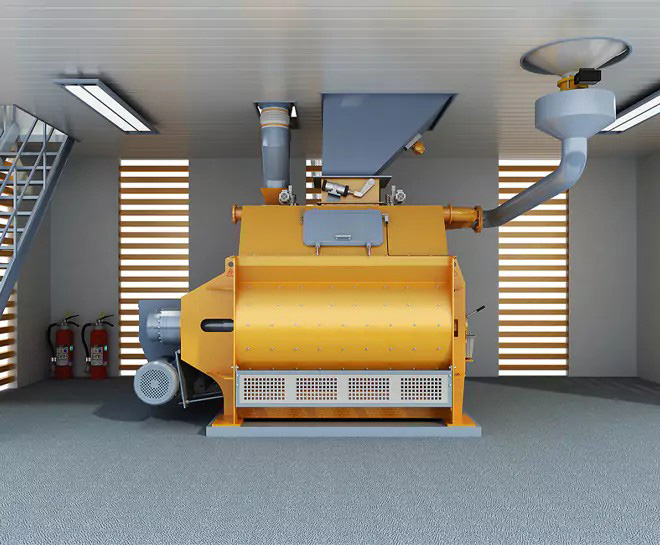

1. Mixer Advanced mixing mechanism and its core patented technology, energy saving and consumption reduction. Dual flow movement of materials, strong mixing, efficient mixing. No material will stick onto the mixing shaft, high wear resistance, and long life.
2. Mixing device Continuous spiral blades, high output, producing high performance concrete. Continuous vortex mixing, strong shear effect, uniform mixing. Efficient response to large-scale engineering production needs, shortening cycle time.

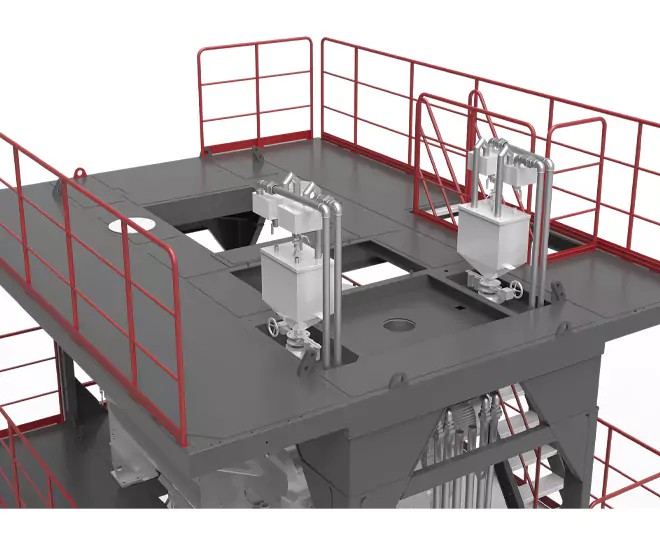

3. Additive weighing system Additives are weighed separately to meet the mixing requirements of high-strength concrete of different processes. Corrosion-resistant pipelines to ensure that the pipelines are corrosion-resistant and leak-free.

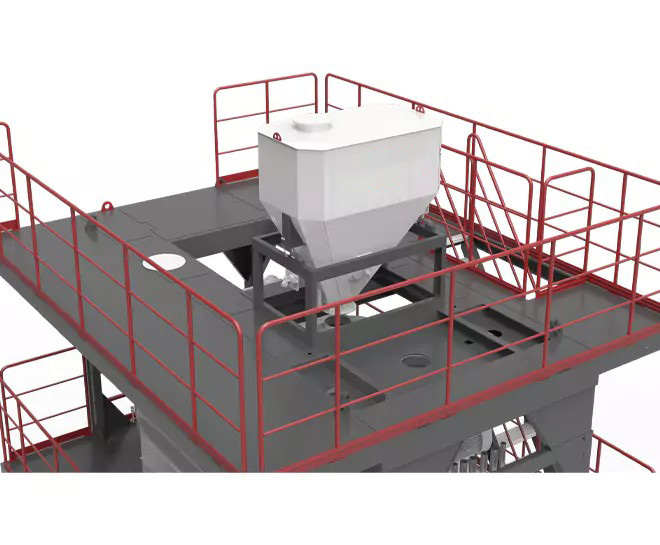

4. Powder weighing system Large angle weighing bucket, faster and smoother unloading, no residue. Anti-pull weighing (supporting weighing) system to avoid abnormal loss of powder.

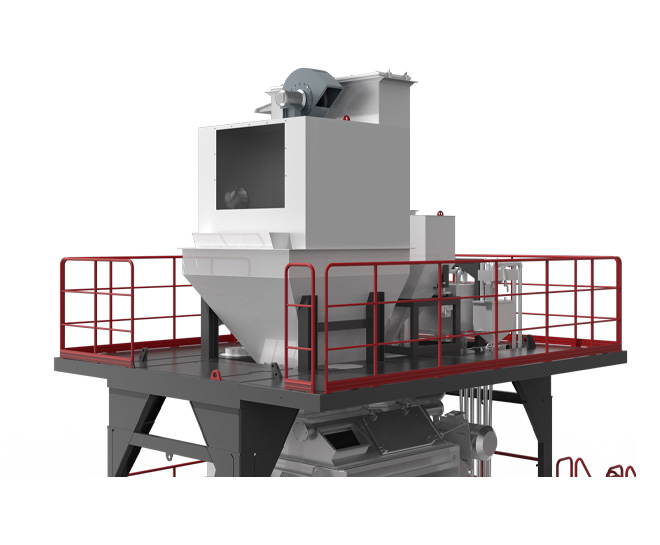

5. Integrated aggregate transfer hopper with dust collector Efficient temporary storage to increase production capacity. Advanced dust removal technology, energy-saving and efficient. Recycled powder can be reused to save costs.

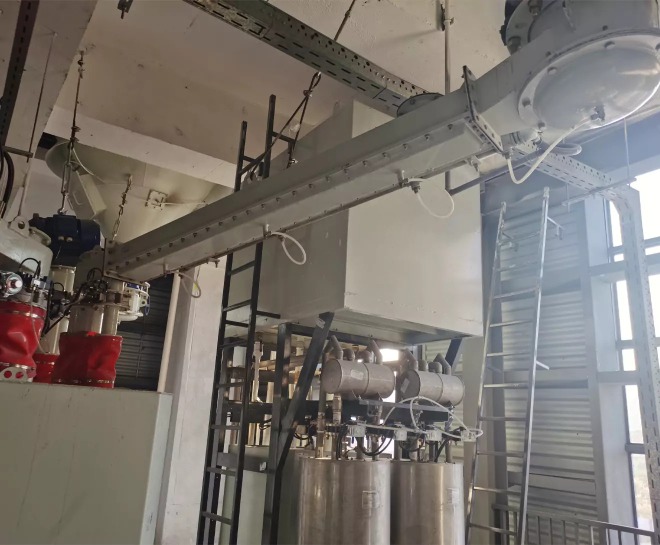

6. Powder air conveying chute Screw air compressor + air storage tank, stable air tank delivery height. Precise metering of large and small butterfly valves to improve accuracy. Optimized exhaust system to ensure balanced air pressure on powder scale.
