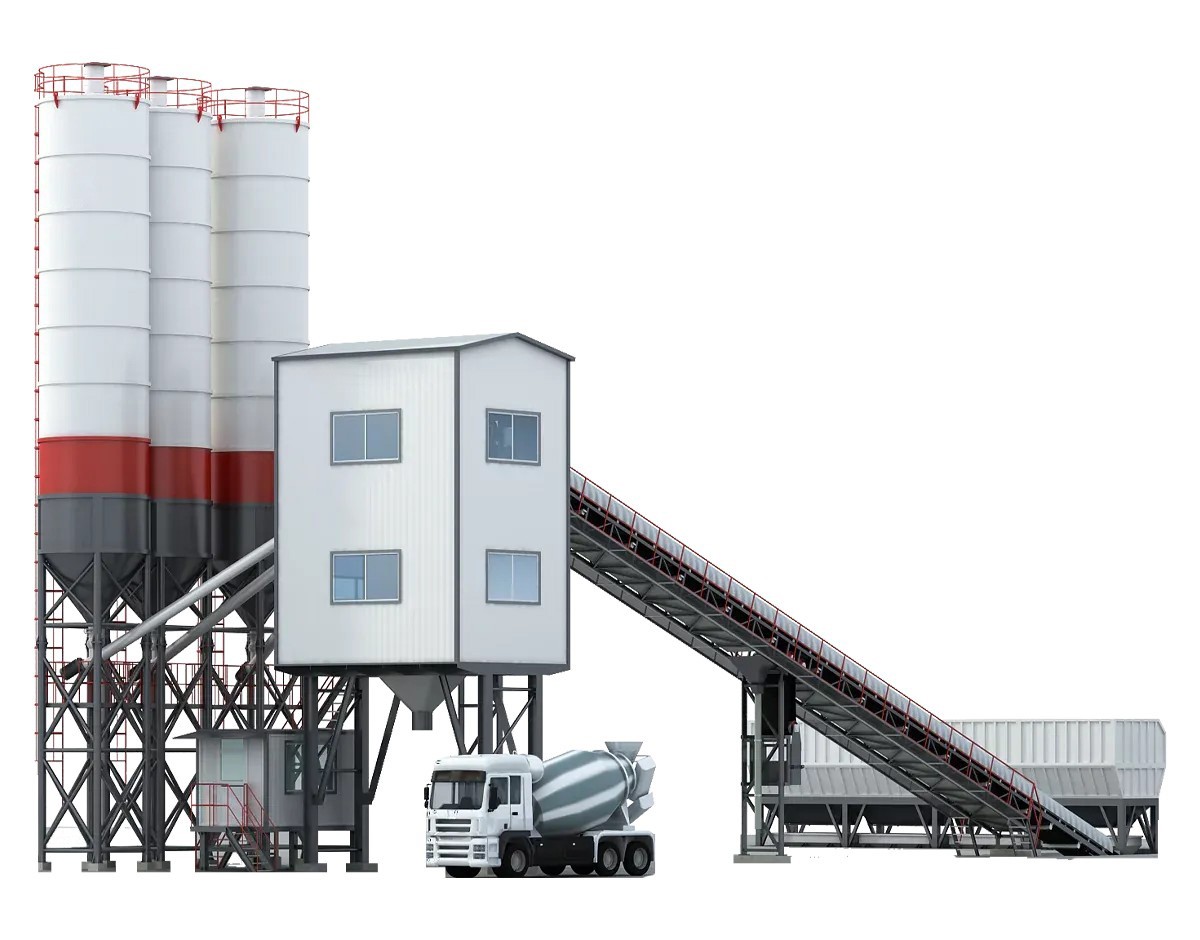

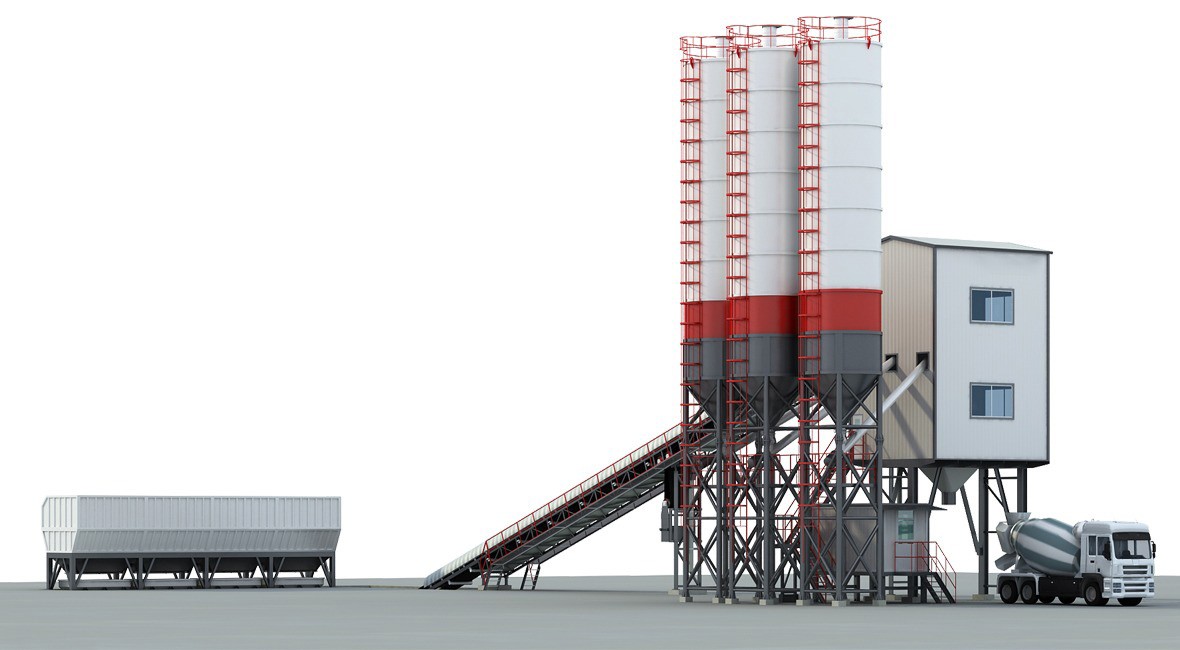

HZS Series Concrete Batching Plant for Engineering and High-speed Railway Project

KLSFA Engineering Concrete Batching Plant is highly adapted to the requirements of high-speed railway, engineering construction and other working conditions, ensuring the accuracy of metering and batching, the homogeneity of mixing, and meeting the requirements of the different aggregate feeding process. The equipment occupies a small area and is easy to install and relocate.

Product Parameters

Parameter	Unit	HZS60G	HZS90G	HZS120G	HZS180G	HZS200G	HZS225G
Theoretical productivity	㎥/h	50	75	100	150	180	198
Mixer	/	JS1000	JS1500	JS2000	JS3000	JS4000	JS4500
Discharge volume	L	1000	1500	2000	3000	4000	4500
Mixer power	kW	22*2	30*2	37*2	55*2	65*2	75*2
Total power	kW	110	140	160	215	245	265

Product Details

Product Overview　

Product Characteristics

1. Modular design, easy installation and relocation.

2. Small footprint and strong site adaptability.

3. Aggregates are measured separately, accurately proportioned, and quality improved.

4. Highly adaptable to high-speed railway, engineering construction and other working conditions.

Introduction To Original Function Modules

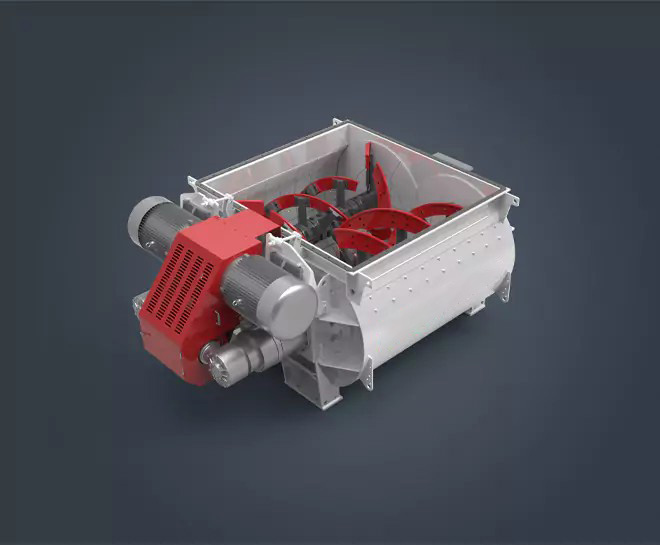

1. Mixer Advanced mixing mechanism and its core patented technology, energy saving and consumption reduction. Dual flow movement of materials, strong mixing, efficient mixing. No material will stick onto the mixing shaft, high wear resistance, and long life.

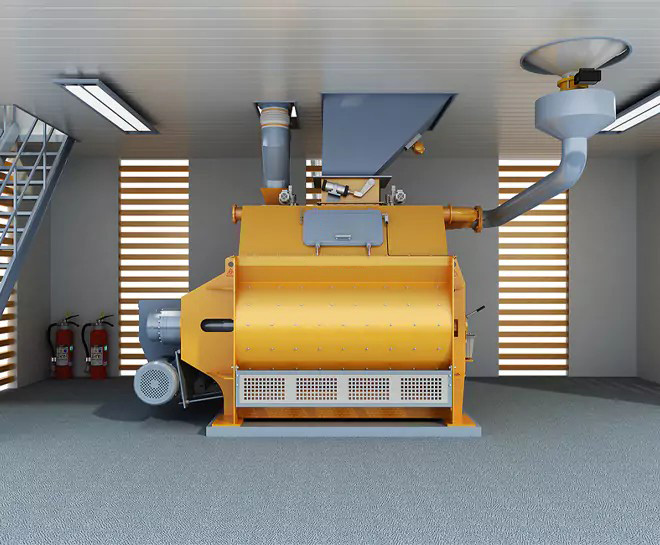

2. Mixing device Continuous spiral blades, high output, producing high performance concrete. Continuous vortex mixing, strong shear effect, uniform mixing. Efficient response to large-scale engineering production needs, shortening cycle time.

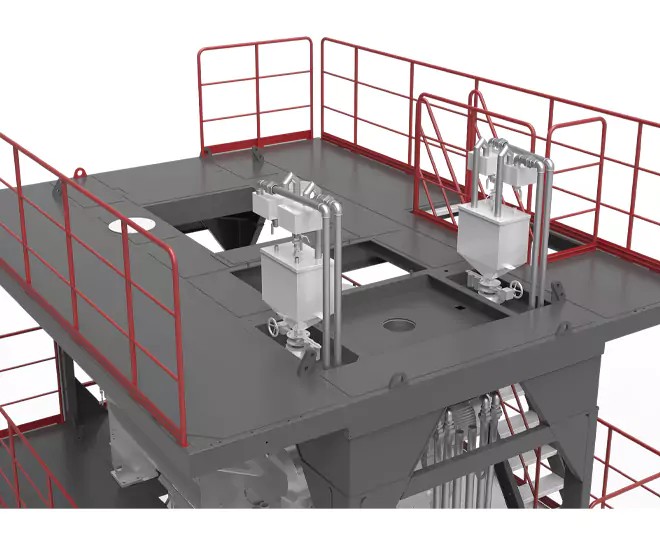

3. Additive weighing system Additives are weighed separately to meet the mixing requirements of high-strength concrete of different processes. Corrosion-resistant pipelines to ensure that the pipelines are corrosion-resistant and leak-free.

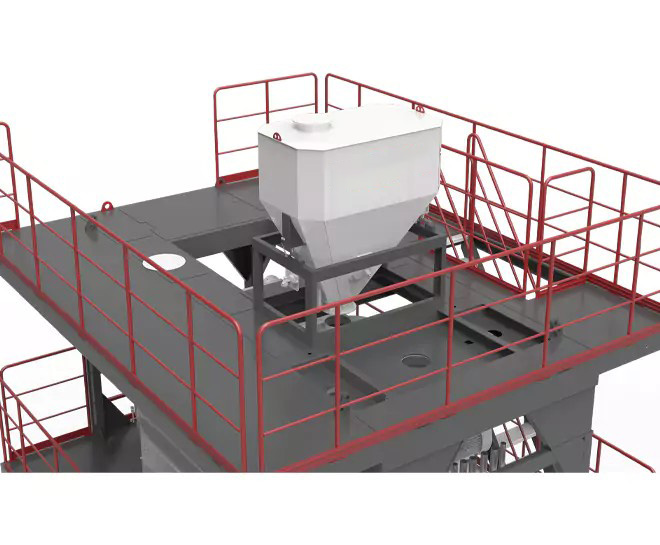

4. Powder weighing system Large angle weighing bucket, faster and smoother unloading, no residue. Anti-pull weighing (supporting weighing) system to avoid abnormal loss of powder.

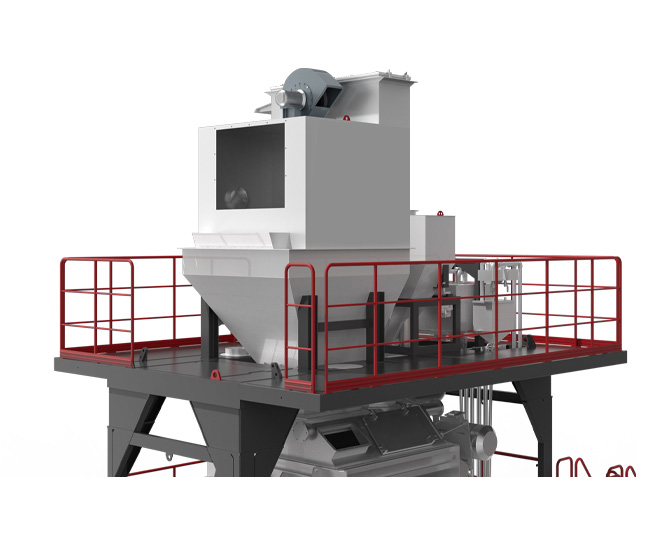

5. Integrated aggregate transfer hopper withdust collector Efficient temporary storage to increase production capacity. Advanced dust removal technology, energy-saving and efficient. Recycled powder can be reused to save costs
