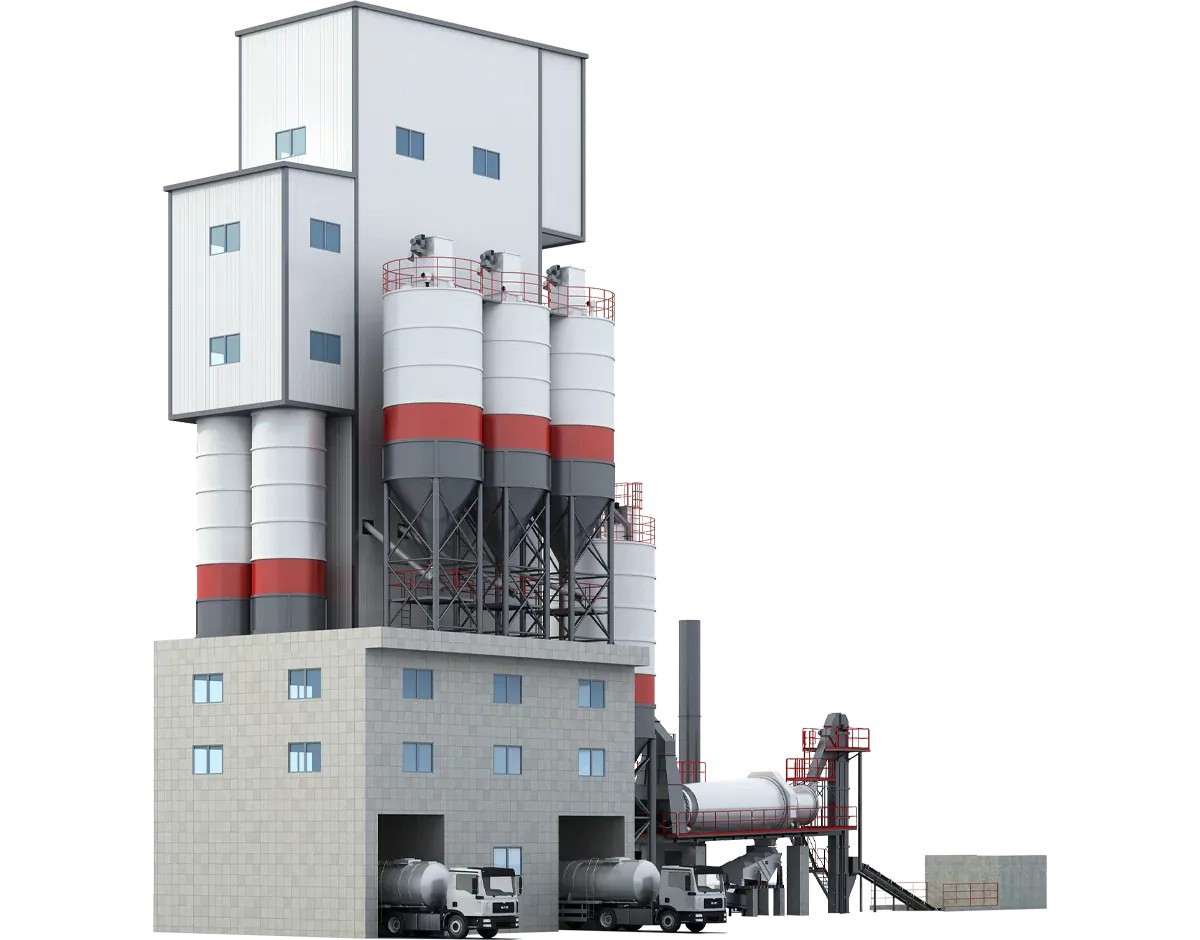

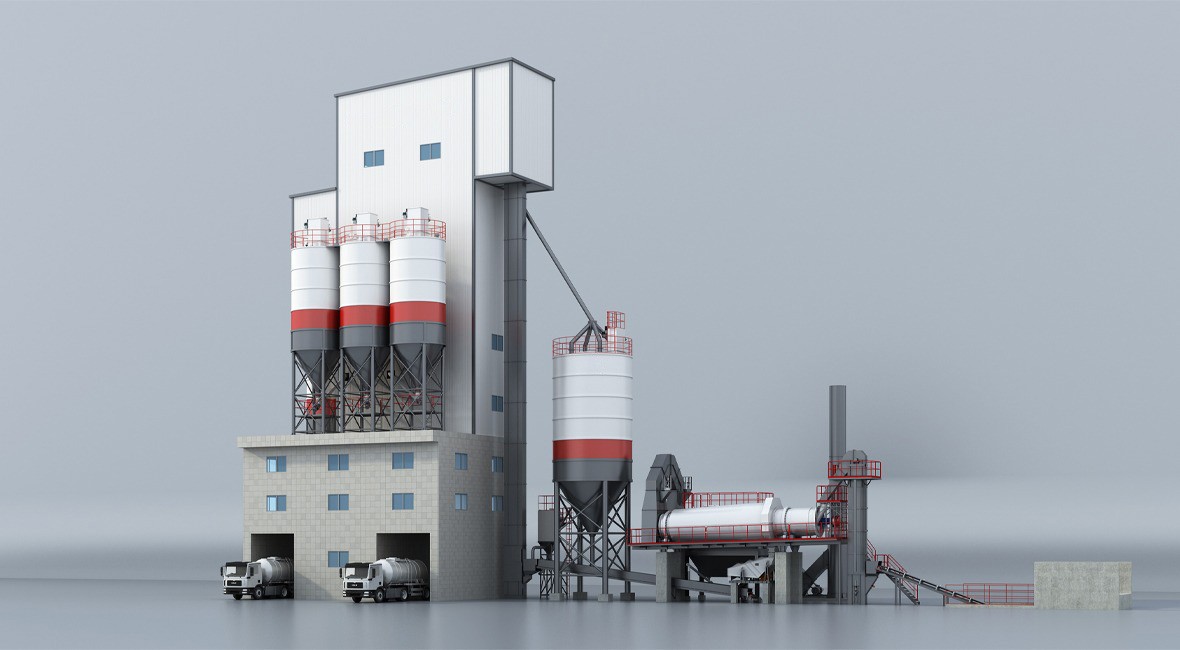

KLSFA tower type dry-mortar mixing plant, according to the production process from top to bottom layout, the production is smoother, suitable for the production of ordinary mortar and various special mortar, wide range of products, small cross-pollution of raw materials; It occupies a small area, has a grand appearance, and relatively low energy consumption. Compared with other process structures, the initial investment is relatively large.
Product Parameters
| Parameter | Unit | FBT1200 | FBT2000 | FBT3000 | FBT4500 | FBT6000 |
| Capacity | t/h | 10-20 | 20-40 | 40-60 | 60-80 | 80-110 |
| Installed power | kW | 240 | 260 | 280 | 310 | 390 |
| Occupied space (L×W×H) | m | 26*14*38 | 26*14*38.5 | 26*14*40 | 26*14*40 | 27*16*42 |
| Parameter | Unit | FBT1200 | FBT2000 | FBT3000 | FBT4500 | FBT6000 |
| Capacity | t/h | 10-15 | 15-25 | 25-35 | 35-50 | 45-60 |
| Installed power | kW | >190 | >220 | >250 | >310 | >370 |
| Occupied space (L×W×H) | m | 13*12*30 | 13*12*30 | 14*13*32 | 14*13*32 | 27*16*34 |
| Parameter | Unit | FBT1200 | FBT2000 | FBT3000 | FBT4500 | FBT6000 |
| Capacity | t/h | 10-15 | 15-25 | 25-35 | 35-50 | 45-60 |
| Installed power | kW | >220 | >250 | >280 | >340 | >400 |
| Occupied space (L×W×H) | m | 13*12*37 | 13*12*37 | 14*13*40 | 14*13*40 | 27*16*42 |
| Parameter | Unit | FBT1200 | FBT2000 | FBT3000 | FBT4500 | FBT6000 |
| Capacity | t/h | 10-15 | 15-25 | 25-35 | 35-50 | 45-60 |
| Installed power | kW | >190 | >220 | >250 | >310 | >370 |
| Occupied space (L×W×H) | m | 14*11*25 | 14*11*25 | 16*13*27 | 16*13*27 | 16*13*29 |
Product Details
| Product Overview |
| KLSFA tower type dry-mortar mixing plant, according to the production process from top to bottom layout, the production is smoother, suitable for the production of ordinary mortar and various special mortar, wide range of products, small cross-pollution of raw materials; It occupies a small area, has a grand appearance, and relatively low energy consumption. Compared with other process structures, the initial investment is relatively large. |
| Product Characteristics |
| 1. Mortar production equipment installation and production process from top to bottom layout. |
| 2. Equipment height is high, can produce a variety of products. |
| 3. No cross-pollution, low energy consumption. |
| 4. It occupies a small area and has a grand appearance. |
| Introduction To Original Function Modules | |
| 1. Mixing system The plough mixing device, high efficiency, good homogeneity, mixing ratio can reach 1:10000 frequency conversion mixing. Energy efficiency can be reduced by 25% compared with the normal speed. The blade and mixing arm are made of wear-resistant alloy cast iron and tungsten carbide wear-resistant layer. |  |
| 2. Drying drum Double return drying and cooling drum with discharge moisture content <0.5% and discharge temperature <65°C. Drum (gas) does not need hot air furnace structure, improve thermal efficiency and reduce the floor space. Can monitor the production operation data, fault alarm real-time prompt, operation is easy to use. |  |
| 3. Screening system Efficient and stable screening performance, with high screening efficiency. Unique screen mesh anti-blocking device, screen mesh self-cleaning. Quick disassembly access door, screen disassembly maintenance is convenient, low maintenance cost. |  |
| 4. Weighing system Accurate frequency conversion feeding, accurate ingredients, stable and reliable. Unique scale body structure, large angle without dead corners, quick and clean discharge. The scale outlet double valve design to prevent the mixer airflow interference. Additives scale multi-gear optional, matching different measurement accuracy requirements. |  |
| 5. Packaging system Complete set of automatic packaging, palletizing and packaging production line design to meet the needs of large-scale special mortar production users. Equipped with air valve type valve port, impeller type valve port, ton bag combination to meet
