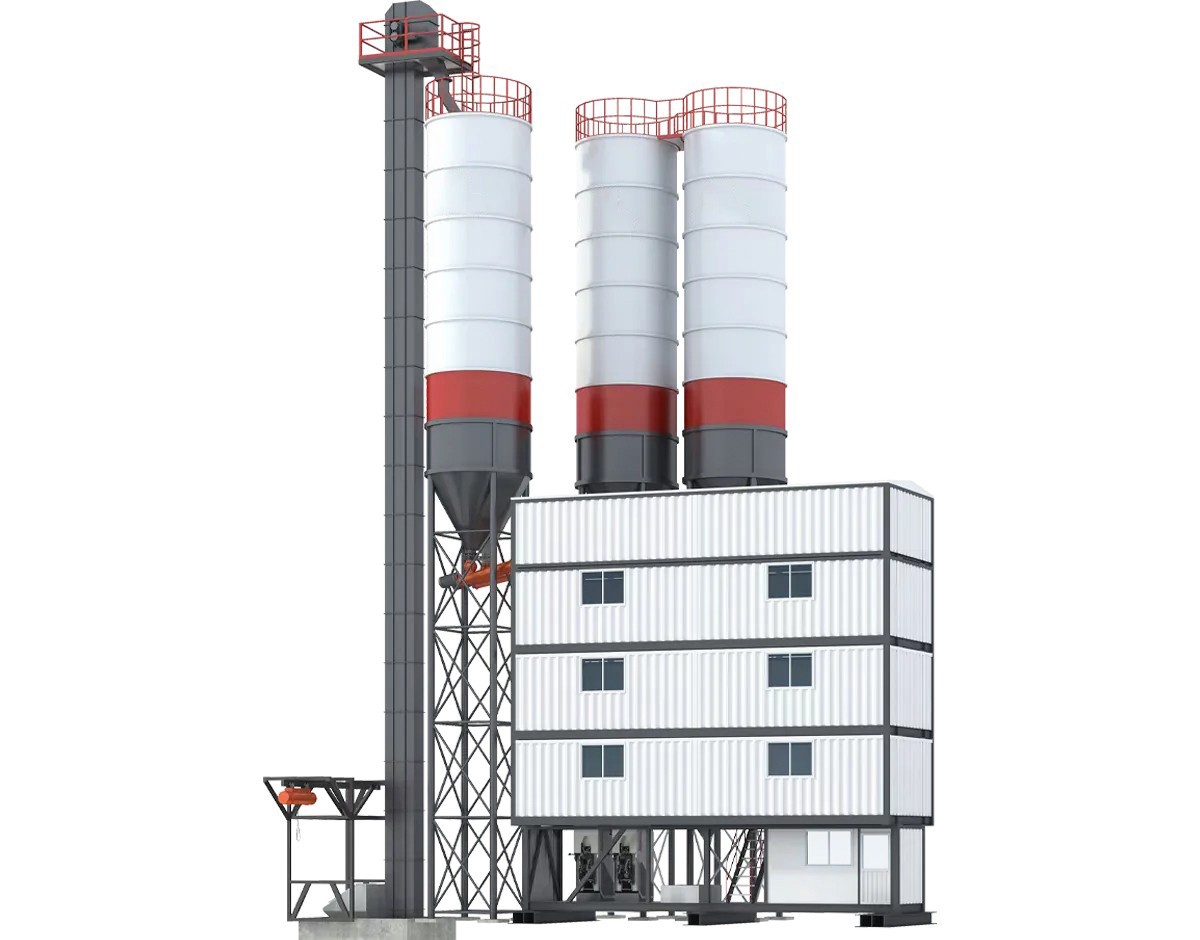

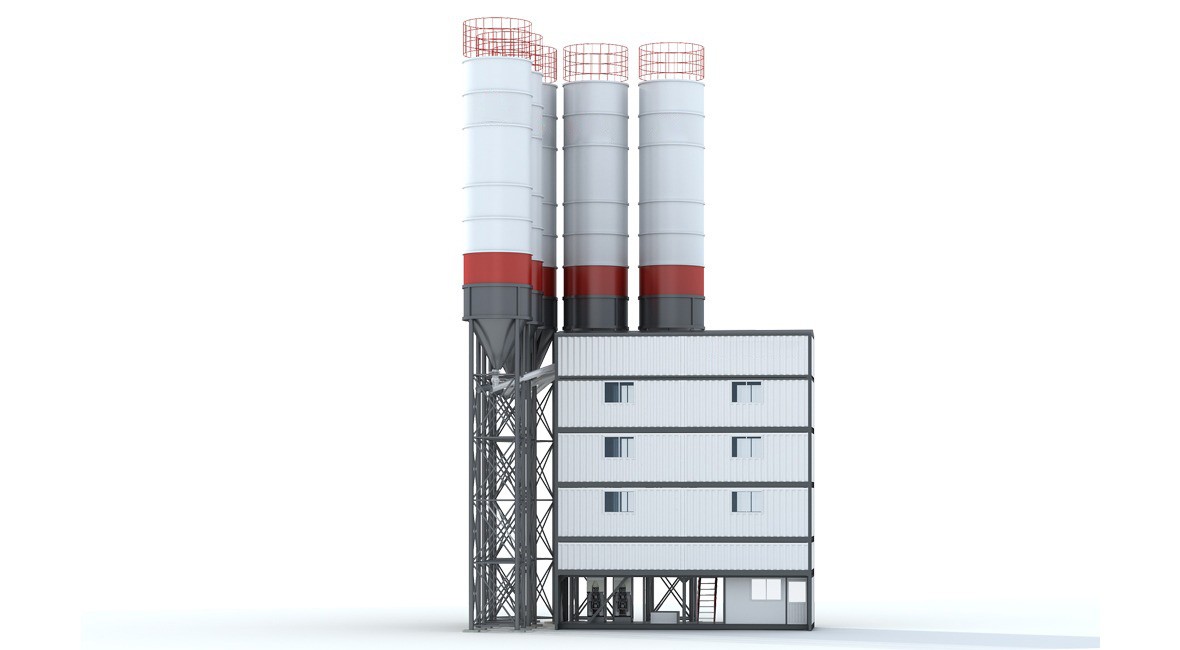

The optimized FBK Series Quick-install Dry Mortar Production Line has upgraded mixing performance, simpler and easier connection, and more reasonable structural layout. At the same time, we can also customize special mortar production lines according to user needs, which is efficient and convenient and widely praised by the market. This equipment is suitable for mixing green building materials production in the fields of ordinary special dry-mix mortar, gypsum mortar, self-leveling, grouting materials and putty powder.
Product Parameters
| Parameter | Unit | FBK600 | FBK1200 | FBK2000 |
| Capacity | t/h | 5-10 | 10-15 | 15-25 |
| Installed power | kW | 240 | 270 | 300 |
| Occupied space (L×W×H) | m | 22*22*24 | 22*22*27 | 22*22*30 |
Product Details
| Product Overview |
| The optimized FBK Series Quick-install Dry Mortar Production Line has upgraded mixing performance, simpler and easier connection, and more reasonable structural layout. At the same time, we can also customize special mortar production lines according to user needs, which is efficient and convenient and widely praised by the market. This equipment is suitable for mixing green building materials production in the fields of ordinary special dry-mix mortar, gypsum mortar, self-leveling, grouting materials and putty powder. |
| Product Characteristics |
| 1. Quick installation, quick production, shortening the factory construction cycle. |
| 2. Reasonable layout, convenient and fast connection mode. |
| 3. Accurate weighing, excellent mixing performance, intelligent dual-computer and dual-control. |
| 4. Automatic packaging and bagging, clean and environmental protection dust collection solution. |
| Introduction To Original Function Modules | |

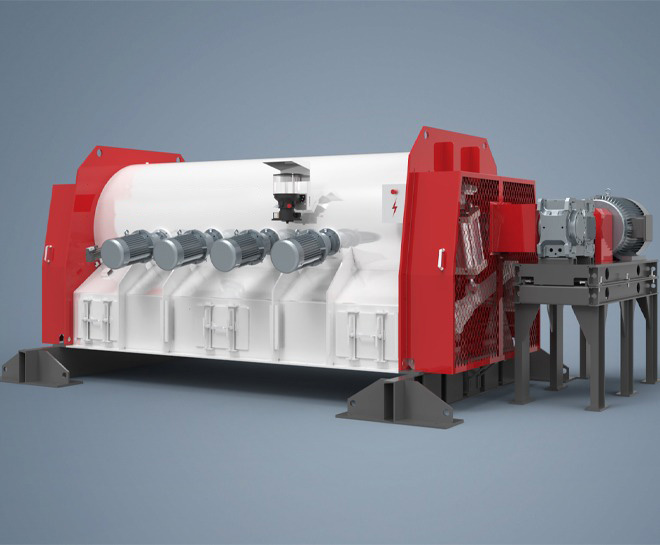

| 1. Mixing system The plough mixing device, high efficiency, good homogeneity, mixing ratiocan reach 1:10,000. Frequency conversion mixing can reduce energy efficiency by 25% compared with conventional fixed speed. The blade and mixing arm are made of wear-resistant alloy cast iron and tungsten carbide wear-resistant layer. |  |

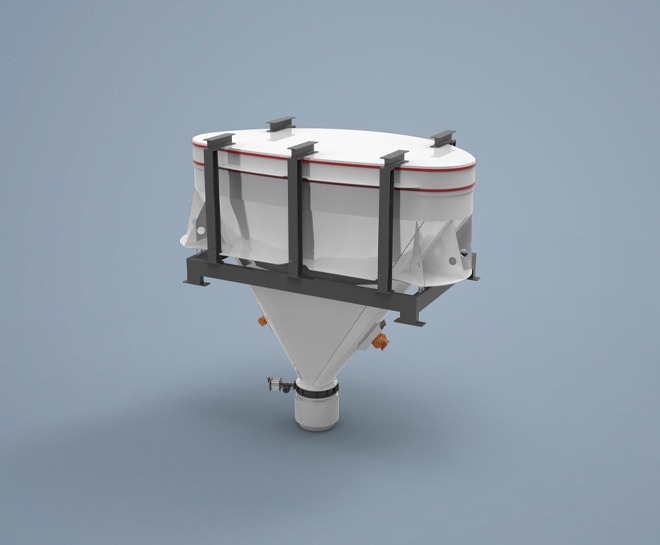

| 2. Weighing system Accurate frequency conversion feeding, accurate ingredients, stable and reliable. Unique scale structure, large angle without dead corners, quick and clean unloading. double valve design at the scale outlet to prevent airflow interference from the mixer. The admixture scale has multiple levels available to match different measurement accuracy requirements. |  |

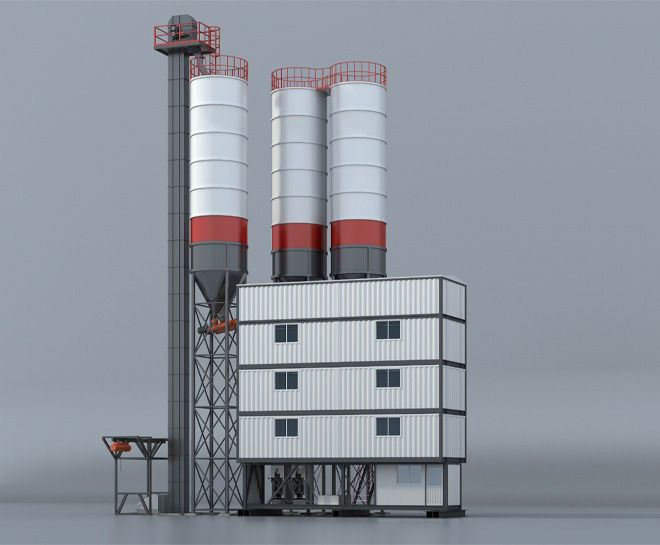

| 3. Container-based integrated design The layout is compact and reasonable, and the connection and installation are convenient and fast. The factory construction period is short, to meet the requirements of rapid production. |  |
