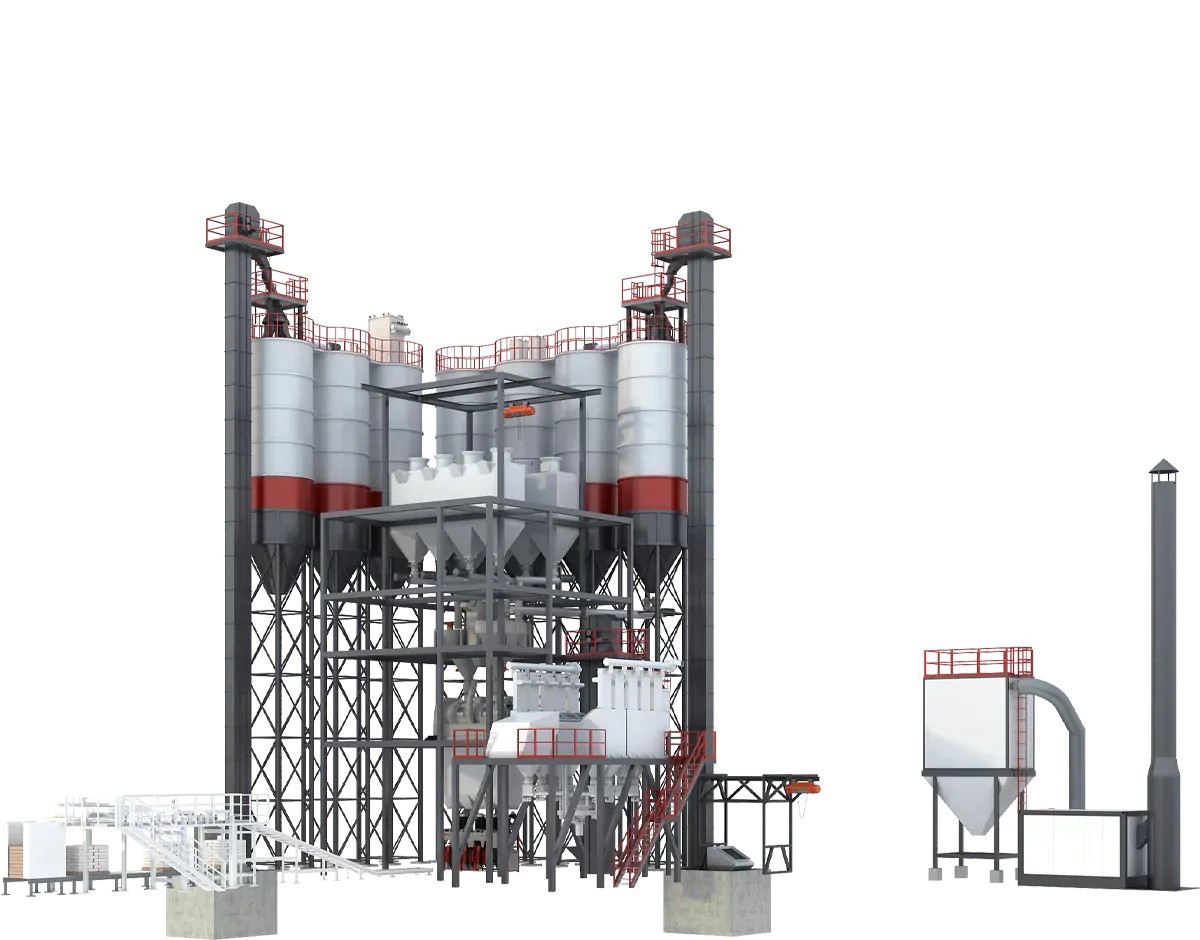

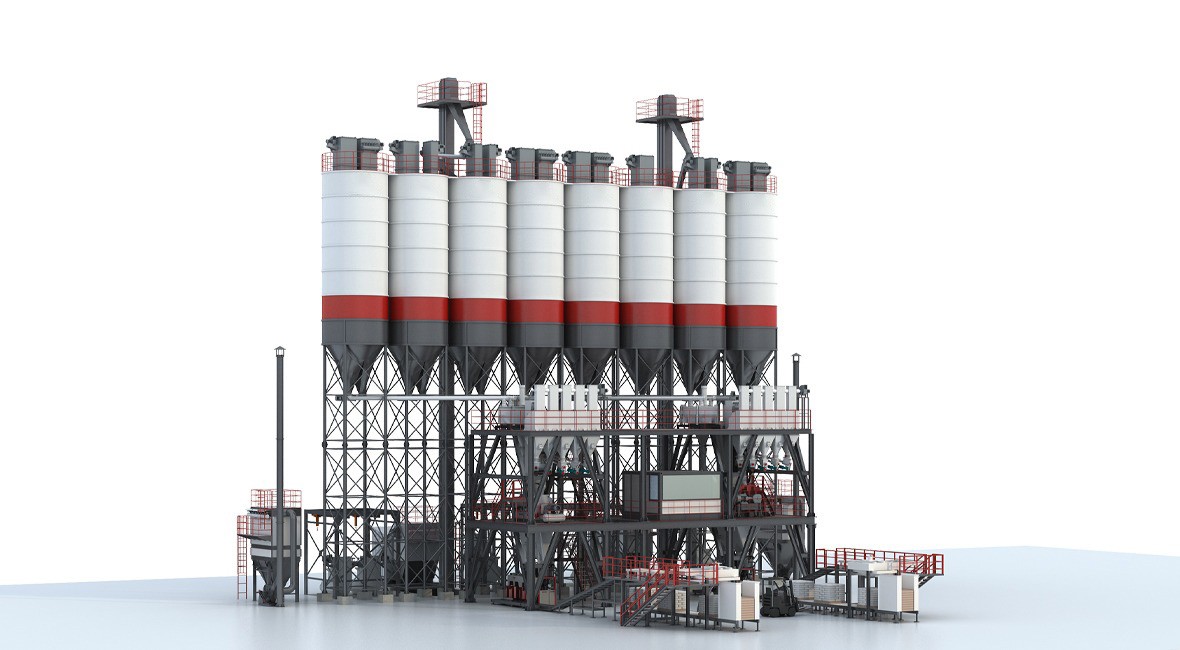

KLSFA workshop type dry mortar mixing plant is generally used for special mortar production, the main equipment is placed in the workshop plant, and its raw material feeding method and storage system will change with the user's product demand and plant conditions. Generally speaking, the overall process of the equipment is relatively simple, the layout is flexible, and its output is small. It produces more products with a single component, and the initial investment cost is relatively low.
Product Parameters
| Parameter | Unit | FBC600 | FBC1200 | FBC2000 | FBC3000 | FBC4500 |
| Capacity | t/h | 5-10 | 10-15 | 15-25 | 25-35 | 35-50 |
| Installed power | kW | >220 | >250 | >280 | >340 | >400 |
| Occupied space (L×W×H) | m | 18*14*22 | 18*15*24 | 21*16*28 | 22*16*31 | 26*16*33 |
Product Details
| Product Overview |
| KLSFA workshop type dry mortar mixing plant is generally used for special mortar production, the main equipment is placed in the workshop plant, and its raw material feeding method and storage system will change with the user's product demand and plant conditions. Generally speaking, the overall process of the equipment is relatively simple, the layout is flexible, and its output is small. It produces more products with a single component, and the initial investment cost is relatively low. |
| Product Characteristics |
| 1. Generally used for special mortar, equipment placed in the workshop plant. |
| 2. Multiple combinations are possible, with rich products and low investment cost. |
| 3. The configuration of raw material silo is flexible and diversified, and the overall height is low. |
| 4. The overall process of the equipment is relatively simple, flexible and mobile layout. |
| Introduction To Original Function Modules | |
| 1. Mixing system Plough mixing device, high efficiency, good homogeneity, mixing ratio up to 1:10,000. Variable frequency mixing, up to 25% less energy efficient than normal speeds. Blades and mixing arms are made of wear-resistant alloy cast iron and tungsten carbide. |  |
| 2. Weighing system Precise frequency conversion feeding, accurate dosing, stable and reliable. Unique scale structure, large angle without dead corners, unloading quickly and cleanly scale. Outlet double valve design, to prevent the mixer air flow interference. Additive scales are available in a variety of positions to match different metrological accuracy requirements. |  |

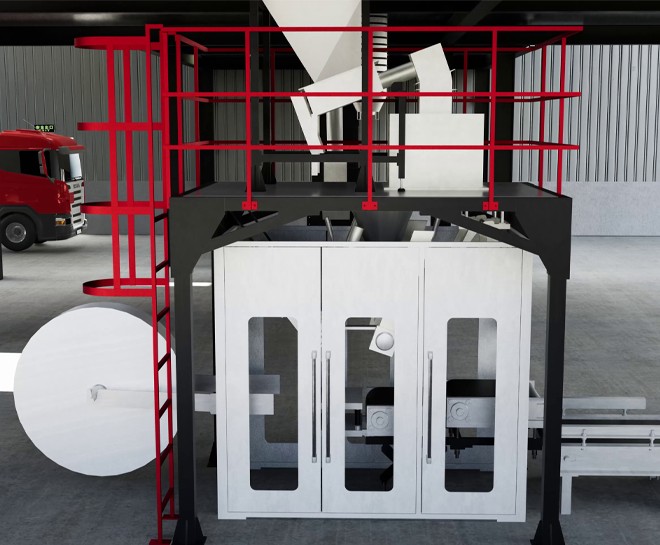

| 3. Packaging system A complete set of automatic packaging, palletizing and packing line designed to meet the needs of large-scale users of special mortarproduction. Configuration of air valve type valve port, impeller valve port, tonnage bags to meet the different needs of mortar packaging in a variety of combinations. |  |
