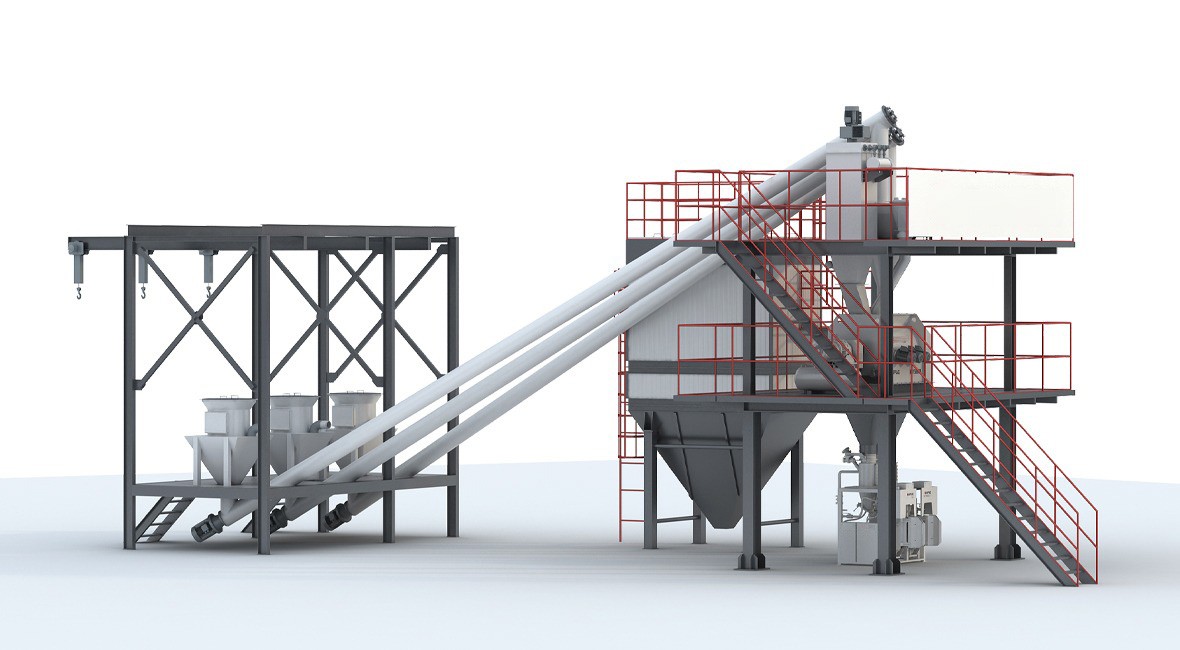

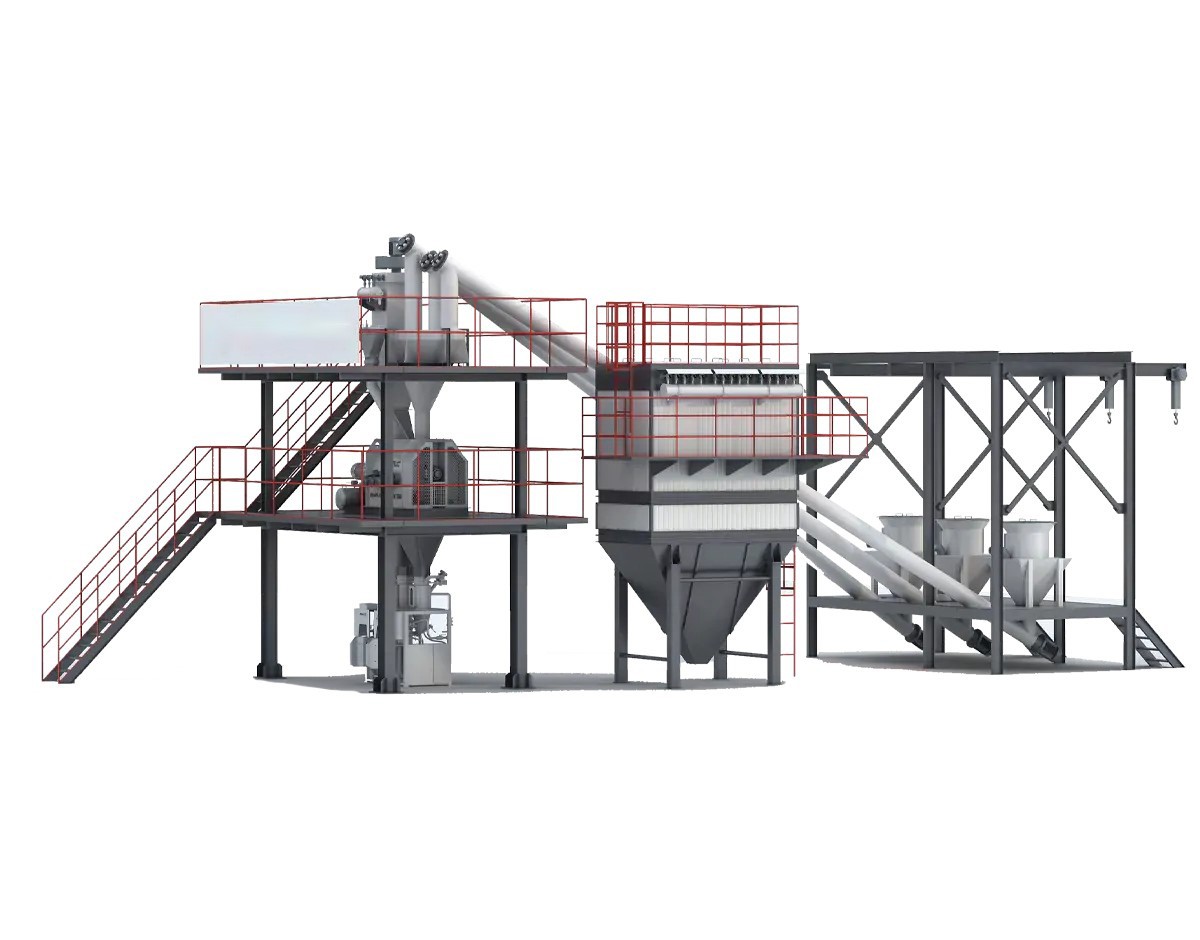

FBE Series Economic Dry Mortar Mixing Plant

KLSFA's FBE Series Economic Dry Mortar Mixing Plant, this series of production line has no big storage silo, and the complete set of equipment can be placed in the workshop, which is suitable for the production of special mortar with small output, low cost and high efficiency. Modular design, coupled with the advantages of low equipment height and small load, makes the initial construction time short, and can be quickly put into production to generate benefits for customers.

Product Parameters

Parameter	Unit	FBE600	FBE1200
Capacity	t/h	5-10	10-15
Installed power	kW	95	130
Occupied space (L×W×H)	m	25910	27911

Product Details

Product Overview　

Product Characteristics

1. Small investment and short installation period.

2. Low equipment height, suitable for conventional plant installation.

3. Perfect dust removal design, green and environmental protection.

4. Diverse configurations and flexible expansion.

Introduction To Original Function Modules
1. Mixing system Plough mixing device, high efficiency, good homogeneity, mixing ratio up to 1:10,000. Variable frequency mixing, up to 25% less energy efficient than normal speeds. Blades and mixing arms are made of wear-resistant alloy cast iron with tungsten carbide wear-resistant layer.
2. Weighing system Precise frequency conversion feeding, accurate dosing, stable and reliable. Unique weighing structure, large angle without dead corners, rapid and clean discharge. Scale outlet double valve design, to prevent the mixer airflow interference. Additive scales are available in a variety of positions to match different measurement accuracy requirements.
3. Packaging system Complete sets of automatic packaging palletizing and packing lines designed to meet the needs of large-scale users of special mortar production. Equipped with various combinations of air valve type valve ports, impeller type valve ports, and ton bags to meet different mortar packaging needs.
