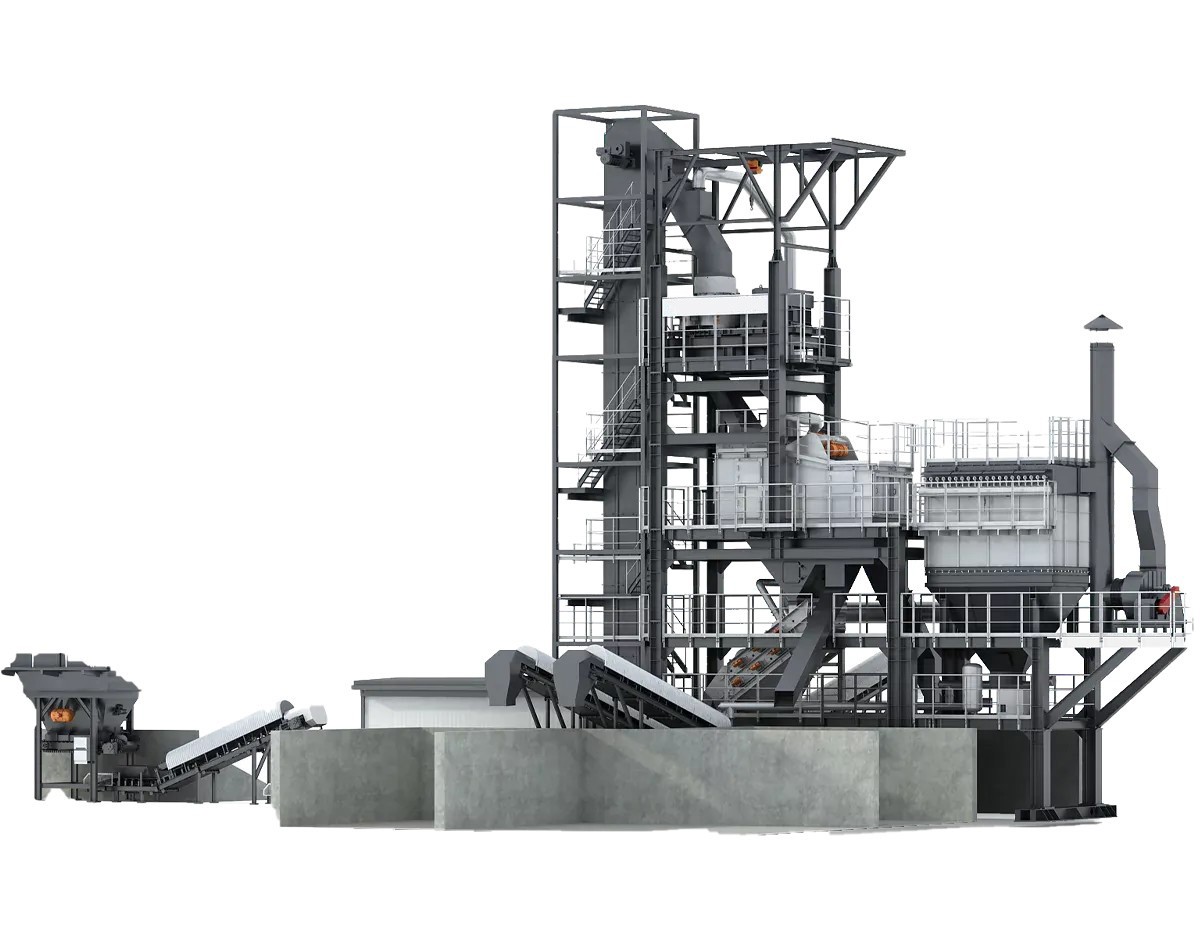

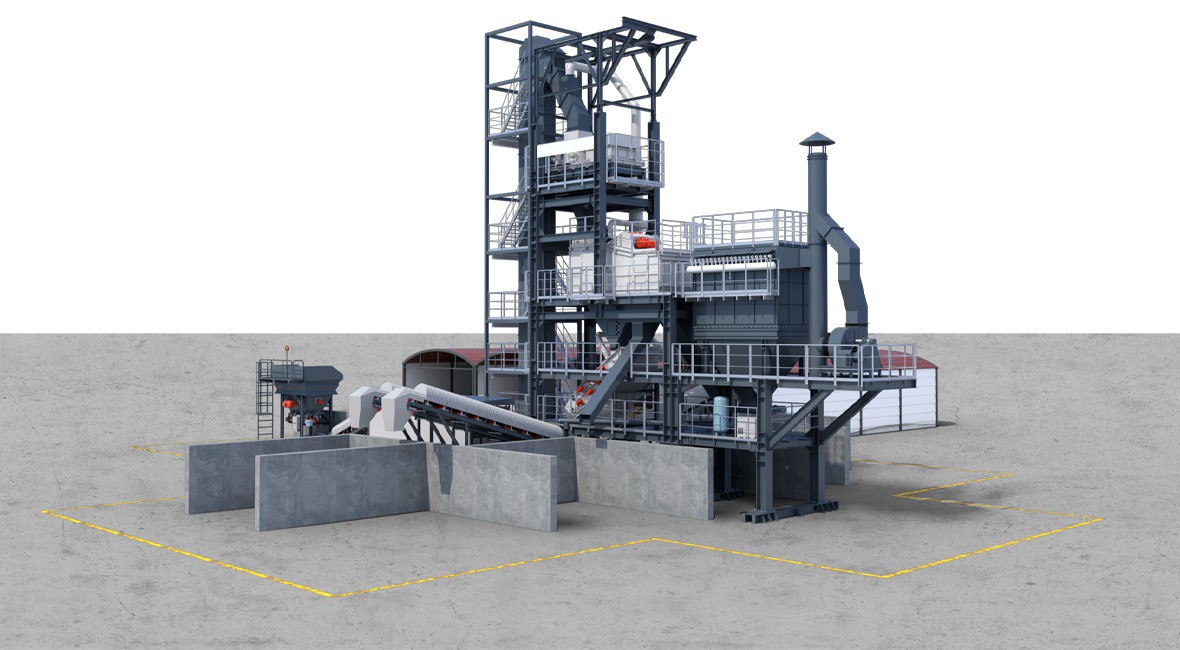

RAPR Series RAP Fine Stripping and Screening Aggregate Recycling Plant

Asphalt pavement material recycling application technology has been widely used in China, but the application method is relatively crude. In most applications, coarse and fine recycled aggregates are simply screened out without further refined separation. To a certain extent, this method reduces the application proportion of recycled materials and reduces the performance of asphalt recycled pavement.
KLSFA has launched RAP Fine Stripping and Screening Aggregate Recycling Plant, which uses physical methods to effectively separate old asphalt and old aggregates in RAP to achieve accurate binning management of RAP, greatly reduce the phenomenon of false particle size and variability of RAP materials, and effectively solve the key issues that restrict the dosage and performance of RAP, and truly make the best use of all.

Product Parameters

Parameter	Unit	RAPR120
Capacity(moisture content≤2%)	t/h	120
Feed opening	mm	≤40
Crusher type	/	RSP Separate plant
Dust removal area	m²	240
Installed power	KW	370
Product size	mm	0-3
		3-5
		5-10
		10-16
		16-25

Product Details

Product Overview　

KLSFA has launched RAP Fine Stripping and Screening Aggregate Recycling Plant, which uses physical methods to effectively separate old asphalt and old aggregates in RAP to achieve accurate binning management of RAP, greatly reduce the phenomenon of false particle size and variability of RAP materials, and effectively solve the key issues that restrict the dosage and performance of RAP, and truly make the best use of all.

Product Characteristics

1. Effective separation of old asphalt/ old aggregate.

2. Effectively break up agglomerated materials. Eliminate false particles in RAP.

3. Centralized dust removal system. Obtain recycled powder with high asphalt content.

4. Ensure high quality asphalt mixture.

Introduction To Original Function Modules

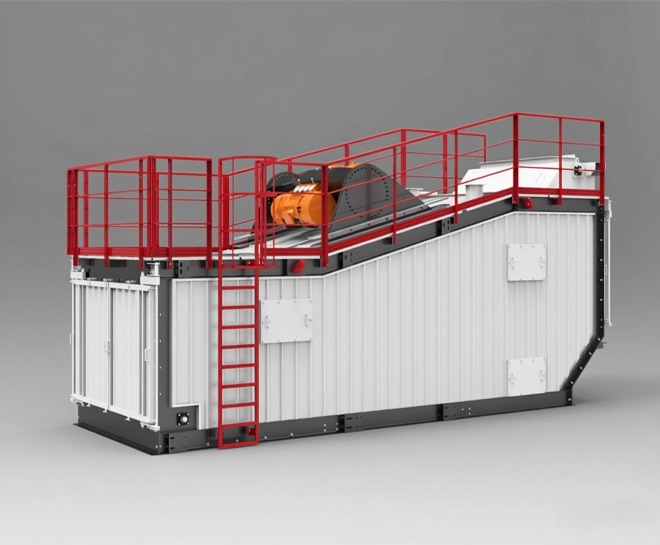

1. Primary vibrating screen Direct motor drive, high efficiency, maintenance-free and long life cycle. Screening efficiency >95%, screen mesh tension can be identified, easy to operate.

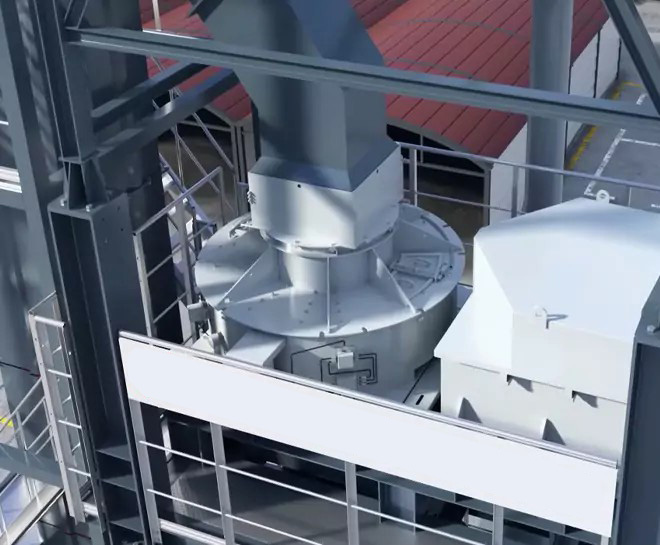

2. Separation device Effectively separate old asphalt and old aggregate in RAP through physical separation method. Fewer wear parts, long-lasting wear resistance, and ideal stripping effect.

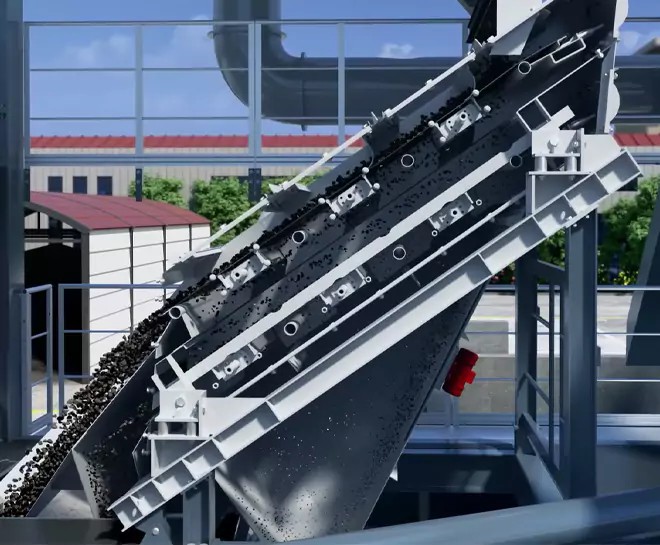

3. Secondary high frequency screen Ideal and efficient on fine materials screening below 5mm. Effectively solves the problem of screen clogging during the RAP fine material screening with self-cleaning feature.

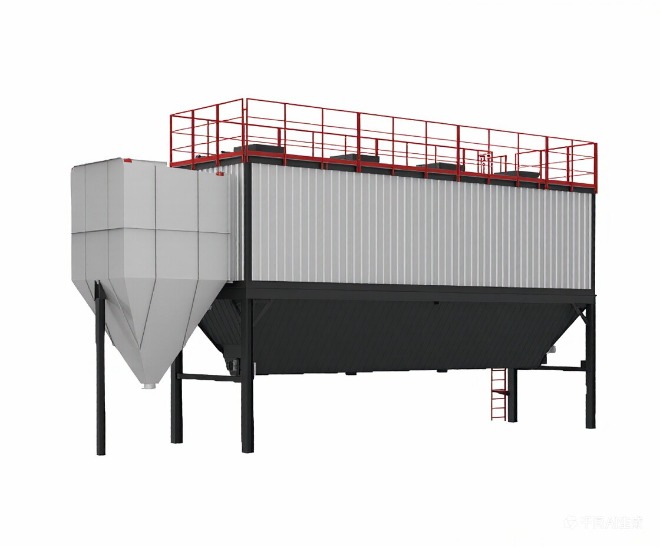

4. Separation system Centralized dust removal system, environmentally friendly equipment, ensures flying dust-free. Recycled powder will be conveyed to the 0-3mm grade material areathrough the screw conveyor.
