LBPS Series Asphalt Concrete Recycling Material Screening Plant

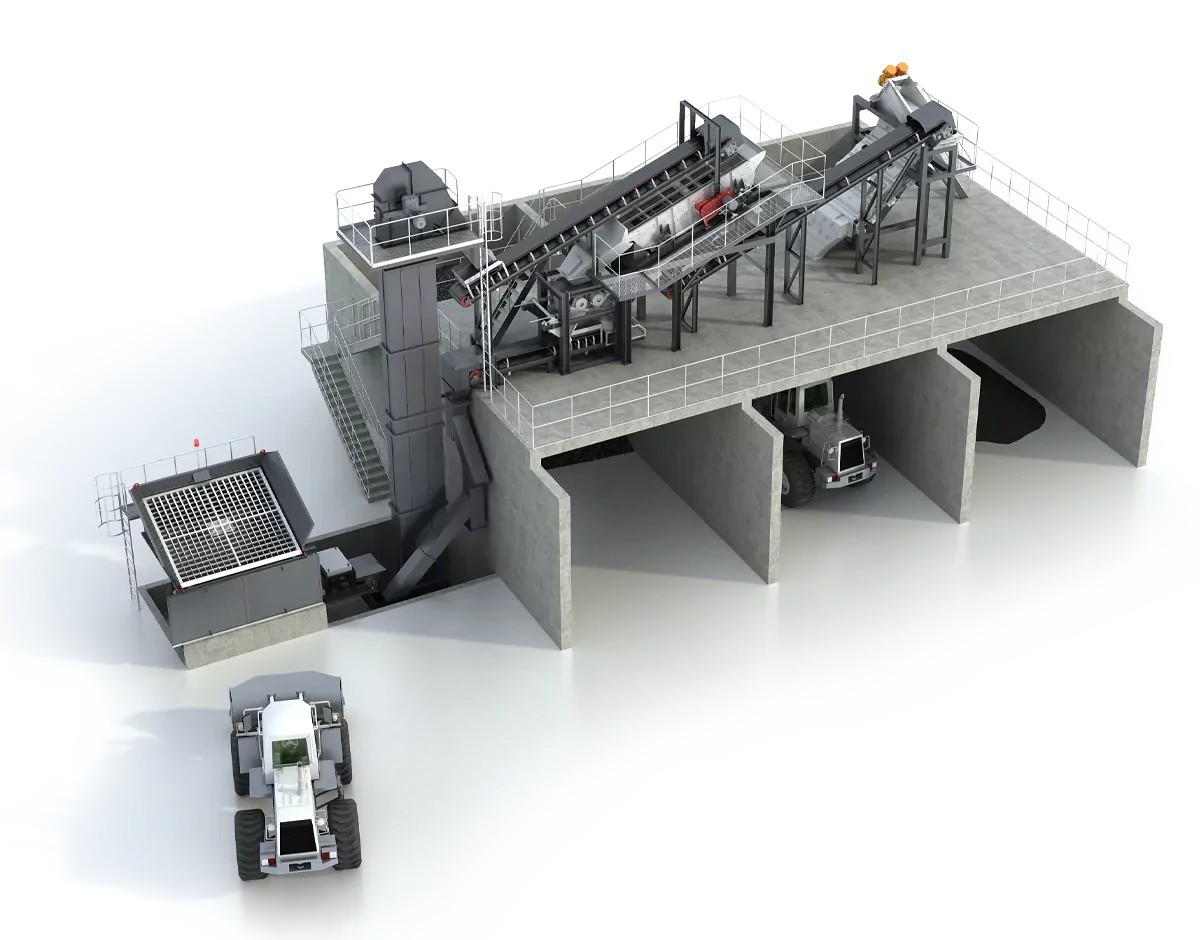

KLSFA LBPS Series Asphalt Concrete Recycling Material Screening Plant is mainly composed of recycling hopper, feeding belt conveyor, vibration screening equipment, finished material conveying belt conveyor, crusher, return belt conveyor and control system. The old materials are loaded into the recycling hopper by the loader and transported to the screening system by the feeding belt. The qualified finished materials are transported to the stockyard through the finished material belt conveyor for use. The agglomerated materials >31.5mm are screened out and sent back to the screen after crushing. The final unqualified materials are discharged from the manual discharge port.

Product Parameters

Parameter	Unit	LBPS120A	LBPS120B	LBPS120C
Capacity (moisture content ≤ 3%)	t/h	120	120	120
Feed opening	mm	≤50	≤50	≤50
Crusher throughput	t/h	30	30	30
Installed power	KW	≈60	≈70	≈70
Product size	mm	0~13mm 13~26.5mm	0~5mm 5~13mm 13~25mm	0~8mm 8~15mm 15~25mm

Product Details

Product Overview　

Product Characteristics

1. Adopt fully automatic control system, which is simple to control and easy to operate.

2. The primary screening process is equipped with crusher to recycle material to ensure that all recycled materials are utilized.

3. Using high-frequency multi-motor screen, it can screen out the most economically valuable particles below 5mm.

4. Continuous work with high output.

Introduction To Original Function Modules

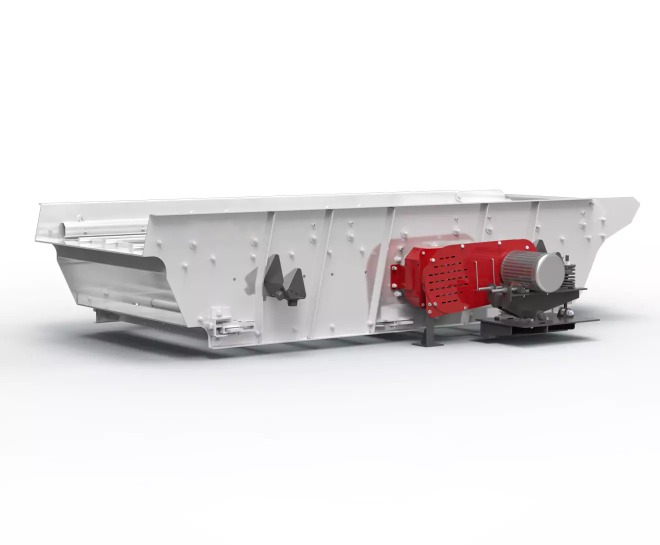

1. Circular vibrating screen Double-bearing eccentric block circular vibrating screen, especially suitable for screening sticky asphalt materials.
2. Hammer crusher The function of breaking up agglomerated super-sized materials solves the problem of thermal adhesion during the crushing process of asphalt concrete recycled materials.

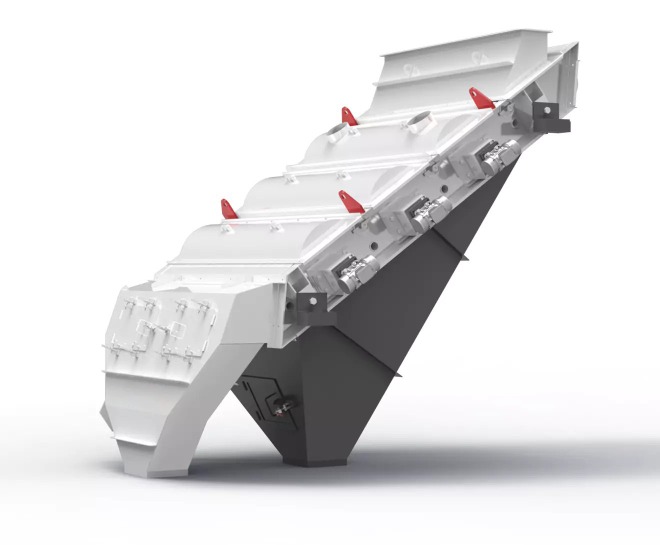

3. Multi-motor probability screen The screening efficiency is high and the screening effect on fine materials is ideal. It can produce fine materials below O-5mm.

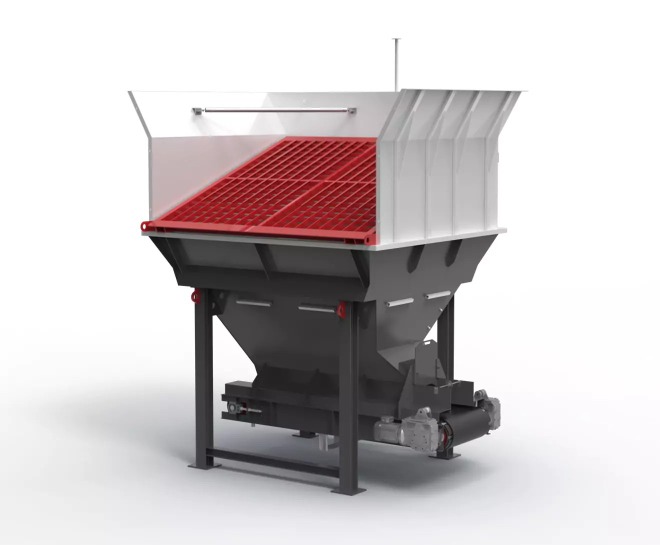

4. Recycled bin The speed of the belt can be adjusted to match the opening of the cold material bin discharge door to control the material flow.
